Plastic HDPE Dimple Waterproof Drainage Board With Good Price

Plastic HDPE Dimple Waterproof Drainage Board With Good Price photo-1
Plastic HDPE Dimple Waterproof Drainage Board With Good Price photo-2
Plastic HDPE Dimple Waterproof Drainage Board With Good Price photo-3
Plastic HDPE Dimple Waterproof Drainage Board With Good Price photo-4

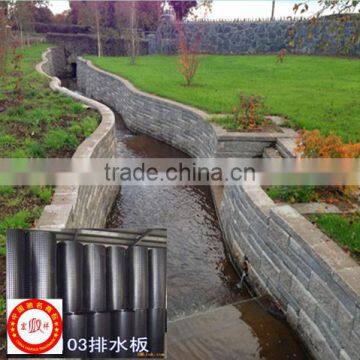

Plastic HDPE Dimple Waterproof Drainage Board With Good Price photo-5
Plastic HDPE Dimple Waterproof Drainage Board With Good Price photo-6
US$ 1.2 - 4.8 MOQ: 1000 Square Meters
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
Hongxiang
Model Number:
HX-0.8
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Shandong, China
Brand Name Hongxiang
Model Number HX-0.8
Product Description

HDPE Dimple waterproof drainage board with good price

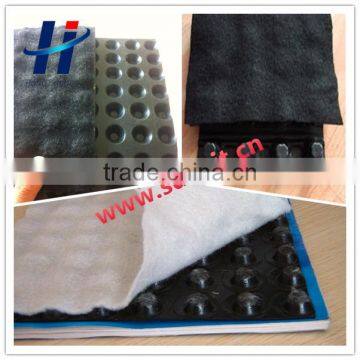

Hong Xiang ® dimple drainage board is a kind of 3-D drainage board with dimples on the surface, The dimples can be in cylinder and semi-cone shape, It could also be coated by non woven geotextile, The liquid and gas can go through freely between dimples.

Advantage:
It is made of high impact resistance and high pressure resistance HDPE, which could resist long term high pressure not easy destroyed

Specification

HDPE Dimple waterproof drainage board with good price

Sheet material could be EVA or PE etc, composite layer is non woven geotexitle, length could be made accoding to client's request.
Property:
1. Waterproofing and drainage: from a channel, which water and gas can go through
2. Sound insulation and vibration isolation
3. Chemical resistance, resist to plant's root
4. Easy for construction
5. Long lifetime

Num.
Item Name
Specification
1
HDPE Average Thickness (mm)≥
0.5
0.7
0.8
1.0
1.0
1.0
2.0
2
Weight (g/m2)
500
700
800
1000
1000
1000
2000
3
Sheet Thickness (mm)
8
8
12
12
16
20
20
4
Standard Packing Roll (Width x Length m )
3X20
3X15
3X15
3X15
3X15
3X15
3X15
5
Tensile strength (N/5cm)
250
350
350
450
450
450
/
6
Compressive Load (Kpa0
200
300
300
300
300
300
350
7
Elongation at Crack (%)
25
25
30
40
40
40

8
Longitudinal Flow Capacity(cm3/cm s)
5.6
5.6
7.2
7.2
10
12.5
21.5
9
Puncture Strength (N)
300
320
350
400
400
400
/
Packing & Delivery

HDPE Dimple waterproof drainage board with good price

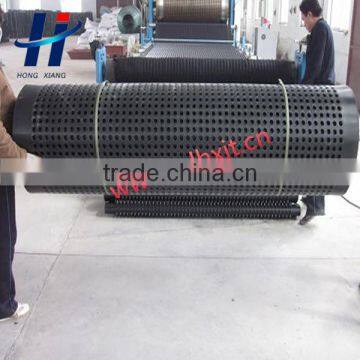

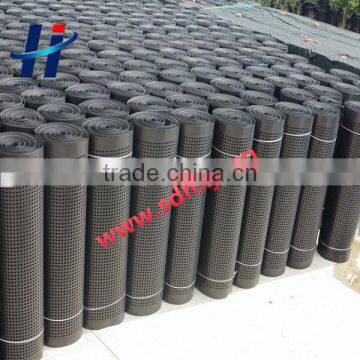

1.Roll size:2m *30m/roll, or 1*1.5m/ pcs as cilent's request.
2.Package: white or black fabric, while or balck PE film , or special package as as cilent's request.

Application

HDPE Dimple waterproof drainage board with good price

It is better than traditional stone drainage and other filter layer.It can be widely used in the area of retaining wall,basement,tunnels,safe slope and the base of highway and roof garden green.
1.Highway and railway waterproofing system;
2.Underground waterproofing and heat preservation;
3.Roof garden waterproofing projects.
4. Retaining wall
5. Tunnels

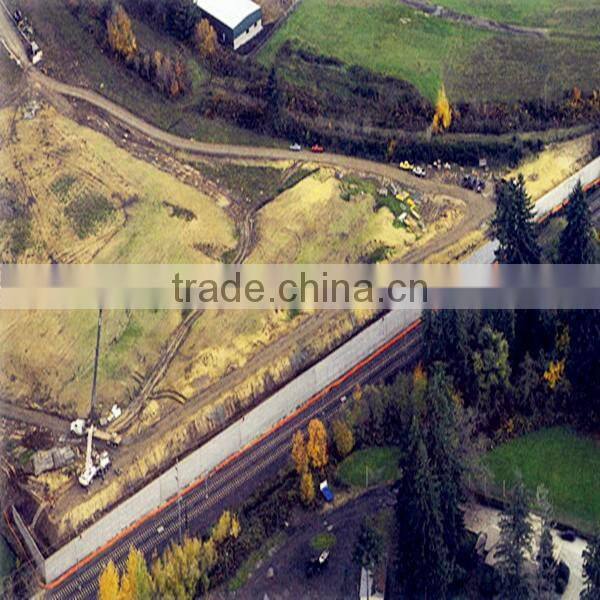

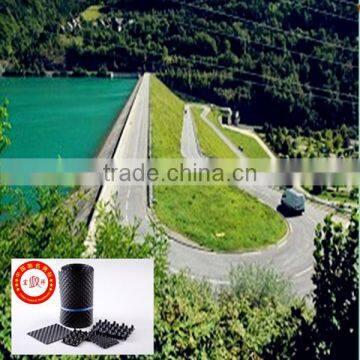

Used for Highway and railway waterproofing system

Used for Underground waterproofing and heat preservation;

Used for Roof garden waterproofing projects.

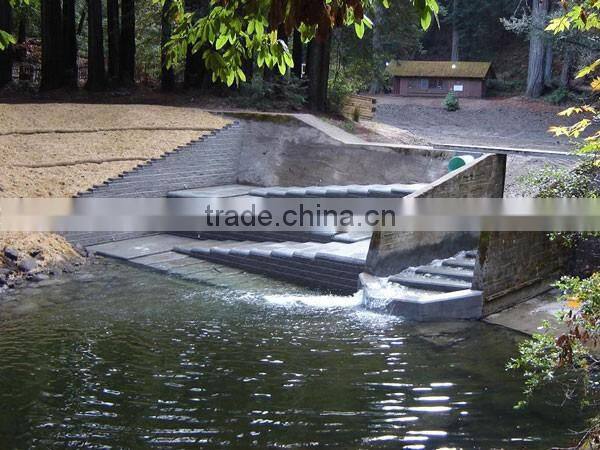

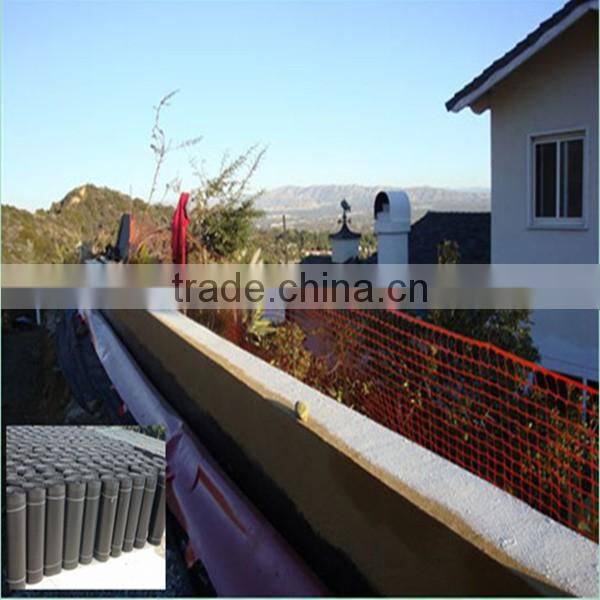

Used for Retaining wall

Used for Tunnels

Our Service

We are a high -new technology enterprise which mainly produce and deal with Geo synthetics product. You are welcomed to our factory any time .
We ensure provide the best quality and short delivery time for costumers .
We have professional service team.
Our excellent team would be very happy to work with you and offer suggestions,product applications, and design assistance

Our Company

HongXiang New Geo-Material Co., LTD. is the professional and leading enterprise in the geosynthetics.Formerly known as Shandong HongXiang Chemical Fiber Group Co., LTD., which was established in June 1987.

The equipment of HongXiang New Geo-Material Co., LTD. are mainly imported from Germany, Italy, Canada, France and other well-known domestic enterprises, it has one full set of precise testing instrument, testing equipment and quality inspection team, technology Research & Development team.

HONGXIANG products are widely used in national key engineering fields, such as water conservancy, railway, subway, highway, landfill, anti-seepage, construction industry, mining industry, agriculture, ecological greening system, etc. engineering fields, and exported to United States, Russia, Pakistan, Thailand, Tanzania, Australia, South Africa, Zambia, United Arab Emirates etc. more than 30 countries and regions.
