HDPE Dimple Drainage Borad With Geotextile Waterproofing for Roof Garden

HDPE Dimple Drainage Borad With Geotextile Waterproofing for Roof Garden photo-1
HDPE Dimple Drainage Borad With Geotextile Waterproofing for Roof Garden photo-2
HDPE Dimple Drainage Borad With Geotextile Waterproofing for Roof Garden photo-3
HDPE Dimple Drainage Borad With Geotextile Waterproofing for Roof Garden photo-4
HDPE Dimple Drainage Borad With Geotextile Waterproofing for Roof Garden photo-5
US$ 1.89 - 2.6 MOQ: 1000 Square Meters
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
Hongxiang
Model Number:
hx-10
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Shandong, China
Brand Name Hongxiang
Model Number hx-10
Product Description
HDPE Dimple Drainage Borad with geotextile Waterproofing for Roof Garden

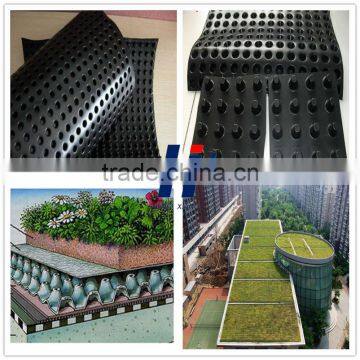

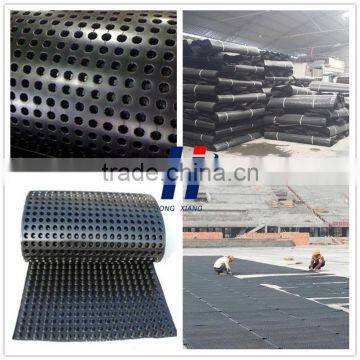

Hong Xiang ® dimple drainage board is a kind of 3-D drainage board with dimples on the surface, The dimples can be in cylinder and semi-cone shape, It could also be coated by non woven geotextile, The liquid and gas can go through freely between dimples.

Advantage:
It is made of high impact resistance and high pressure resistance HDPE, which could resist long term high pressure not easy destroyed

Detailed Images

Sheet material could be EVA or PE etc, composite layer is non woven geotexitle, length could be made accoding to client's request.

HONGXIANG composite dimple specifications
Num.


Item Name

Specification
HX-H10-1.0
HX-H20-1.0
HX-H10-1.0
HX-H20-1.5
HX-H10-2.0
HX-H20-2.0
1
Tensile strength (N/5cm)≥
400
400
500
500
700
700
2
 Three-dimensional Tensil strength (Kpa)≥
400
320
450
370
500
420
3
Elongation at Crack (%)≥
200
200
300
300
400
400
4
Dimensional stability %

±2

5
Foldability at Low Temperature

-35℃  bend flawless

6
Longitudinal Flow Capacity(cm3/cm s)(hydraulic pressure5KPa)
5.6
8.6
5.6
8.6
5.6
8.6
7
Longitudinal Flow Capacity(cm3/cm s)(hydraulic pressure350KPa)
15.2
18.2
15.2
18.2
15.2
18.2
Packing & Delivery

HDPE Dimple Drainage Borad with geotextile Waterproofing for Roof Garden

Product Applications

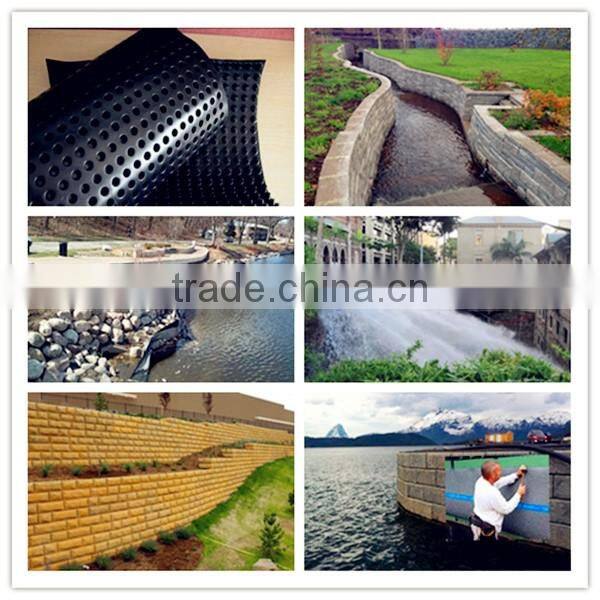

Our products have success used in many projects, including :
>Highway and railway waterproofing system;
>Underground waterproofing;
>Roof garden waterproofing projects ;
>Retaining wall, basement, tunnels and slope protection projects.

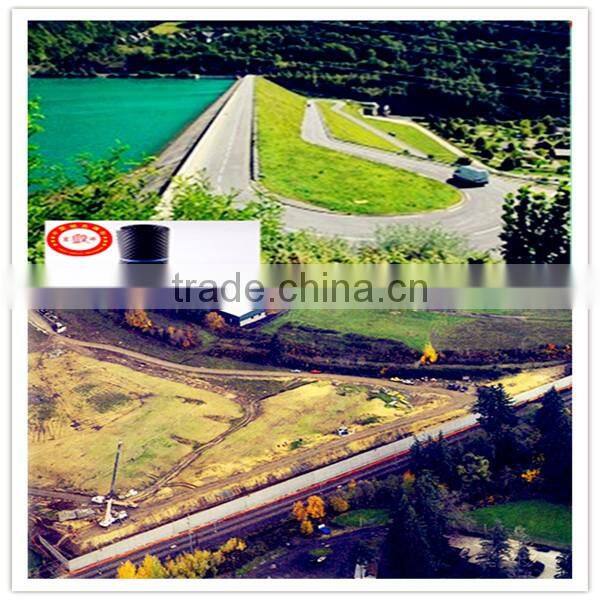

1.Used in Highway and railway waterproofing system

2.Used in Underground waterproofing;

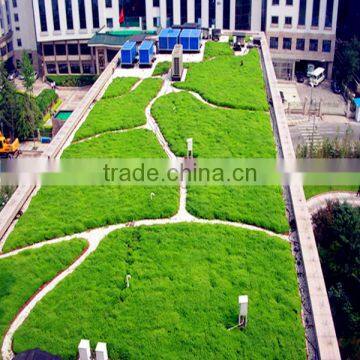

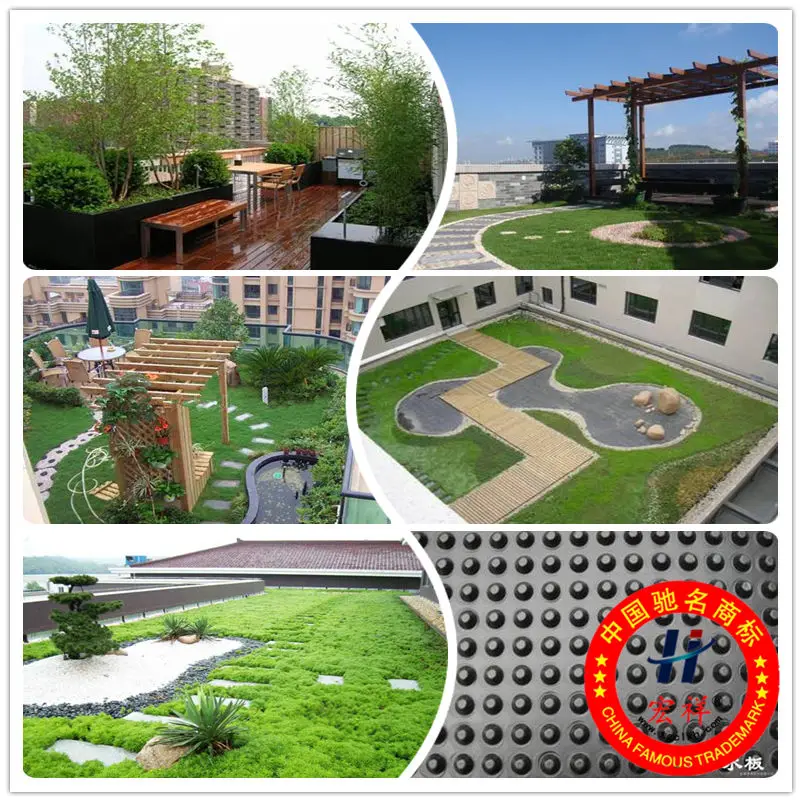

3. Roof garden waterproofing projects ;

4.Retaining wall, basement, tunnels and slope protection projects

Our Service

We are a high -new technology enterprise which mainly produce and deal with Geo synthetics product. You are welcomed to our factory any time .
We ensure provide the best quality and short delivery time for costumers .
We have professional service team.
Our excellent team would be very happy to work with you and offer suggestions,product applications, and design assistance.

Certifications
Our Company

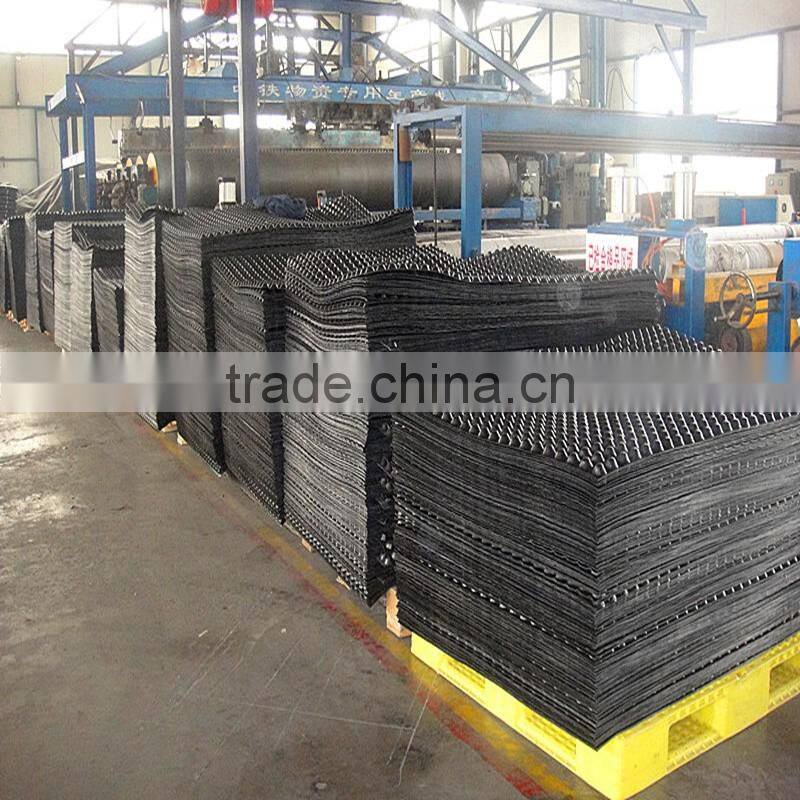

HongXiang New Geo-Material Co., LTD. is the professional and leading enterprise in the geosynthetics.Formerly known as Shandong HongXiang Chemical Fiber Group Co., LTD., which was established in June 1987.

The equipment of HongXiang New Geo-Material Co., LTD. are mainly imported from Germany, Italy, Canada, France and other well-known domestic enterprises, it has one full set of precise testing instrument, testing equipment and quality inspection team, technology Research & Development team.

HONGXIANG products are widely used in national key engineering fields, such as water conservancy, railway, subway, highway, landfill, anti-seepage, construction industry, mining industry, agriculture, ecological greening system, etc. engineering fields, and exported to United States, Russia, Pakistan, Thailand, Tanzania, Australia, South Africa, Zambia, United Arab Emirates etc. more than 20 countries and regions.

Contact us

FAQ

1. How about the delivery time?

Lead time since receipt of 30% T/T deposit payment: 3 weeks.

2. What kind of payments does we support?

T/T, L/C, Cash are accepted.

3. What's are the MOQ?

We can according to your condition to set the MOQ.

And we can provide you samples for quality inspection.

4. How to deal with the sample charge?

Accordeing to our company policy, the samples are free, we only charge the freight fee.

And we will return the freight fee If you set the order .

5. Can you produce the product according to customers' requirements ?

Sure, we are professional manufacturer, OEM and ODM are both welcome.

6. Can you tell me your main customers?

That's our customers' privacy, we should protect their information.

At the same time, please rest assured that your information is also safe here.
