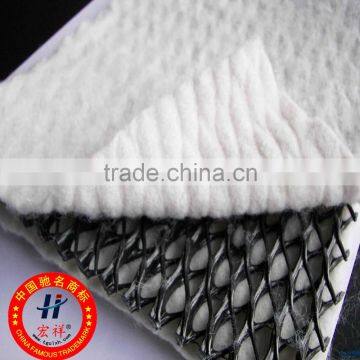

It is a new type drainage material . With HDPE as raw material, formed by the special extrusion processing, with three layer of special structures. Middle rod rigidity is large, arrange vertically and horizontally, form drainage channel, The rods which cross banding form drainage channel to support and prevent the embed of geotextile,Even at very high loads, it can maintain high drainage performance. Tri-dimension composite geo net has structure of three -dimensional space and Stereo guide line, use high performance geotextile to composite, at very high loads, it can also keep long-term leading out performance, used in the main filter liquid guide line layer, and timely eliminate inpervious membrane of leachate, making water head is less than the thickness of geo drainage material , reduce geomembrane leakage due to the large head.
SPECIFICATION::
1,Thickness:5mm~7.6mm, width :2m~4m,length :at request.
2,Compound fabric is 200g/m2 short fiber PET geotextile , 200g/m2 filament PET geotextile, 200g/m2high Strength PP short fiber geotextile
CHARACTERISTIC:
Drainage ability strong, can withstand the high load for a long time, high tensile strength and shear strength, reduce the risk of geotextiles embedded into the core, can maintain long-term stability of the hydraulic conductivity, three-dimensional composite drainage network can bear greater than 2000 kpa compression loads, far more than ordinary pressure capacity of the drainage network
FUNCTION:
1.Laid between foundation and subbottom, is used to discharge hydrops between foundation and subbottom ,blocking the capillary water and effwctively combined into the edge drainage system. This structure automatically, shortens the foundation drainage, drainage time significantly shorter, and can make the decrease in the number of the use of material selection of foundation (can be used with more fine material, low permeability of materials). Can prolong the service life of road.
2.In thesubbase laying drainage network that can prevent the subbase fine material into foundation layer. (i.e., plays the role of separation). Aggregate base will be into the upper parts of geonet in a limited degree. In this way, composite drainage net has a potential function which limit the qggreate base lateral movement. In this way, its function is similar to the reforcement effect of geogrid. In general , composite geo drainage net’s tensile strength and rigidity is better than many used in foundation reinforcement of geogrids, this restriction will improve the supporting ability of the foundation.
3.After road aging, crack formation, most of the rain will enter the sections. In this case, the drainage network direct laid in the pavement, instead of the drainage of foundation. Before the water into the foundation / subbase, drainage can be the first collection. And can also be a layer of geomembrane on the drainage network low-end package, prevent mosisture from entering the foundation further,For the rigid road system, this structure allows the drainage coefficient Cd to design road. Another advantage of this structure is likely to make concrete more evenly hydrated(degree of this structure of the ongoing). Whether rigid road or soft road , this structure can prolong the service life of the road.
Application:
1,Landfill site drainage
2,Highway roadbed and road surface drainage
3,Railway drainage
4,Tunnel and underground structure drainage
5,Retaining wall back drainage
6,Garden drainage and stadiums drainage.
