The Landfill Cover Special Double Color HDPE Liner Black and Green Double Color HDPE Geomambrane

The Landfill Cover Special Double Color HDPE Liner Black and Green Double Color HDPE Geomambrane thumbnail-1
The Landfill Cover Special Double Color HDPE Liner Black and Green Double Color HDPE Geomambrane thumbnail-2
The Landfill Cover Special Double Color HDPE Liner Black and Green Double Color HDPE Geomambrane thumbnail-3
The Landfill Cover Special Double Color HDPE Liner Black and Green Double Color HDPE Geomambrane thumbnail-4
The Landfill Cover Special Double Color HDPE Liner Black and Green Double Color HDPE Geomambrane thumbnail-5
The Landfill Cover Special Double Color HDPE Liner Black and Green Double Color HDPE Geomambrane thumbnail-6
The Landfill Cover Special Double Color HDPE Liner Black and Green Double Color HDPE Geomambrane photo-1
The Landfill Cover Special Double Color HDPE Liner Black and Green Double Color HDPE Geomambrane photo-2
The Landfill Cover Special Double Color HDPE Liner Black and Green Double Color HDPE Geomambrane photo-3
The Landfill Cover Special Double Color HDPE Liner Black and Green Double Color HDPE Geomambrane photo-4
The Landfill Cover Special Double Color HDPE Liner Black and Green Double Color HDPE Geomambrane photo-5
The Landfill Cover Special Double Color HDPE Liner Black and Green Double Color HDPE Geomambrane photo-6
US$ 1.17 - 3.7 MOQ: 5000 Square Meters
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
Hongxiang
Model Number:
HXDC-1.2
Contact Supplier Request Quote Chat Now
Hongxiang New Geo-Material Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name Hongxiang
Model Number HXDC-1.2
Material HDPE
Product Description

The landfill cover special double color HDPE liner Black and Green double color HDPE Geomambrane

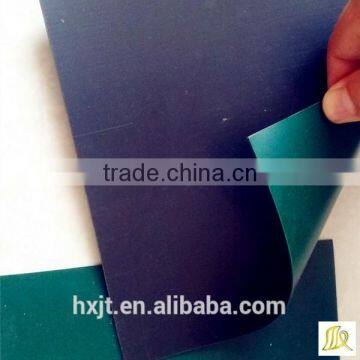

Double color Geomembrane can be used HDPE or LLDPE production of the two sides of the same color can also be different,

Double color HDPE Geomembrane is an excellent product for large applications that require UV and Ozone resistance, chemical resistance or high-quality installations. Typically used in landfill and mining applications, this product is delivered in large rolls with a width of 8m and is heat welded in the field by trained technicians providing a high quality, test certified installation. Double color HDPE Geomembrane offers the most cost effective liner for large projects. Double color HDPE Geomembrane is available in thicknesses ranging from 0.75 to 3mm.

Specification

The landfill special double color HDPE liner Black and Green double color HDPE Geomambrane


Features
1.Low permeability
2.High ultra violet resistance
3.Resistant to wide range of chemicals
4.Economical over large project areas
5.Low puncture resistance than other membranes
6.High coefficient of linear thermal expansion
7.Available in textured finish for increased friction.

NO

  Value
Item(mm)
0.75
1.00
1.25
1.50
2.00
2.5
3.00
1
Density (g/cm2)

0.939
2
Tensile propeties
Yield strength (N/mm)
    11
    15
18
22
29
37
44
Break strength (N/mm)
20
27
33
40
53
67
80
Yield elongation (%)

12
Break elongation (%)

≥450
3
Tear resistance (N)
93
125
156
187
249
311
374
4
Puncture resistance (N)
240
320
400
480
640
800
960
5
Stree crack tensistance (h)

≥1500
6
Carbon black
Carbon black content (%)

2.0-3.0
Carbon black dispersion

Carbon black dispersion   (only near spherical agglomerates)for10 different
views 9 in categories 1   or 2 and 1 in category3.
7
Oxidative induction time(OIT)
Standard OIT(min)

100
High pressure OIT(min)

400
8
Oven aging at 85°C
Standard OIT-% retained after 90 days (%)

55
High pressure OIT-% retained after 90 days (%)

80
9
UV Resistance
Standard OIT retained after 1600 hrs (%)

50
High pressure OITretained after 1600 hrs (%)

50
10
Low tempreture impact brittle property at -70°C

Pass
Packing & Delivery

Packed into roll with pp woven bags

Application

The landfill special double color HDPE liner Black and Green double color HDPE Geomambrane


1.Landfill(primary &secondary containment)

2.Landfill caps/closures
3.Lagoon Liners
4.Mining Heap Leach Pads
5.Pond Liners
6.Agriculture Pond Liners
7.Canal Linings
8.Raw Water treatment reservoirs
9.Potable water reservoirs

Our Service


Double color HDPE geomembrane is a very technical product to install properly. HDPE requires specialized welding equipment and certified welding technicians to be installed properly.
The most common method of securing the liners on side slopes is by means of an anchor trench around the perimeter. A batten strip or an embed channel system is used to attach the liner to structures.

Our Company

Our aim is to help customers realize their goals. We are making great efforts to achieve this win-win situation and sincerely welcome you come and visit our fac. And if we are lucky we can cooperation with each other.For any question, or any further support, pls don't hesitate to contact us.Your early feedback and comments will be highly appreciated.

FAQ

  1. How about the delivery time?
Lead time since receipt of 30% T/T deposit payment: 3 weeks.
2. What kind of payments does we support?
T/T, L/C, Cash are accepted.
3. What's are the MOQ?
We can according to your condition to set the MOQ.
And we can provide you samples for quality inspection.
4. How to deal with the sample charge?
Accordeing to our company policy, the samples are free, we only charge the freight fee.
And we will return the freight fee If you set the order .
5. Can you produce the product according to customers' requirements ?
Sure, we are professional manufacturer, OEM and ODM are both welcome.
6. Can you tell me your main customers?
That's our customers' privacy, we should protect their information.
At the same time, please rest assured that your information is also safe here.
