fireplace grateLMFR-9002

High Efficiency Smoke-Free Fireplace Grate 31" Wide, 15" Tall.
by Grate Wall of Fire
Eliminates fireplace smoke problems and increases fireplace heat output.
Recommended by countless masons and chimney sweeps from coast to coast.
Tens of thousands of units have been sold across the U.S.A.

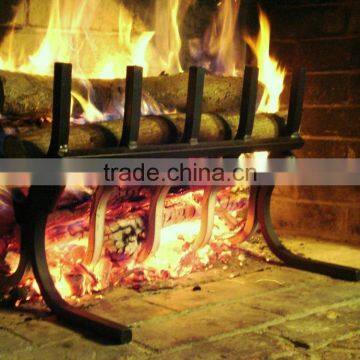

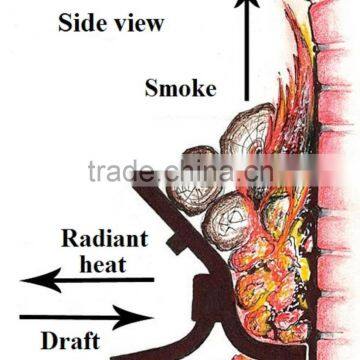

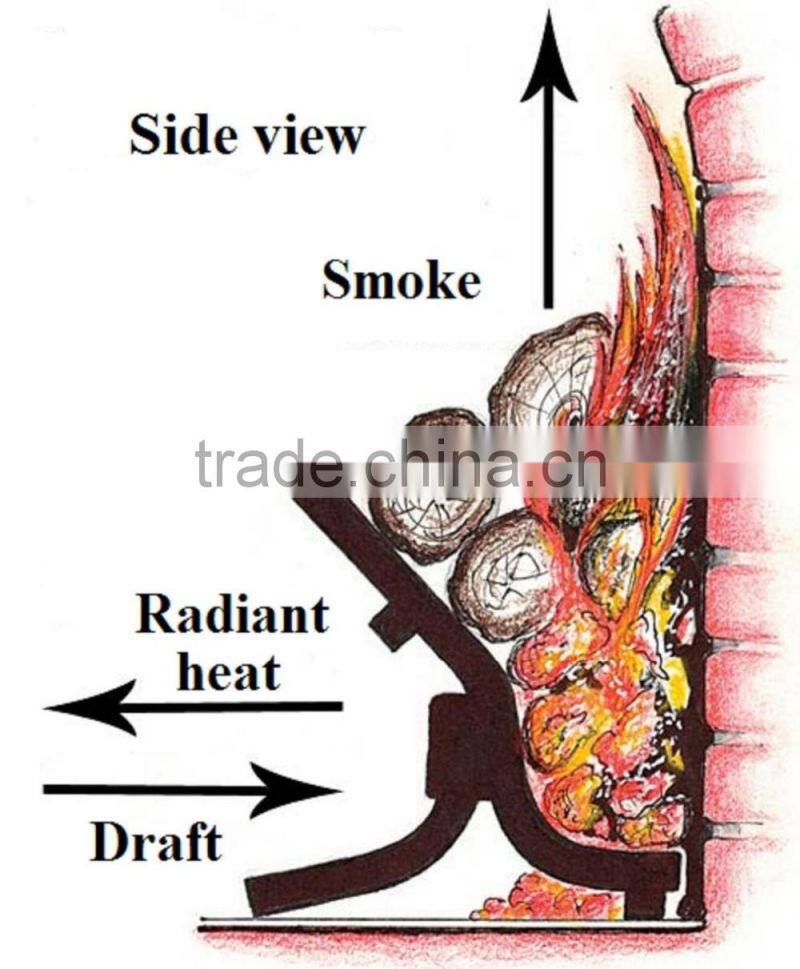

Our revolutionary Wall of Fire grate solves smoke problems and dramatically increases heat output in temperamental wood burning fireplaces. Our high efficiency grate allows a magnificent wall of warmth producing fireplace embers to develop at the base of the grate while firewood burns slow and controlled above. The vertical design initiates a completely self-feeding fire which promotes a cleaner burn. Uniquely located at the extreme rear of the fireplace, our grate forces smoke to hug the rear wall of the fire box, eliminating smoke from spilling into the home.

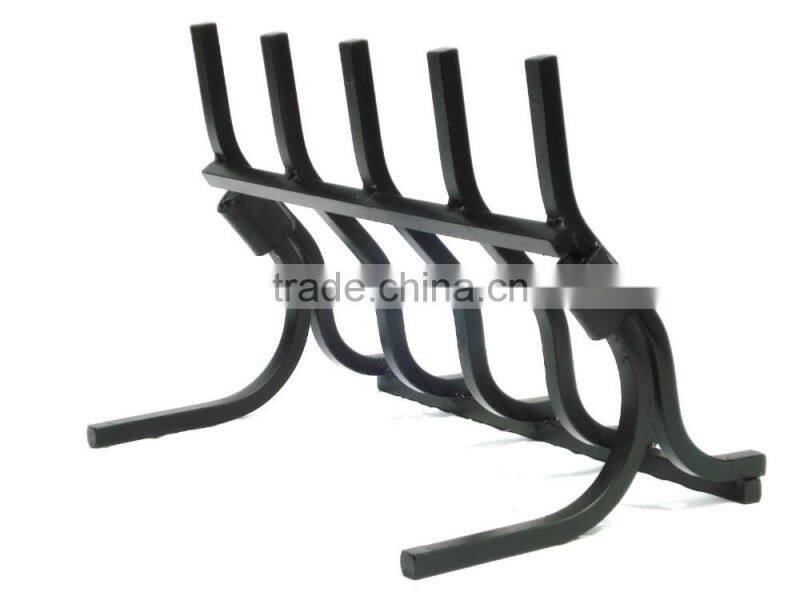

M-7 fireplace grate dimensions:
31" wide, 14" deep, 15" tall. Constructed of 3/4" solid steel bar.

Fireplace size requirements for the M-7 grate:
The rear wall of the fireplace must be a minimum of 31" wide, the fireplace floor must be a minimum of 16" deep, and the height of the fireplace front opening should be a minimum of 25" to allow adequate clearance to easily load firewood onto the grate.

Fireplace construction requirements for the M-7 grate:
It is important to understand that the Wall of Fire grate is a one sided unit. This means that the burning firewood is positioned between the grate and the rear wall of the fireplace. Having the firewood in direct contact with the back wall of the fireplace will significantly increase the temperature of the firebrick and may cause brick and mortar fatigue over time. Because of this we highly recommend you also purchase our model RF-7 reflective fireback (sold separately by Grate Wall of Fire on Amazon) to shield the back wall of the fireplace from excessive heat. If you are planning to use a Wall of Fire grate in any type of factory built fireplace such as a pre-fab, zero clearance, or metal fireplace, the addition of a reflective fireback is absolutely mandatory.
