Edge Cutting Machine for Column Slab
- 1 Set / Sets per Month
- Amoy
- T/T
You May Like
Product Details
| Condition | New | Type | Stone Cutting Machine | |
| Use | Other, Granite and Marble | Place of Origin | Fujian, China | |
| Brand Name | Ninesun | Model Number | HXB4-1500 | |
| Voltage | 110V / 220V | Power(W) | 11kw | |
| Dimension(L*W*H) | 5000x3400x2300 | Certification | CE | |
| Warranty | 1 Year | After-sales Service Provided | No overseas service provided |
Product Description

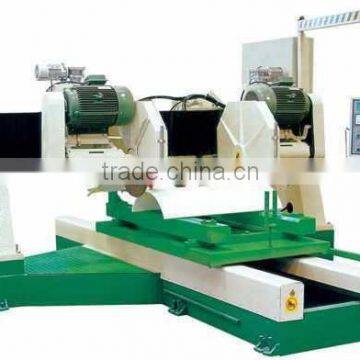

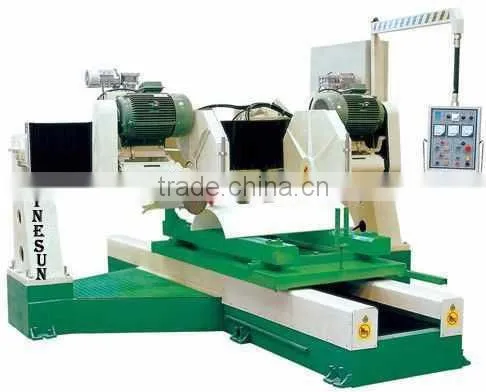

Edge Cutting Machine for Column Slab
Edge Cutting Machine for Column Slab is used for edge cutting of column slabs, which is also used for cutting mushroom stone and dimensioned slab. The reasonable design makes it good precise and high working efficiency.
The machine is applicable for edge trimming for arc slate and edge cutting for column slab.
With dual saws, the cutting is fast, accurate, highly efficient and stable. With operation buttons, programmer and liquid crystal display on, the switchboard on the edge cutting machine for arc slate is mounted on the right hand side suspender of the machine. The switchboard can make the operator control the machine easily from the cutting area when the column slabs or mushroom stones are being positioned.
| Unit | HXB4-1500 | |
| Max.cutting length | mm | 1500 |
| Max.cutting width | mm | 1500 |
Cutting angle
| n° | 0-180 |
| Vertical-cut thickness | mm | 180 |
| Main motor power | kW | 11 |
| Water consumption | m3/h | 4 |
| Overall dimensions(L×W×H) | mm | 5000×3400×2300 |
| Approximate weight | kg | 5000 |
The reasonable design makes it good precise and high working efficiency. Besides convenient and efficient operation, the edge cutting machine for arc slate is also helpful for environmental protection and energy saving, and beneficial to operate comfortably and safely.
With the features of intelligent control, convenient operation, high precision, high efficiency and stable performance, the edge cutting machine for arc slate is your best choice to grind and polish high-value arc slates.
Guarantee for one year,24-hour technical support by email or calling User-friendly English manual and Video CD for machine using and maintaining.
