Bridge Profile Machine
- 1 Set / Sets per Month
- Amoy
- T/T
You May Like
Product Details
| Condition | New | Type | Stone Cutting Machine | |
| Use | Other, Granite and Marble | Place of Origin | Fujian, China | |
| Brand Name | Ninesun | Model Number | QSFX-1600 | |
| Power(W) | 15KW | Certification | CE | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

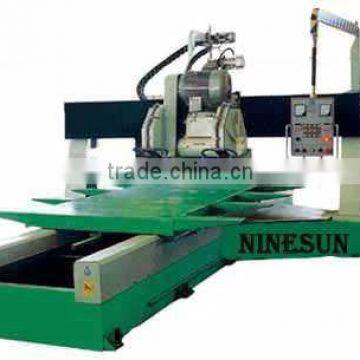

Bridge Profile Machine
The bridge profile machine is an automatic machine, using the photoelectric copy system, especially designed for carrying out architectural shapes such as profiles and edges, arc profile, roman column and column slab on granite and marble in large scale.
The bridge profile cutting machine is under the advanced PLC automatic control profile modeling system, frequency conversion technology, with oil-immersion type sealed guide rail, fully automatic control, computer automatic tracking and double-blade cutting. Thus, the cutting profile is easy to operate with good quality.
| QSFX-1600 | ||
| Max.cutting length | mm | 3000 |
| Max.cutting width | mm | 1600 |
| Max.cutting height | mm | 350 |
| Blade diameter | mm | 350-600 |
| Main motor power | KW | 15 |
| Water consumption | m3/h | 4 |
The whole bridge profile machine is novel in design, elegant in shape, compact in structure, good in connection of the processed cutting profile, stable in performance and high efficiency in work. With operation buttons and programmer and liquid crystal display on, the switchboard on the profile shaping machine is mounted on the right hand side of the machine. The switchboard can make the operator control the machine easily from the sawing area when the stone is being positioned. Besides convenient and efficient operation, the profile shaping machine is also helpful for environmental protection and energy saving, and beneficial to operate comfortably and safely. Processing quality and high efficiency and has less risks of damage.
Guarantee for one year,24-hour technical support by email or calling User-friendly English manual and Video CD for machine using and maintaining.
