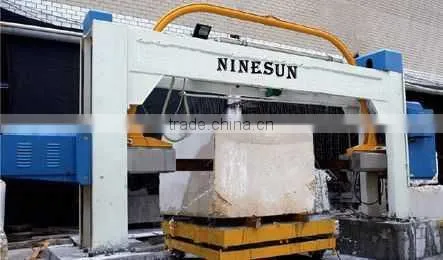

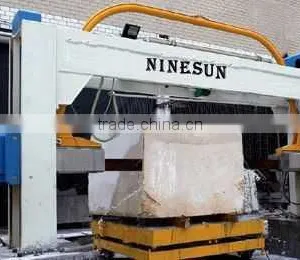

Single Blade Saw
- 1 Set / Sets per Month
- Amoy
- T/T
You May Like
Product Details
| Condition | New | Type | Stone Cutting Machine | |
| Use | Marble | Place of Origin | Fujian, China | |
| Brand Name | Ninesun | Model Number | MS4100 | |
| Power(W) | 30KW | Weight | 6 T | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
This single blade saw is used for refitting and cutting of marble block.
Adopting the advanced oversea technology, this single blade gang saw is a marble gang saw and can be applicable for refitting and cutting of marble block with high efficiency. Diamond gang saw doesnt make any noise during running and the underground screws' installation is not required. This single blade gang saw is consisted of a heavy and well balanced fly wheel, which is suitable for adjusting alternatives movements. The shaft of the fly wheel is made by special high endurance steel, mounted on proper pedestal boxes with antifriction bearings.
| External Dimensions | A | B | C | D | E | F | G | H | I |
| mm | 7835 | 4800 | 1015 | 5930 | 890 | 3050 | 2100 | 100 | 3500 |
The system ensures the gradual starting of flywheel with easy and smoothness. This large work piece, that is single blade gang saw, is incorporate on structure. Its easy to transit and convenient to install and adjust, can be put directly on the ground, thus, the processing stability is increasing and the costs of machine maintenance can be saved greatly. The heavy diamond gang saw frame is designed to withstand tension load all stresses and vibrations possible during operation.
| Unit | MS4100 | |
| Length of blade | mm | 4100 |
| Dimension for cutting width | mm | 2100 |
| Dimension for cutting height | mm | 3500 |
| Main motor/Auxiliary motor | KW | 30/4 |
| Blade's travel | mm | 420 |
| Circulating times | r/min | 160 |
| Machine weight | t | 6 |
| Car's dimension | mm | 3000×2400 |
The single blade gang saw is convenient and efficient in operation, helpful for environmental protection and energy saving, and beneficial to comfortable and safe operations.
Guarantee for one year,24-hour technical support by email or calling User-friendly English manual and Video CD for machine using and maintaining.
