Overhead Bridge Cutting Machine

Overhead Bridge Cutting Machine thumbnail-1
Overhead Bridge Cutting Machine photo-1
US$ 500 - 50,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Stone Cutting Machine
Use:
Other, Granite and Marble
Contact Supplier Request Quote Chat Now
Xiamen Ninesun Stone Ind. Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Amoy
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Stone Cutting Machine
Use Other, Granite and Marble
Place of Origin Fujian, China
Brand Name Ninesun
Model Number QSQJ-2500
Power(W) 37KW
Dimension(L*W*H) 7300x3800x6300
Weight 11000 KG
Certification CE
After-sales Service Provided Engineers available to service machinery overseas

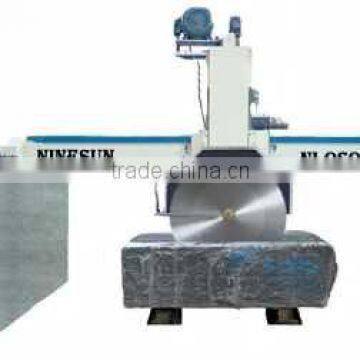

Overhead Bridge Cutting Machine



Overhead bridge cutting machine is used for cutting granite and marble blocks in small size, and the combination of multi-blade with different dimension, which can increase the work efficiency. The machine adopts two-slider frame structure, which is driven synchronized by double screw with high stiffness and stability.



  Unit QSQJ-2000 QSQJ-2500
Max.cutting length mm 3500 3000
Max.cutting width mm 2000 2000

Max.cutting height

 mm 850 1100
Max.blade diameter mm 2000 2500
Max.No.of blades n° 6 6
Main motor power KW 37 37
Overall dimensions(L×W×H) mm 7300×3800×6300 7300×3800×6300
Approximate weight kg 10000 11000







 Overhead Bridge Cutting Machine   Overhead Bridge Cutting Machine   Overhead Bridge Cutting Machine



Adopting built-in dual-cylinder lifting mechanism and adjustable side plates, the machine has a great improvement on cutting precision and efficiency; with dual-axis spindle box, the machine can fulfill cutting task in one time and dispense with the need for discharging the slabs when cutting blocks.Adopting teeth bar, the slab-partition drive mechanism possesses higher precision with less clearance. It is preferred equipment for cutting large-size blocks.



Guarantee for one year,24-hour technical support by email or calling User-friendly English manual and Video CD for machine using and maintaining.
