Stylobate Cutting Machine

Xiamen Ninesun Stone Ind. Co., Ltd.

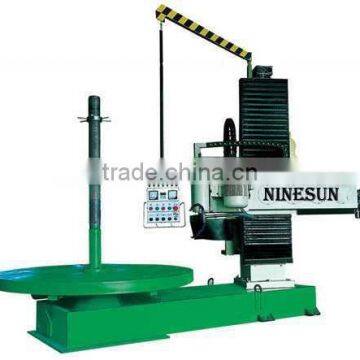

Stylobate Cutting Machine thumbnail-1

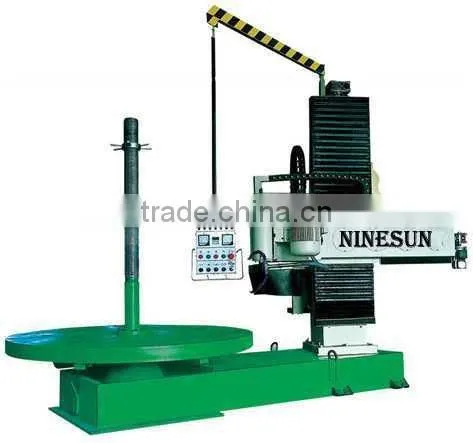

Stylobate Cutting Machine photo-1
US$ 500 - 50,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Stone Cutting Machine
Use:
Other, Stylobate and Column
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Amoy
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Stone Cutting Machine
Use Other, Stylobate and Column
Place of Origin Fujian, China
Brand Name Ninesun
Model Number ZMFX-2500
Power(W) 11kw
Dimension(L*W*H) 4500x2500x3500
Weight 6000KG
Certification CE
After-sales Service Provided Engineers available to service machinery overseas

Stylobate Cutting Machine is used for cutting stylobate, column, pyramid column, baluster and ball, etc.Which is controlled by microcomputer and works by automatic tracking according to the sectional view.





 UnitZMFX-2500
Max.cutting diametermm2500
Max.cutting heightmm1000

Worktable stroke

mm2000
Blade diametermm600
Main motor powerKW11
Water consumptionm3/h4
Overall dimensions(L×W×H)mm4500×2500×3500
Approximate weightkg6000

 Stylobate Cutting Machine





The stylobate cutting machine is electrical centralized switchboard grouping all functions and supervisions of the machine. The switchboard on the machine, with operation buttons, programmer and liquid display, is mounted on suspender in the middle of the machine. The switchboard can make the operator control the gyroidal stone cutting machine easily from the sawing area when the stone is being positioned.



The micromputer control system and aptical fiber measuring and monitoring system,the machine is applicable for cutting various revolution bodies including column seats,column caps and columns. It overcomes the problems such as high material consumption and Iow precision in manual processing.



Guarantee for one year,24-hour technical support by email or calling User-friendly English manual and Video CD for machine using and maintaining.
