Multifunctional Cutting And Polishing Machine
- 1 Set / Sets per Month
- Amoy
- T/T
You May Like
Product Details
| Condition | New | Type | Stone Cutting Machine | |
| Use | Other, Granite and Marble | Place of Origin | Fujian, China | |
| Brand Name | Ninesun | Model Number | ZDSZG-2500 | |
| Power(W) | 11kw | Dimension(L*W*H) | 7000x2500x4000 | |
| Weight | 8000KG | Certification | CE | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

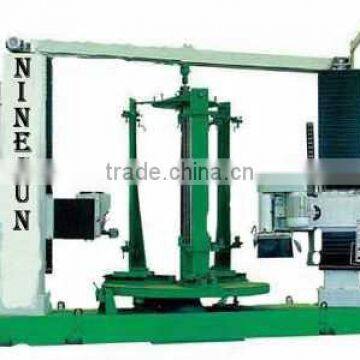

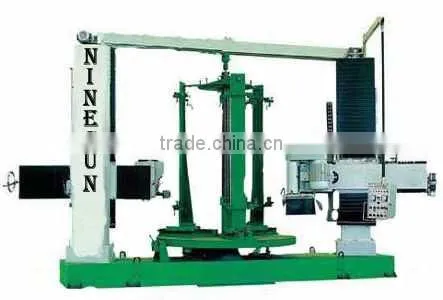

Multifunctional Cutting And Polishing Machine
The stone polishing machine is a multifunctional cutting & polishing machine, which is used for cutting various revolution bodies including stylobate, column, pyramid column, baluster and ball, etc.
It could also trim and polish column slabs automatically.
| ZDSZG-2500 | ||
| Max.cutting diameter | mm | 600-2500 |
| Max.cutting height | mm | 1300 |
Worktable stroke | mm | 2000 |
| Blade diameter | mm | 600 |
| Main motor power | KW | 11 |
| Water consumption | m3/h | 6 |
| Overall dimensions(L×W×H) | mm | 7000×2500×4000 |
| Approximate weight | kg | 8000 |
The geometrical frame makes multifunctional cutting & polishing machine absence of vibration and considerable wear resistance. The optimized electrical system and dynamic system results in high working efficiency and low cost, when using this stone cutting equipment which track automatically according to the sectional view. Controlled by microcomputer, it has much lower waste and higher precise than the manual work.
The multifunctional cutting & polishing machine works by automatic tracking according to the sectional view, and overcomes the problems such as high material consumption and low precision in manual processing. With frequency control, the multifunctional cutting & polishing machine features stable work, easy operation, high processing quality and high efficiency and has less risks of damage.
Guarantee for one year,24-hour technical support by email or calling User-friendly English manual and Video CD for machine using and maintaining.
