Automatic Slab Polishing Machine
- 1 Set / Sets per Month
- Amoy
- T/T
You May Like
Product Details
| Condition | New | Type | Stone Polishing Machine | |
| Use | Other, Granite and Marble | Place of Origin | Fujian, China | |
| Brand Name | Ninesun | Model Number | ZDMJ-14C | |
| Power(W) | 162.6KW | Dimension(L*W*H) | 10810x3560x2560 | |
| Certification | CE | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

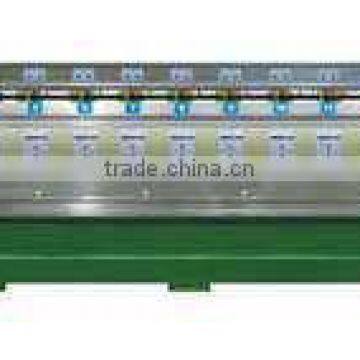

Automatic Slab Polishing Machine
Automatic slab polishing machine is for polishing granite and marble slabs. It pre-polish,rough-polish,finish-polish and burnish continuously.
The polish spindle is controlled for counterpressure by a coaxial cylinder according to the stone character. The operator could choose the required speed of crossbeam and belt by an inverter.
| Unit | ZDMJ-6C | ZDMJ-14C | |
| No.of heads | n° | 6 | 14 |
| Useful working width | mm | 600-2000 | 600-2000 |
| Useful working thickness | mm | 15-50 | 15-50 |
| Belt advancement speed | mm/min | 0-2500 | 0-2500 |
| Spindle motor power | KW | 11 | 11 |
| Total power | KW | 71.6 | 162.6 |
| Water consumption | m3/h | 10 | 22 |
| Overall dimensions(L×W×H) | mm | 6540×3470×2560 | 10810×3560×2560 |
PC color touch screen controlled and programmed. Slab profile sensing through sensors.Miniimal raise of polish heads at slab exit and lowering at slab entry without variation of the programmed working pressure. Real time visualization of tools state.
| Unit | ZDMJ-16C | ZDMJ-18C | |
| No.of heads | n° | 16 | 18 |
| Useful working width | mm | 600-2000 | 600-2000 |
| Useful working thickness | mm | 15-50 | 15-50 |
| Belt advancement speed | mm/min | 0-2500 | 0-2500 |
| Spindle motor power | KW | 11 | 11 |
| Total power | KW | 184.6 | 206.6 |
| Water consumption | m3/h | 25 | 28 |
| Overall dimensions(L×W×H) | mm | 11900×3560×2560 | 12990×3560×2560 |
The control system inspects and optimizes the movement of polish head, crossbeam and belt to expert polishing. This machine can be controlled by telephone network in long range. Fault diagnosis system and production data statistics makes it more humanized.
Guarantee for one year,24-hour technical support by email or calling User-friendly English manual and Video CD for machine using and maintaining.
