high quality floral foam making machine and technology
- 1 Acre / Acres per Month
- tianjin
- T/T Credit Card
-
Lab Jacketed Glass Reactor 10 Liter Chemical Reactor for Research
-
Mini Lab Jacketed Glass Reactor High Borosilicate Reaction Vessel
-
Customized Industrial Chemical Reaction Jacketed Glass Reactor
-
GG-17 Jacketed Glass Reactor Heating and Cooling Circulator Mixer Reactor
-
1-5L Single Layer Pyrex Borosilicate Tank Stirred Heated Glass Reactor
-
10L Digital Extraction Synthesis Laboratory Single Glass Reactor
Product Details
| Condition: | New | Automatic Grade: | Semi-Automatic | Type: | Other, Tank Reactor, high quality floral foam making machine and technology |
| Place of Origin: | Hebei, China | Brand Name: | HUIYA | Model Number: | HUIYA-002 |
| Voltage: | 220V | Power(W): | CUSTOMIZED | Dimension(L*W*H): | CUSTOMIZED |
| Weight: | CUSTOMIZED | Certification: | ISO | Warranty: | 1 Year |
| After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
high quality floral foam making machine and technology
Product description:

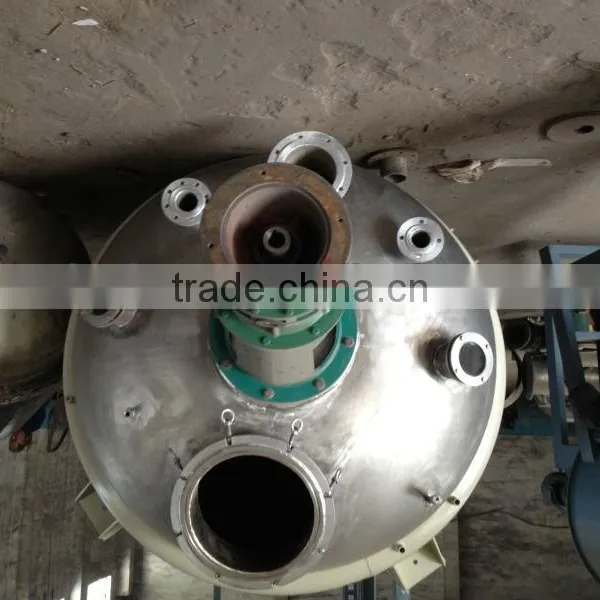

Put all the raw material into the Resin synthesis equipment(reactor),reactor machine using the control cabinet to control the temperature and input the material.
size | 2*2*3m |
weight | 1t |
Screw feeder | 1.5kw |
Resin pump | 1.5kw |
Equipment voltage | 380v |
material | Inside 6mm 304stainless steel ,outside 6mm carbon steel |
volume | 1000L,usually put 800L |
Control cabinet size | 165*55*140cm,weight:55kg |
- 2. Foaming Equipment:
Foam equipment size | 380*220*220cm |
weight | 2t |
Tank A electrical machine | 4.0kw |
volume | 800L |
gear pump | 5.5kw |
- 3. Mould
4.Cutting Machine:
Vertical cutting machine
size | 180*285*250cm |
weight | 800kg |
electric machine | 2.5kw |
CNC horizontal pushing printing machine:500*330*250cm,2.3tons
PLC horizontal pushing printing machine:390*190*125cm,weight:700kg.
Production flow chart:
Dissolve phenol
↓
Input phenol into reactor with vacuum pump
↓
Input other material
↓
Resin synthesis
↓
Input resin into storage tank
↓
Input other additives
↓
Mixing and control temperature
↓
Absorb the material into tank A of foaming machine
↓
Add other materials into tank B,then input the materials of tank A and B into mould
↓
Shaping and volatilization of seml-finished product
↓
Cut the surface in vertical cutting machine
↓
Cut into slices in CNC horizontal cutting machine
↓
PLC horizontal pushing printing machine
↓
Processing of PH(controllable)
↓
Packaging
