CE certificate cheap half automatic floristic foam machine
Product description:

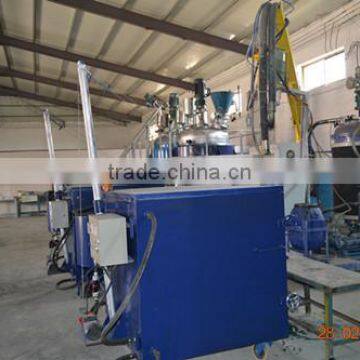

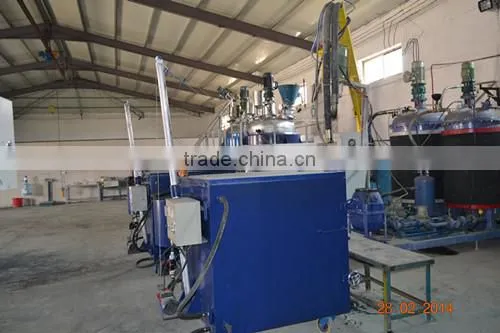

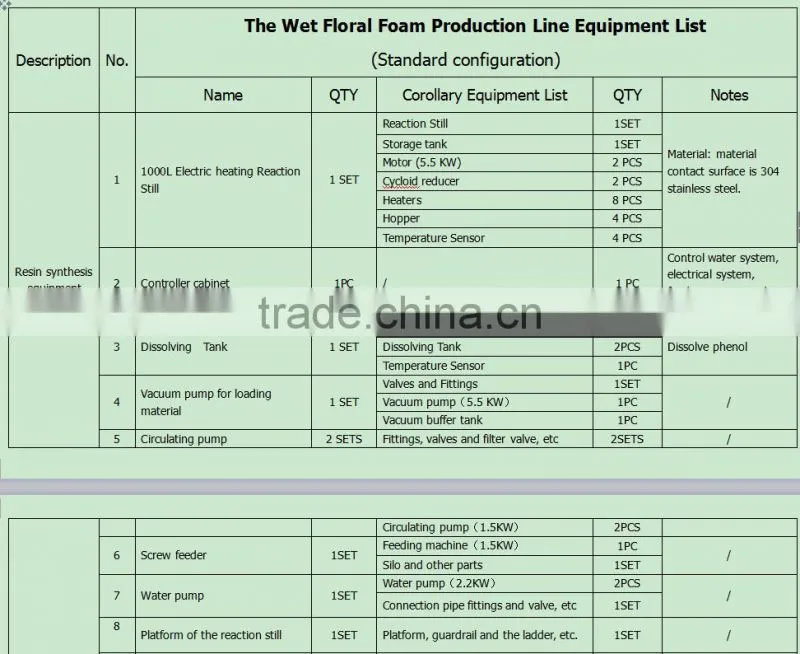

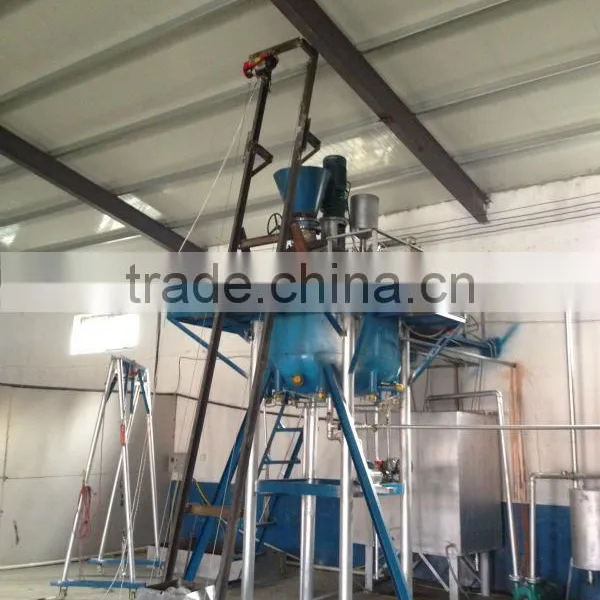

Put all the raw material into the Resin synthesis equipment(reactor),reactor machine using the control cabinet to control the temperature and input the material.
size |
2*2*3m |
weight |
1t |
Screw feeder |
1.5kw |
Resin pump |
1.5kw |
Equipment voltage |
380v |
material |
Inside 6mm 304stainless steel ,outside 6mm carbon steel |
volume |
1000L,usually put 800L |

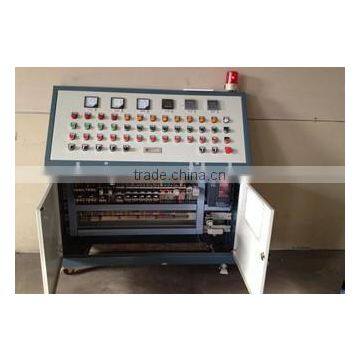

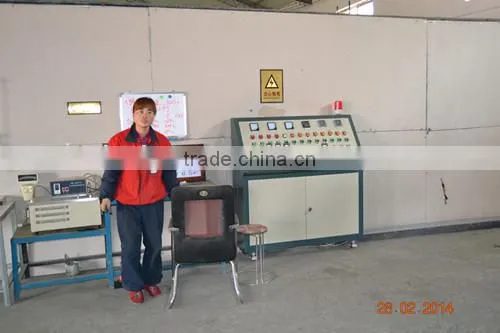

Control cabinet size |
165*55*140cm,weight:55kg |

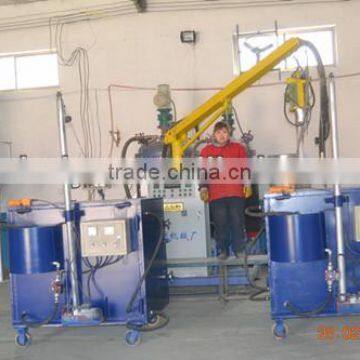

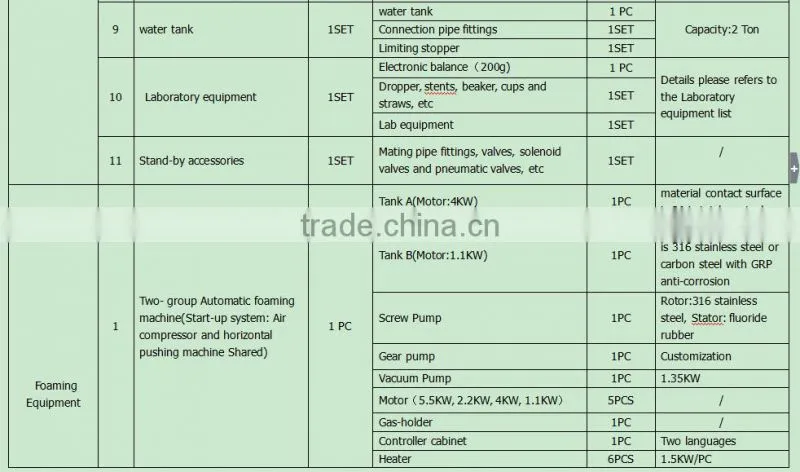

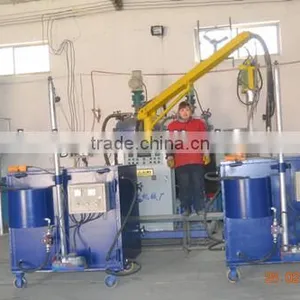

- 2. Foaming Equipment:
Foam equipment size |
380*220*220cm |
weight |
2t |
Tank A electrical machine |
4.0kw |
volume |
800L |
gear pump |
5.5kw |
- 3. Mould
4.Cutting Machine:

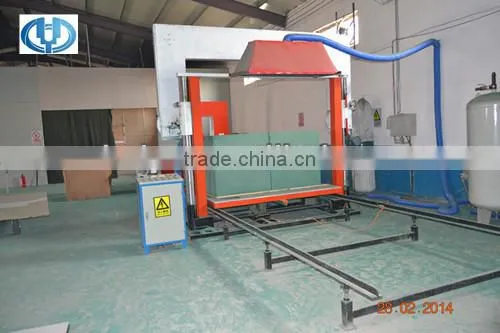

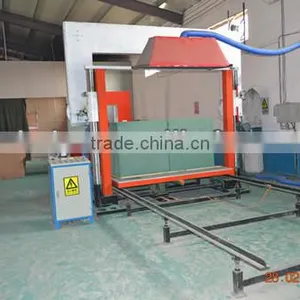

Vertical cutting machine
size |
180*285*250cm |
weight |
800kg |
electric machine |
2.5kw |
CNC horizontal pushing printing machine:500*330*250cm,2.3tons
PLC horizontal pushing printing machine:390*190*125cm,weight:700kg.
Production flow chart:
Dissolve phenol
↓
Input phenol into reactor with vacuum pump
↓
Input other material
↓
Resin synthesis
↓
Input resin into storage tank
↓
Input other additives
↓
Mixing and control temperature
↓
Absorb the material into tank A of foaming machine
↓
Add other materials into tank B,then input the materials of tank A and B into mould
↓
Shaping and volatilization of seml-finished product
↓
Cut the surface in vertical cutting machine
↓
Cut into slices in CNC horizontal cutting machine
↓
PLC horizontal pushing printing machine
↓
Processing of PH(controllable)
↓
Packaging
