Fresh floral foam auto machines
- 100 Set / Sets per Month
- China port
- Environmental Testing Walk In Humidity Chamber Door To Door Installation
- Factory Price Melt blown Fabric Production Equipment and Extruder Line
- X-ray Fuorescence Spectrometer
- Pressing Punching Servo Press Machine Positioning Straightening Calking
- Manual 2.5 D Video Measuring Machine 92 mm Working Range Multiple Data Processing
- 200KN Universal Material Compression Bending Tensile Testing Machine
Product Details
Product Type: | Other, floral foam machine | Place of Origin: | Hebei, China | Brand Name: | Huiya |
Model Number: | HY | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
1. Floral foam auto machines2. consistent quality
3. easy to learn and control
We are specializing in exporting floral foam auto machines and chemical materials.
Phenolic resin for flower foam synthesis technology is introduced:
Product Purpose: Wet Floral foam, Dry Floral Foam.
Product Feature:
1.Our company adopts solid paraformaldehyde synthesis technology, solving the problems of wastewater discharge,
environment protection, etc.
2.The automatic temperature control system combines electric heating and physical reaction, which improve the
production efficiency, reduces the resin production cost. Synthetic resin equipment combined with automatic foaming
machine let the stability of the foam(density, strength, water absorption, water retention, PH) come true, and let the foam open porosity rate can reach
more than 95%. New technology of the production cost was reduced by 15% than old technology.

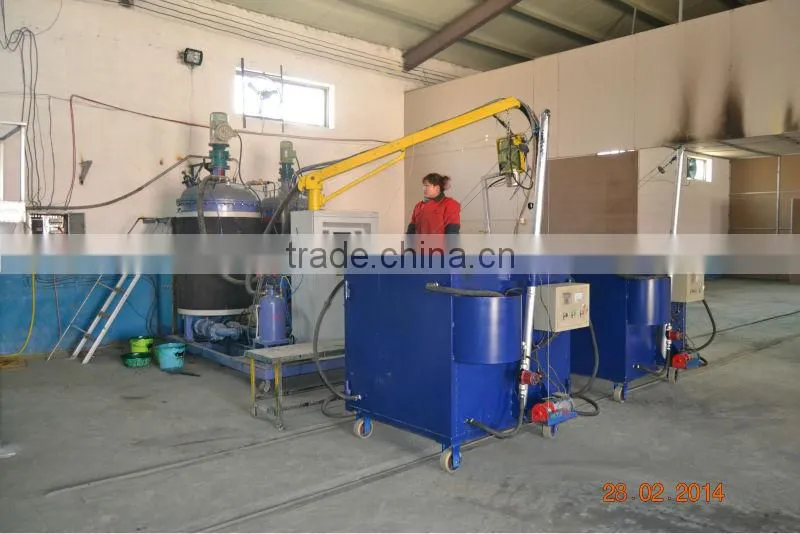

3.The whole production line includes resin synthesis equipment, floral foam automachine, foaming mould , vertical
cutting machine and printing machine, etc.

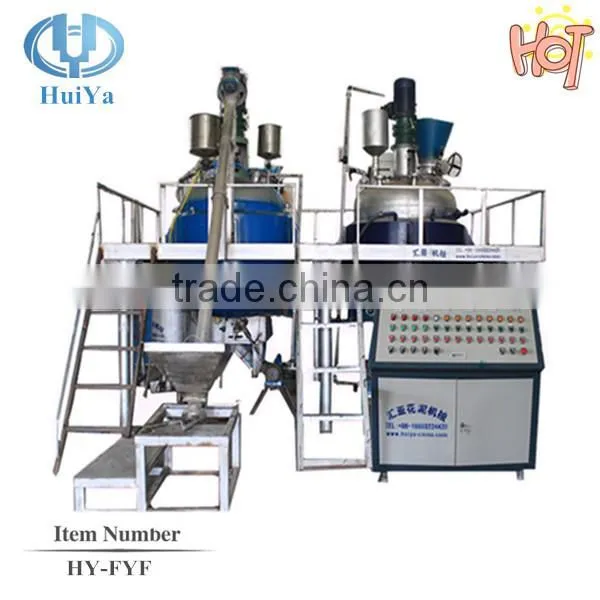

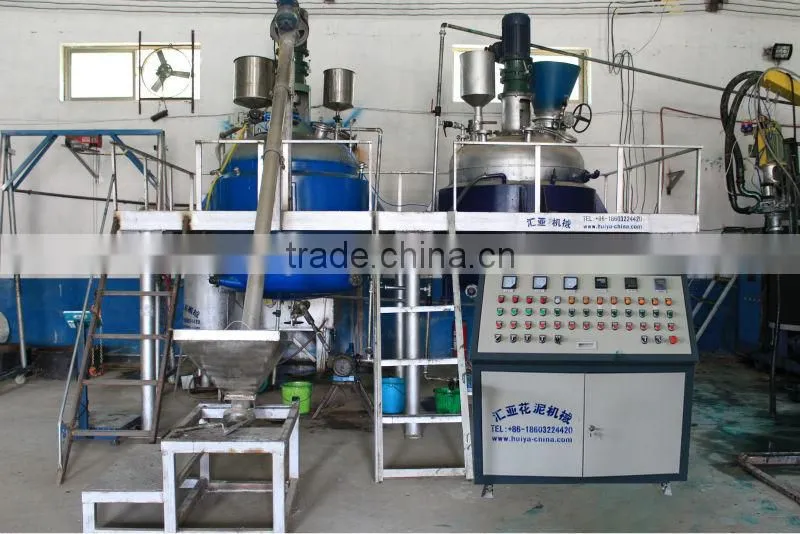

1. Electrical heating reaction vessel
Product Purpose: It is used in petroleum, chemical, rubber, pesticide, dye, medicine, food, scientific research
and other industries, used to complete the sulfide, nitration, hydrogenation, alkylation, polymerization, condensation
process, as well as many organic dyes and intermediates, such as process equipment.
Product features:
1. Principle: the principle of electrical heating reaction kettle is to insert electric heater in the jacketed heat
conductionoil, using conduction oil as heating medium of a kettle, make the material inside the kettle react. Reaction
pot consists of pot, stainless steel tube body, jacket, mixer, shaft sealing device and bearing. The shaft sealing device
is divided into packing seal and mechanical seal.
2. Characteristics:
1) can customize anchor type wheel, impeller, pan, pusher, or box type mixing form, as well as the mixing of
different combinations.
2) can customize various kinds of heat exchanger, including jacket, coil, electric heating, steam heating, heat
conduction oil heating.
3) optional explosionproof performance, sealing performance, positive pressure and negative pressure in various
configurations.

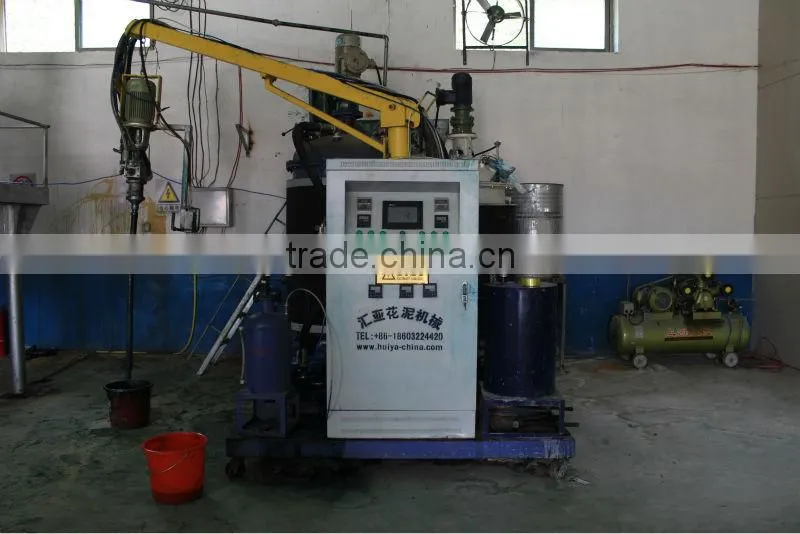

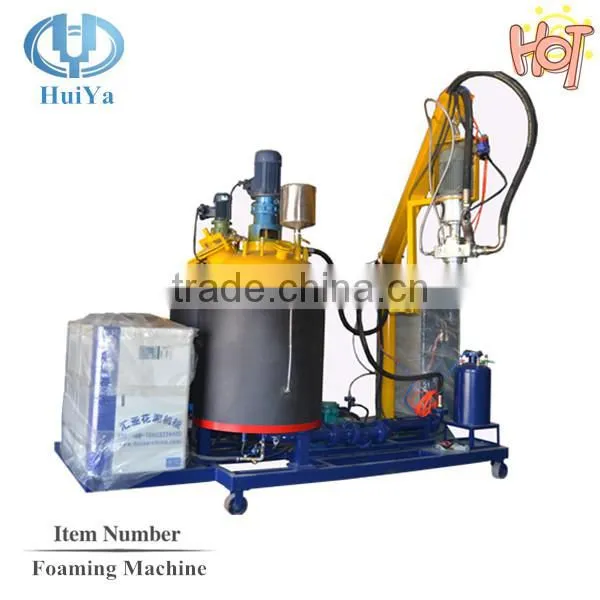

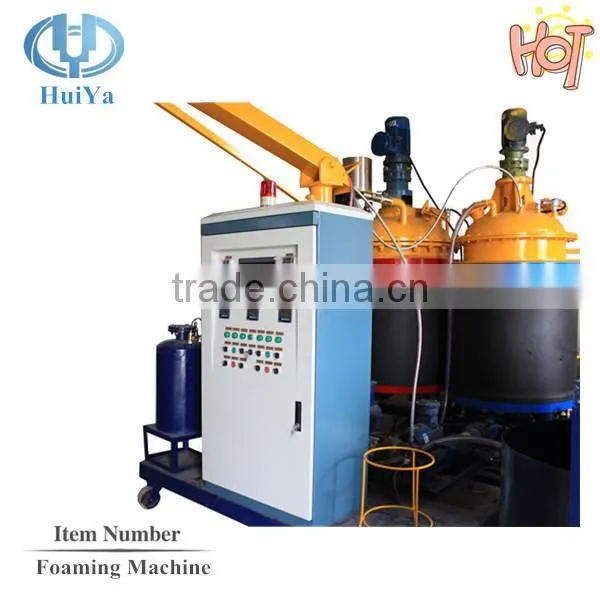

2.Product Name: Floral Foaming Machine
Product Purpose: Floral foam, foam mattresses, sofa cushions etc.
Product Feature:
1.Main unit: Material injection by a precision needle valve, which is taper sealed, never worn, and never clogged;
the mixing head produces complete material stirring; precise metering (by a precision metering pump); single
button operation for convenient operation; switching to a different density or color at any time.
2.Control : Microcomputer PLC control; TIAN electrical components exclusively imported to achieve the goal for
automatic, accurate and reliable control can be imputed with more than 500 working position data; pressure,
temperature and rotation rate digital tracking and display and automatic control; abnormity or fault alarm
devices. Import converter (PLC) can control eight different product ratio.
Equipment model | HY-803 |
Source | Total power 22KW,4*220V/60HZ |
Suit foam type | Phenol aldehyde flower mud |
Injection flow | 1500g-2500g/S note: the size of flow can be set |
Injection pressure | 0.1MPA-3.99MPA |
Mix ratio | 100-15;100-30 |
viscosity(22 ) | Resin 500-3000MPAS |
viscosity(22°C) | Acidic curing agent 500-2000MPAS |
Feeding time | 0.01-99.9/S(accuracy 0.01S) |
Injection materials Precision | 0.1/100 |
Injection procedure number | PLC program manual injection |
Pneumatic work pressure | 0.6-0.8MPa |
Floor space | Wide 5M height 3.2M |
Overall weight | 1.8t |
Mixed casting head | Use ball value type |
PLC Programming Computer Chinese show(Taiwan Delta) | can control 100 different mould (product) pouring quantity at the same time, can automatic cleaning machine |
Heating system | Can automatic control temperature |
3.5KW water cycle vacuum pump and storage tank | A set |
10P refrigeration unit | A set |

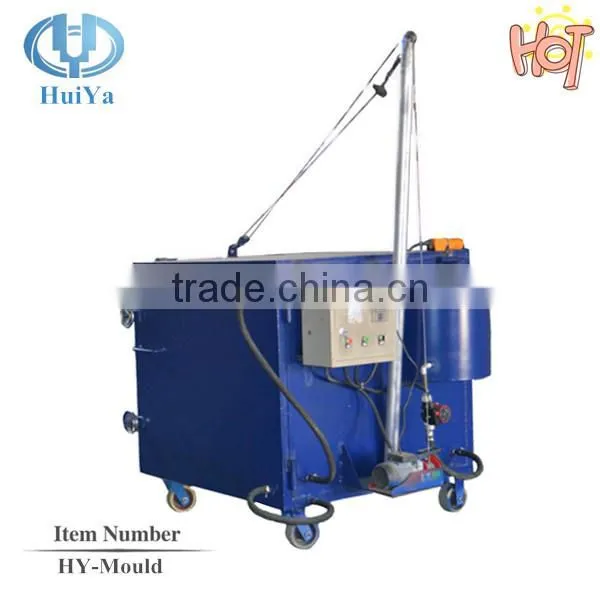

3.Foaming mould
Product Purpose: Floral foam etc.
Product Feature:
Using automatic electrical heating temperature control system, make floral foam heated evenly, temperature is
consistent. And make floral foam forming rules, uniform density, hardly any waste generated.

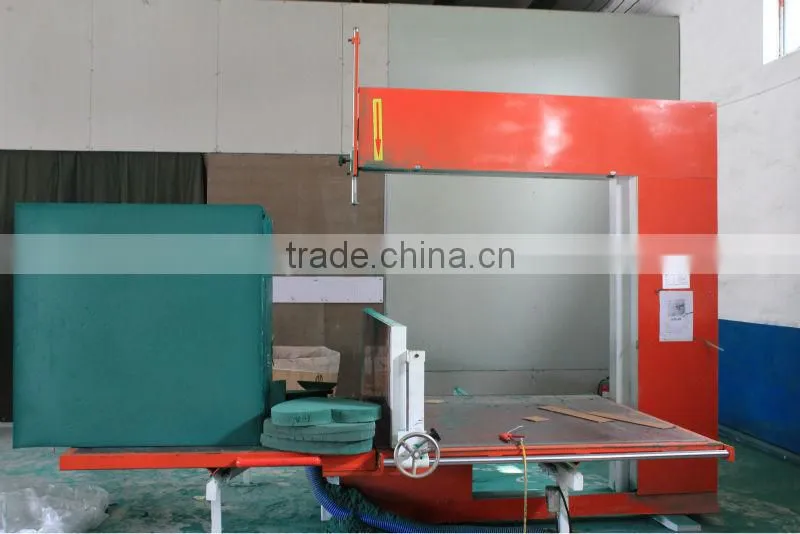

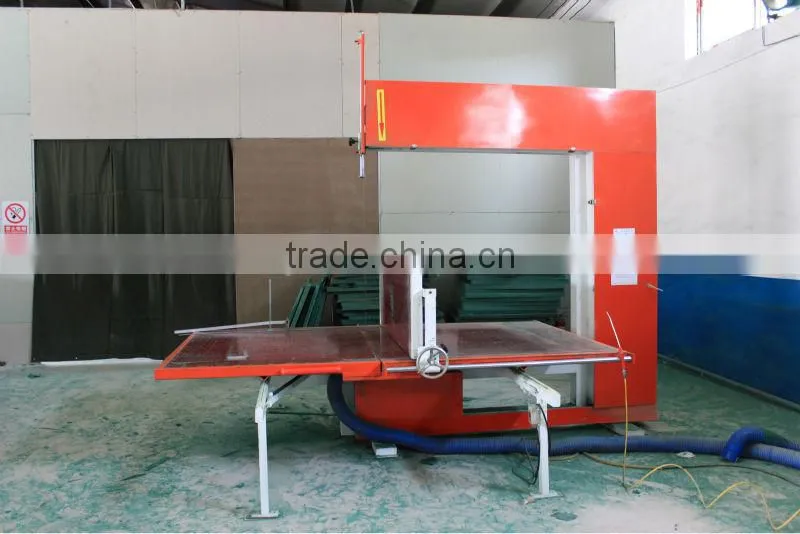

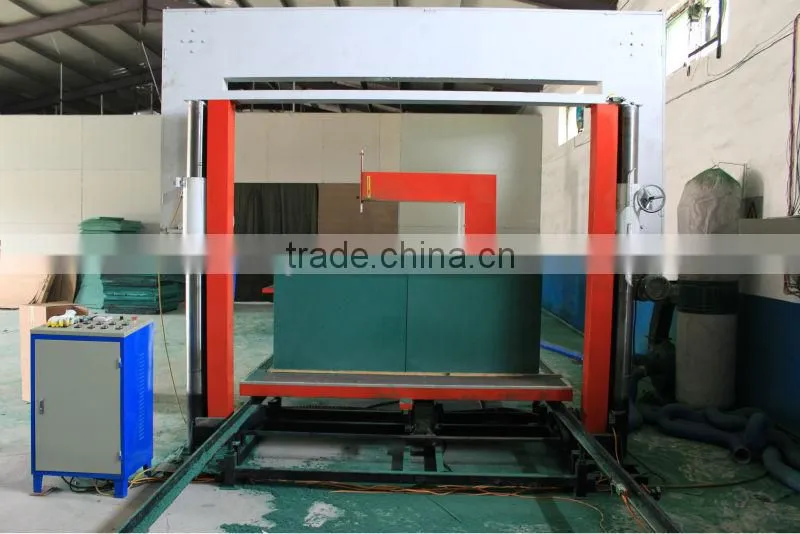

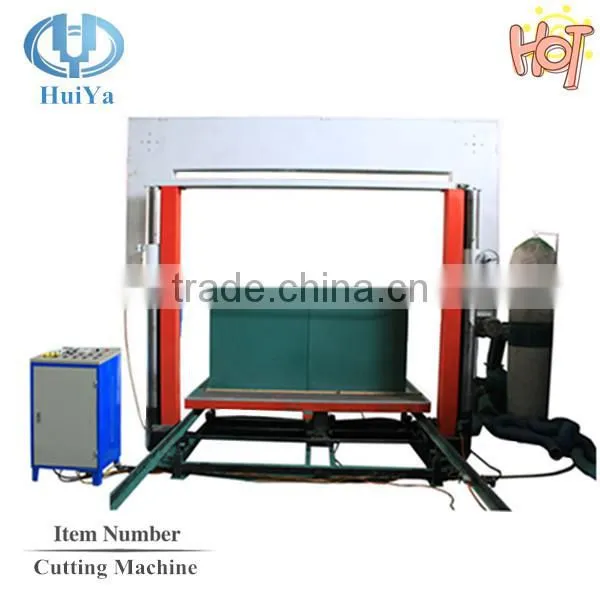

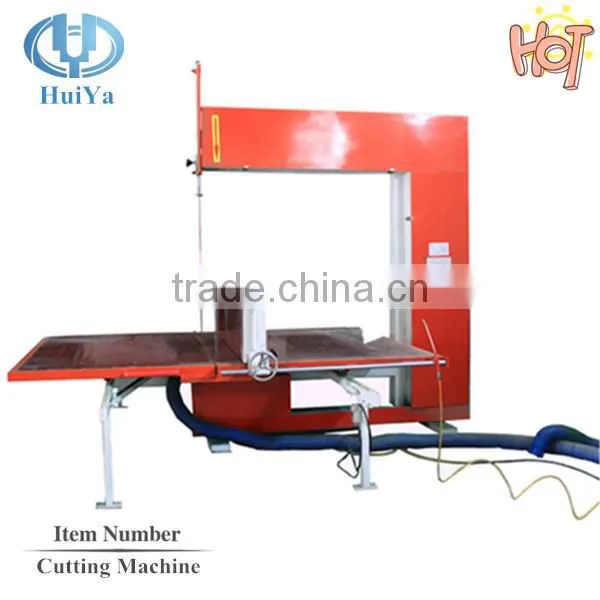

4.Cutting machine
Product features: computer control, simple operation. Equipped with suction machine, greatly reduces the
floral foam powder pollution, make working environment more healthy.

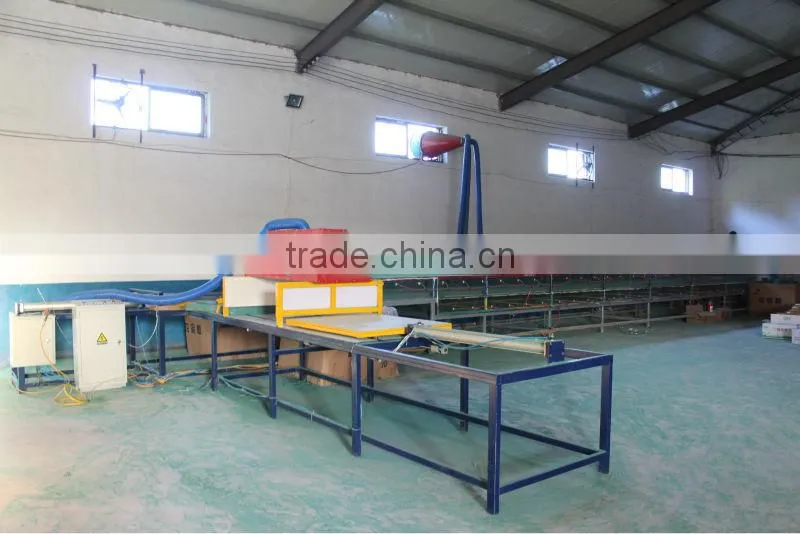

5.Printing machine

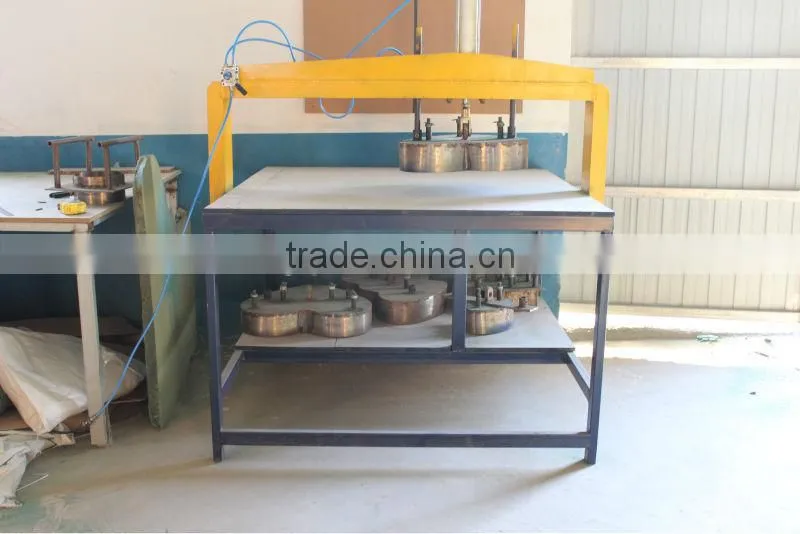

6. Special -shaped floral foam mould
