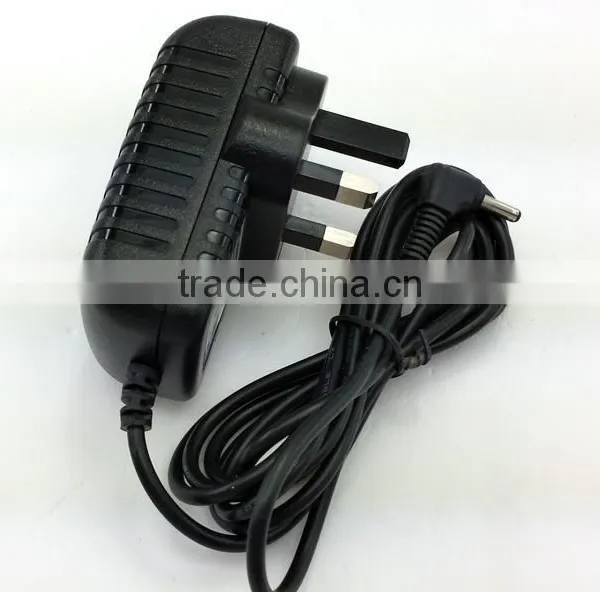

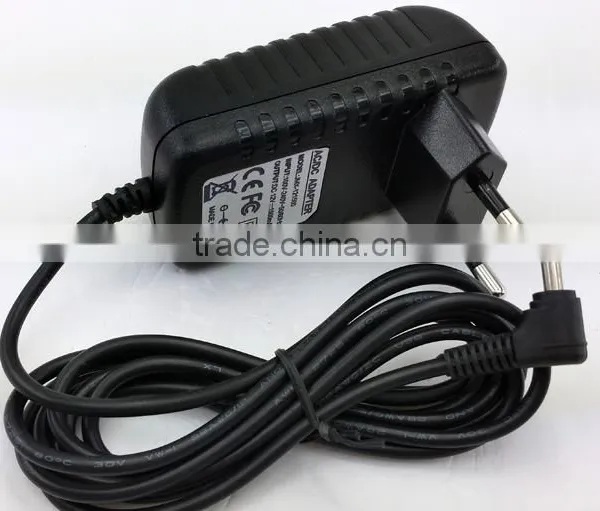

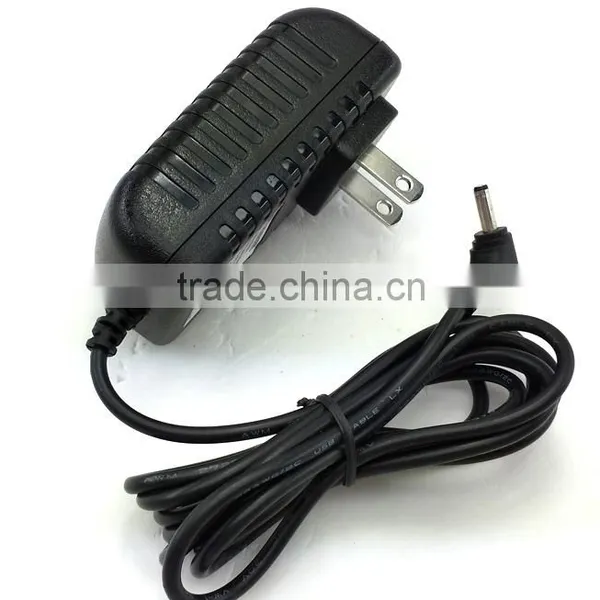

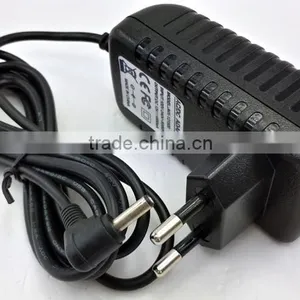

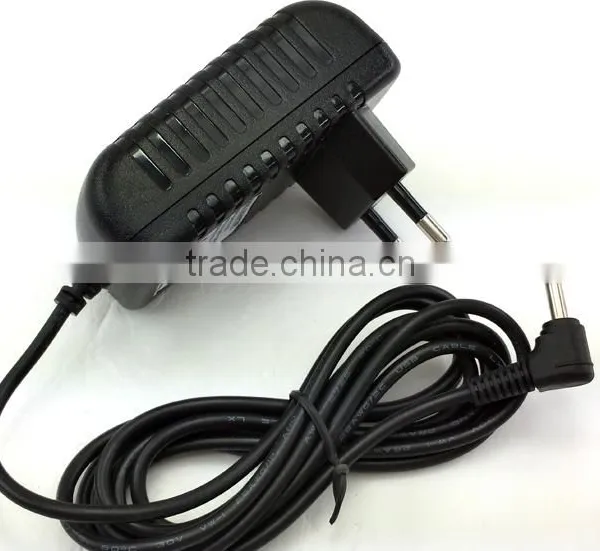

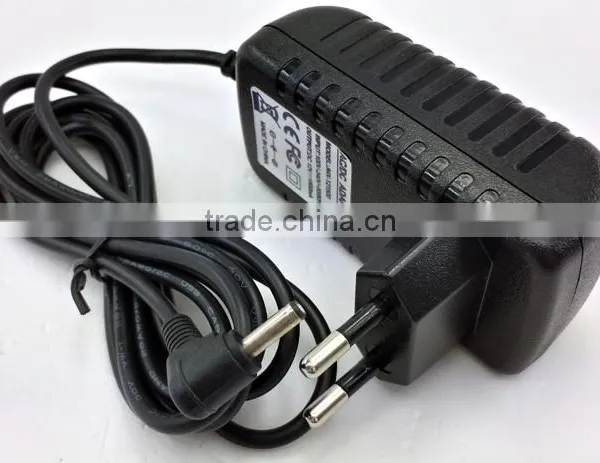

5.5v ac dc Power Adapter 9.6v ac Power Adapter

FOB Price

US$ 0.88 - 3.18 / Piece

100 Pieces(Min. Order)

Port shenzhen
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	OEM
Model Number	Power Adapter	Output Type	DC
Connection	Plug In

Product Description

5.5v ac dc power adapter 9.6v ac power adapter

Features :

Model
AC Input	AC Voltage	90VAC(minimum)~264VAC(maximum)
	AC Frequency	47~63Hz
	AC Current	0.6A max at 90Vac
	Hold-Up time	6msec minimum at dc output full loading and 100Vac input
	Efficiency	≥77.8%(At115Vac/230Vac input voltage meet Efficiency level 4)
	Standby consume power	Less than 0.3 Watt at AC input voltage 115Vac/230Vac
DC Output	DC voltage	3v-48v
	Rated current	0.05a-2.5a
	Current range	0~2.5a
	Ripple & Noise (max)	200mVp-p
	Rated power	0-36w
	Output Voltage Temperature Drift	Less then 0.2%/ °C
protection	Short Circuit Protection	All output will withstand a short circuit across the outputs and auto-recovery function.
Environment	Temperature	a. Operation: 0 to 40 °C b. Storage: -40 to 70 °C
	Humidity	a. Operation: 20 to 80% b. Storage: 10 to 90%
Safety	EMI for both Conduction & Radiation	Referring Standards Specification: FCC(Part15,Class B) VCCI(Class B) CISPR(Part22,Class B)
	Dielectric Strength (HI-POT) TEST	Withstand AC 3000V for 60 sec. (cut off current 10mA), Primary to Secondary
	Insulation resistance	Insulation resistance is more than 50M ohm at 500VDC between input and output plug and case.
Others	Certification	UL CE SAA BS FCC EMC CCC ROHS
	MTBF	The mean time between failures of power supply shall be 20000 hours or greater as calculated by parts stress method of MIL–HDBK-217F
	Physical	Shell material: PC+ABS or PPO
	Output cable	USB or Calbe line 1.2m/1.5m/1.8m
	Plug	US plug/UK plug/AU plug/EU plug with copper Prong
	DC connector	5.52.1mm/5.52.5mm/4.01.7mm/3.51.35mm/3.5*1.0mm
	Label	The standard label or the lable you want
	RoHS compliance	Yes
	Warranty Period	2 year

Packaging & Shipping

Packaging: inner box + carton, 100pcs/ctn or in accordance with the requirements of customers.

Shipping: 1.) for samples or small amount of goods, delivery by international express or air transport (shipping time: 3-5 working days). 2.) for large quantities of goods, delivery by ocean shipping SHENZHEN shipping time: 20-45 working days).

Our Services

1.) All the inquiries reply less than 24 hours.

2.) Proactive and passionate pre-sale service.

3.) Patient and careful production preparation.

4.) Meticulous and perfect after-sales service.

Advantages

1. We have 15 years experience in this field.

2. We offer favorable reasonable factory price.

3. We guarantee the quality of the product.

4. We have excellent research and development team.

5. We give our best after-sale service to our customers.

Applications:

MP4 players, cell phone charger.

LCD screen, Laptop ,DVR,TVB.

Digital cameras,LED and so on .

Welcome to OEM/ODM

Free sample

Sample time : 3-5days

Delivery time:7-10days

Trade terms: FOB shenzhen

Payment : T/T ,L/C,PAYPAL ,Western Union

All product warranty 3 years(One years damage manufacture one to one exchange.)

Printing you LOGO and stick you modle also ok .

Credit is the basis , Quality is the first

Power adapter ,Charger ,Power supply Manufacture

Skype:beryl--qin

What's app: 86 13412619588

QQ:1767294269

Wechat: beryl18
