Home > Electrical & Electronics > Power Supply & Distribution > Power Adapter > Adaptor Charger for Foot Massage Sofa Chair

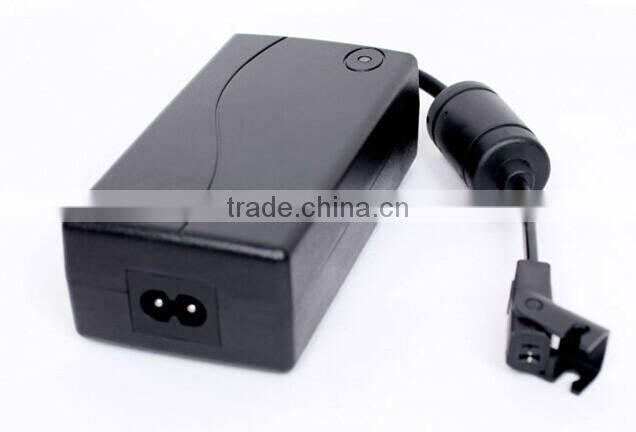

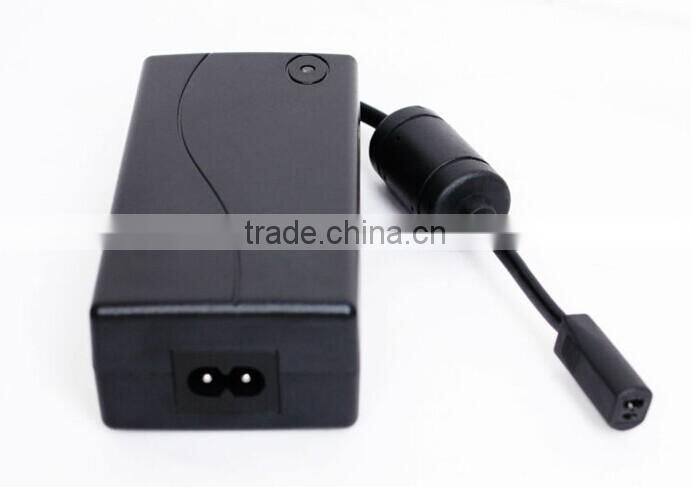

Adaptor Charger for Foot Massage Sofa Chair

Shenzhen Singja Gifts& Crafts Co., Ltd.

Adaptor Charger for Foot Massage Sofa Chair thumbnail-2

Adaptor Charger for Foot Massage Sofa Chair thumbnail-3

Adaptor Charger for Foot Massage Sofa Chair thumbnail-4

Adaptor Charger for Foot Massage Sofa Chair thumbnail-5

Adaptor Charger for Foot Massage Sofa Chair thumbnail-6

Adaptor Charger for Foot Massage Sofa Chair photo-1

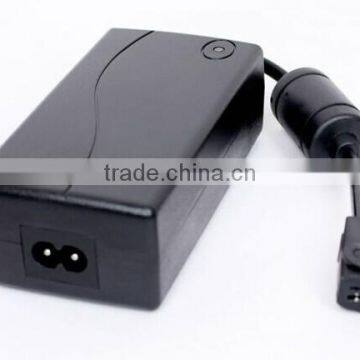

Adaptor Charger for Foot Massage Sofa Chair photo-2

Adaptor Charger for Foot Massage Sofa Chair photo-3

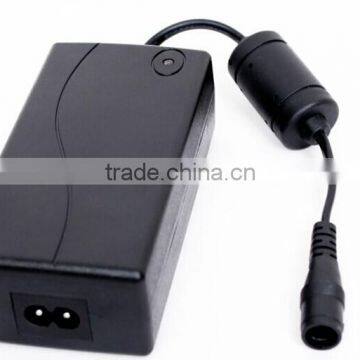

Adaptor Charger for Foot Massage Sofa Chair photo-4

Adaptor Charger for Foot Massage Sofa Chair photo-5

Adaptor Charger for Foot Massage Sofa Chair photo-6

US$ 0.1 - 10 MOQ: 100 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

OEM

Model Number:

290200

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name OEM

Model Number 290200

Output Type DC

Connection Desktop

adaptor charger for foot massage sofa cha

1.0 INPUT REQUIREMENTS

1.1 VOLTAGE

The range of input voltage is from 100 to 240VAC .

1.2 FREQUENCY

The range of input frequency is from 47 to 63 Hz .

1.3 CURRENT

The maximum input current is1.6A at 100Vac at load2.0A

1.4 INRUSH CURRENT

The inrush current will not exceed 50 A at 240Vac input, cold start, 25℃.

1.5 Input Voltage

Testing Condition:AC100V,+/-10% or AC240V,+/-10% @50/60Hz, no load.

Loading	Input	Input Power
No load	AC100V,+/-10%	Max. 0.5 W
No load	AC240V,+/-10%	Max. 0.5 W

1.6 Standby Input Current

1.6.1 Testing Condition: AC100V,+/-10% or AC240V, +/-10% @50/60Hz, no load

Loading	Input Current
No load	Max. 50mA

1.6.2 Efficiency(Input Voltage:115VAC or 230VAC)

The efficiency (watts out / watts in) is higher than 85 % typical while

measuring at nominal line and rated load.

2.0 OUTPUT REQUIREMENTS

2.1 Static load:

Input Voltage	Voltage	Min load	Rated load	Cut Off Current
110-240VAC	DC29 V	0A	2.0A	6.5A-11 A

2.2 Output voltage:

The output voltage shall be statically regulated for all combinations of load, line and environment including cross regulation as shown.

Output#	Voltage/Current	Range	Tolerance
1	+29V/0A	28V-31V
	+29V/2A	28V-31V

2.3 Ripple and Noise

Output#	Voltage /Current	Maximum ripple & Noise
1	+29.0V / 2.0A	200 mVp-p (Ripple)
		400 mVp-p (Noise)

Measument is done by 20MHz bandwidth oscilloscope and terminated each output with a 10uF capacitor and a 0.1uF capacitor.

Condition: Input 100-240Vac at load current 2A

2.4 Temperature coefficient

5%/℃ typical on all output.

3.0 PROTECTION REQUIREMENT

3.1 Over-voltage protection:

The power supply shall be shutdown when output voltage reaches to its over – voltage protection trigger point 38V

3.2 Over-current protection:

When operating any output under any line condition, into an over load condition for an indefinite period of time. The power supply shall be self – recovering when fault condition remove.

4.0 ENVIRONMENTAL CONDITIIONS

4.1 Operating

The power supply shall be capable of operating continuously in any mode without performance deterioration in the following environmental conditions.

4.1.1 Ambient Temperature:0℃ ~40℃

4.1.2 Relative Humidity: 20% ~ 95%

4.2 Non - operating:

The power supply shall be capable of standing the following environmental conditions extended periods of time, without sustaining electrical or mechanical damage and subsequent operational deficiencies:
