3.3 V600mA Isolating Switch Power Supply

FOB Price

US$ 0.8 - 1.68 / Piece

100 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	OEM
Model Number	3.3 V600mA isolating switch power supply	Output Type	DC
Connection	Plug In

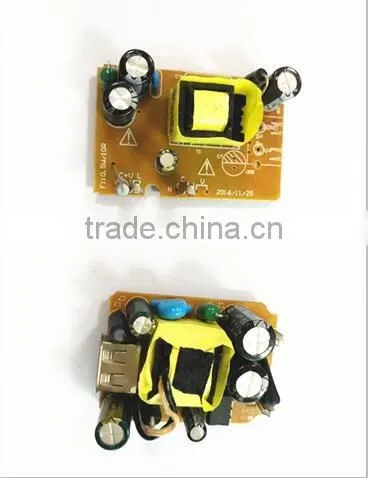

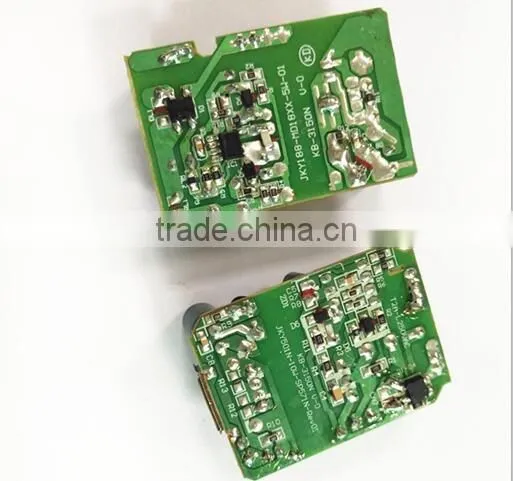

3.3 V600mA isolating switch power supply

Product Description
Input&Output	Voltage/Frequency Range	100~240VAC 50/60Hz
	Current	≤0.3A
	Output	3V~24V;01A~2A;5W(Max)
	Line/Load Regulation	±2% / ±5%
	Ripple&Noise(Max)	≤200mV
Reliability	Withtand Voltage	I/P-O/P:3KVAC,60s, 5mA
	Leakage Current	0.25mA / 240VAC
	Isolation Resistance	I/P-O/P:100M Ohms / 500VDC / 25 / 70% RH
	MTBF	30000hrs full load,based on MIL-HDBK-217F(25℃) (30000hrs MIL-HDBK-217F(25℃)
	Temperature Rise	80~100% load, 4hours
Protection	Over Load	>105% rated output power
	Over Current	110%-150% rated output current
	Short Circuit	Recover automatically after fault condition is removed
Safety	Safety Standard	UL60950-1, CSA22.2,IEC/EN60950 IEC/EN60065
	EMI	Compliance to FCC part15 class B, EN55022, EN61204-3 class B
	EMS Immunity	Compliance to EN61000-4-2,3,4,5,6,8,11, ENV50204
	Harmonic Current	Compliance to EN61000-3-2,3
EnViroment Protection & Efficiency	RoHS	Compliance to CPSIA(H.R.4040)
	No Load power consumption	<0.3W
	Efficiency	IV or V
Package	Dimensions	56.8×39.7×46.8mm (LWH)
Package	Packing	PE bag or white box(pe bags + paper box)
Environment	Working Temp	0 ~ +50 (℃)
	Working Humidity	20% ~ 90% RH non-condensing
	Storage Temp	-20~85(℃),10 ~ 95% RH

Welcome to OEM/ODM

Free sample

Sample time : 3-5days

Delivery time:7-10days

Trade terms: FOB shenzhen

Payment : T/T ,L/C,PAYPAL ,Western Union

All product warranty 3 years(One years damage manufacture one to one exchange.)

Printing you LOGO and stick you modle also ok .
