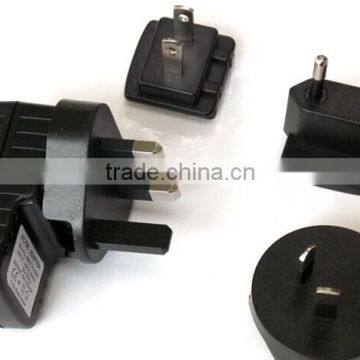

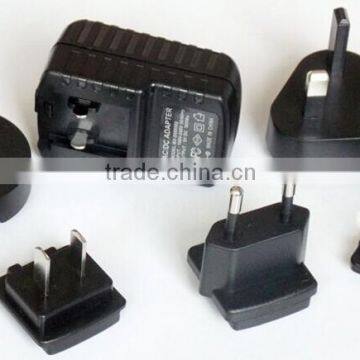

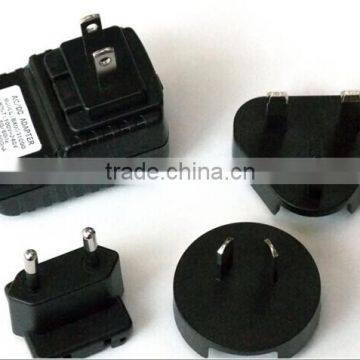

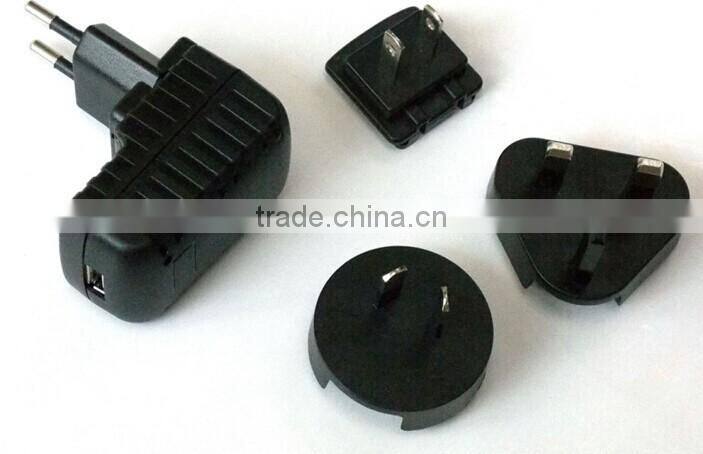

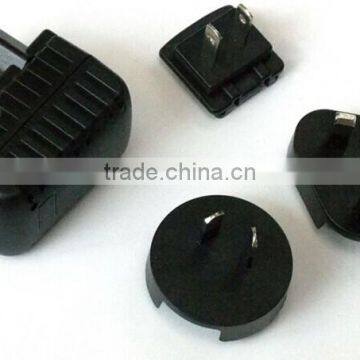

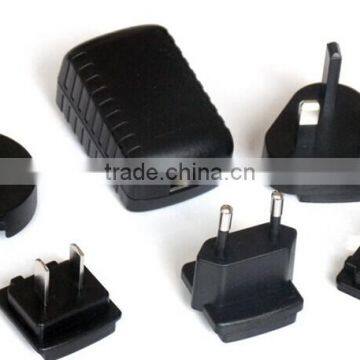

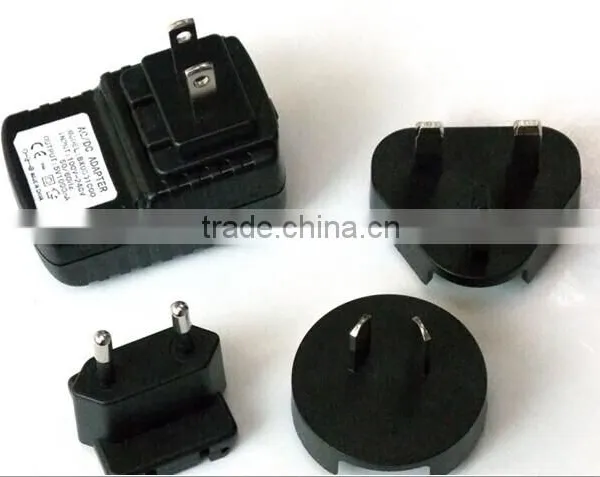

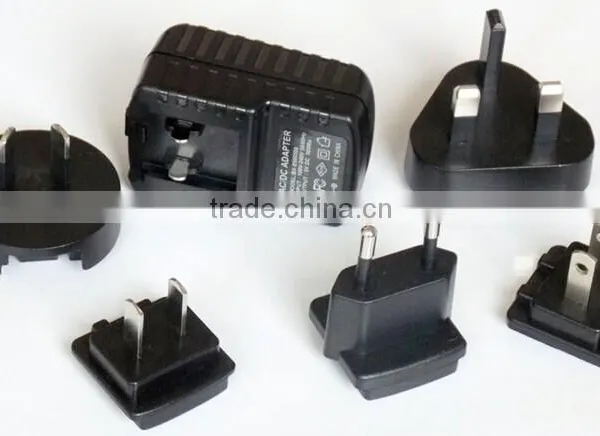

5W 10 W, DoE Level VI & CoC Tier 2 Efficiency, USB Input, Interchangeable Input Blades, Wall Plug Adapter, Ac-Dc Power supply
USD $2.5 - $5
/ Piece
200 Pieces(Min.Order)
- 200000 Piece / Pieces per Month
- shenzhen
- T/T Credit Card
You May Like
-
5 W, DoE Level VI & CoC Tier 2 Efficiency, USB Input, Interchangeable Input Blades, Wall Plug Adapter, Ac-Dc Power Supply
-
AC to AC Wall Adapter Transformer 12 Volt @ 1500mA Black Straight 2.1mm Female Plug
-
USA 3-Prong AC Power Cord 3Pin Adapter Cable Black New 1.5M for stage lights
-
White color 5V 1A EU Plug USB AC Power Wall Charger Adapter For Samsung US/EU Charger for phone 6 plus 7 plug
-
solar SEA cable pig tails cable and 5v 1a car charger 1.2M 1.5M 2M use for solar
-
Euro big power car charger 12v to 24V 300W car charger for automobile and motorcycle with SAE connecter pig tails
Product Details
| Place of Origin | Guangdong, China | Brand Name | OEM | |
| Model Number | Power Adapter | Output Type | DC | |
| Connection | Plug In |
Product Description

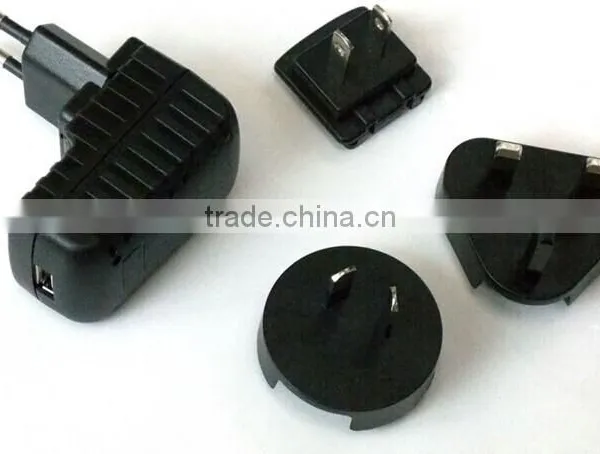

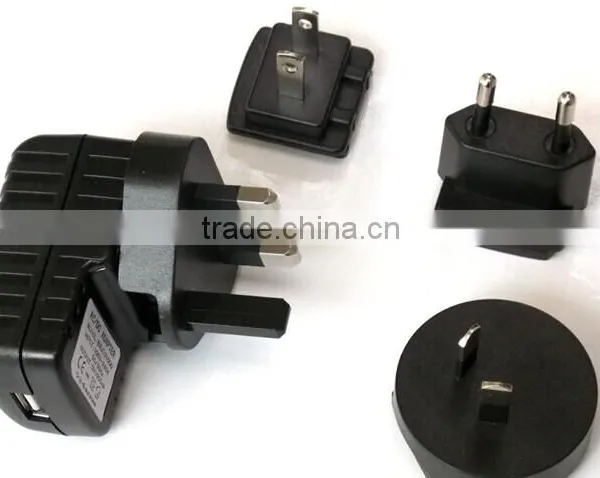

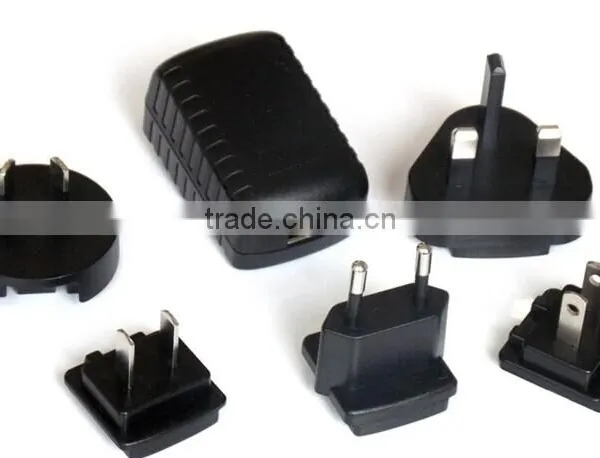

5W 10 W, DoE Level VI & CoC Tier 2 Efficiency, USB Input, Interchangeable Input Blades, Wall Plug Adapter, Ac-Dc Power supply
| 1.INPUT REQUIREMENT | ||||
| ITEM | SPECIFCATION | MIN | TYP. | MAX |
| NORMAL AC INPUT VOLTAGE | SINGLE PHASE | 100Vac | 110Vac/220Vac | 240Vac |
| AC INPUT VOLTAGE RANGE | SINGLE PHASE | 90Vac | 110Vac/220Vac | 264Vac |
| AC INPUT FREQUENCY | SINGLE PHASE | 47Hz | 50/60Hz | 63Hz |
| AC INPUT CURRENT | TYPICAL INPUT VOLTAGE& OUTPUT AT FULL LOAD. | 550mA | ||
| AC INRUSH CURRENT | TYPICAL INPUT VOLTAGE& OUTPUT AT FULL LOAD , 25°C. | 30A | ||
| EFFICIENCY | TYPICAL INPUT VOLTAGE& OUTPUT AT FULL LOAD | 78% | ||
| 2.OUTPUT SPECIFICATION | ||||
| ITEM | SPECIFCATION | MIN | TYP. | MAX |
| NORMAL DC OUTPUT VOLTAGE | 12Vdc | |||
| DC OUTPUT VOLTAGE RANGE | TYPICAL OUTPUT VOLTAGE | 11.4V | 12.6V | |
| LOAD CURRENT RANGE | 2.0A | |||
| PEAK LOAD CURRENT | TIME<60S | |||
| RIPPLE | TYPICAL INPUT VOLTAGE , TYPICAL LOAD CURRENT , 25°C | 120mV | ||
| HOLD-UP TIME | AT TYPICAL INPUT VOLTAGE AND FULL LOAD | 10mS | ||
| TURN-ON DELAY | TYPICAL INPUT VOLTAGE AND TUP LOAD CURRENT | 3S | ||
| OVER CURRENT PROTECTION | AUTO RECOVERY | |||
| SHORT CIRCUIT PROTECTRON | THE ADAPTER SHALL NOT DAMAGE BY SHORT THE DC OUTPUT TO GROUND | |||
| OVER VOLTAGE PROTECTION |
Welcome to OEM/ODM
Free sample
Sample time : 3-5days
Delivery time:7-10days
Trade terms: FOB shenzhen
Payment : T/T ,L/C,PAYPAL ,Western Union
All product warranty 3 years(One years damage manufacture one to one exchange.)
Printing you LOGO and stick you modle also ok .
Credit is the basis , Quality is the first
Power adapter ,Charger ,Power supply Manufacture
Skype:beryl--qin
What's app: 86 13412619588
QQ:1767294269
Wechat: beryl18
