Make Plastic Nylon Gear
- 300000 Piece / Pieces per Month
- Tianjin
- T/T
- AM29F010-90JC Car Engine Computer Board ECU EEPROM Chip
- DIP22 ELMOS 10013G Car ECU board repair Chip
- 851A Automotive engine control electronic IC Auto MCU chip
- M35080 080DOWQ 080D0WQ chip for BMW odometer dashboard
- M35080 35080V6 BMW Car computer IC M35080 dashboard chip
- TLE6251G Car Computer Board CPU Processor Special Repair Parts
Product Details
Place of Origin: | Hebei, China | Brand Name: | YZ | Model Number: | different sizes |
Product Description
Make Plastic Nylon Gear Product Description
Our advantages:
1. Over 15 years experience in mold making & plastic injection molding.
2. One-Stop Service, both mold making and plastic product available
3. Advanced Produce Equipments
4. Strict Quality Control
5. ISO9001:2000,ISO/TS 16949:2002, British SGS QS9000 Certification Manufacturer,
6. High quality, Low price, Prompt delivery, Superior service
NO. | Name | Material | NO. | Name | Material | |
1 | Gear Parts Top Plate | ABS | 1 | Gear Parts Contact | ph.bronze t=0.3 | |
2 | Ring Gear | PA66 | 2 | Gear Parts Contact | TPR | |
3 | Gear Parts Output Hub | PA66+30%GF | 3 | Gear Parts Gear Parts Connector Cap | ABS | |
4 | Gear Parts Sun Carrier | PA66 | 4 | Gear Parts Connector Base | ABS | |
5 | Gear Parts Pinion | POM M90 | 5 | Gear Parts Cluster Gear | PA66 | |
6 | Gear Parts Ldle Gear | PA66 | 6 | Gear Parts Support Coller | ABS | |
7 | Gear Parts Planet Gear | POM M90 | 7 | Gear Parts Lower Shell | ABS | |
8 | Gear Parts Shaft | 45# Steel | 8 | Gear Parts Upper Shell | ABS | |
9 | Planet Gear Cover | PA66+30%GF | 9 | Gear Parts Planet Gear | PA66+30%GF |
Success Case:High Precision Gear Parameter Description
NO. | TERM | VALUE | NO. | TERM | VALUE | |
1 | modular pitch | 0.5 | 1 | modular pitch | 0.5 | |
2 | pressure angle | 20° | 2 | pressure angle | 20° | |
3 | number of teeth | 12 | 3 | number of teeth | 40 | |
4 | pitch diameter | 6 | 4 | pitch diameter | 20 | |
5 | major diameter | 7.3 | 5 | major diameter | 21.45 | |
6 | minor diameter | 5.05 | 6 | minor diameter | 19.2 | |
7 | addendum | 0.65 | 7 | addendum | 0.725 | |
8 | dedendum | 0.475 | 8 | dedendum | 0.40 | |
9 | addendum modification coefficient | 0.3 | 9 | addendum modification coefficient | +0.45 | |
Grade JGMA GRADE 3 | Grade JGMA GRADE 3 |

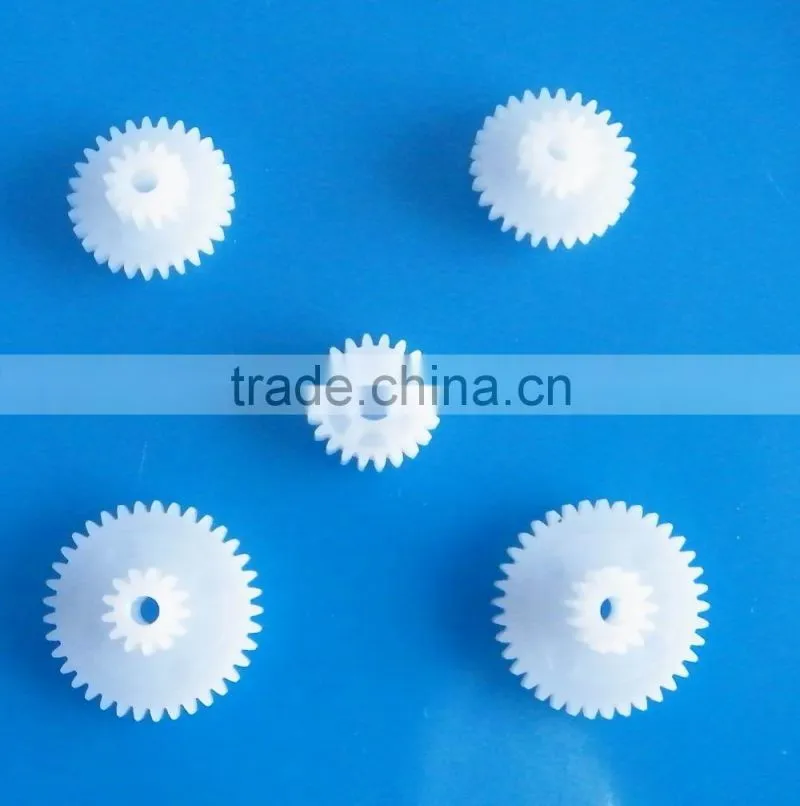

Make Plastic Nylon Gear picture
We are looking forward to cooperating with you and becoming your good partner, welcome to contact us!
