Waterproof Rgb Led Pixel Light 16x16 Dot Matrix Led Display for Nightclub Decor

Waterproof Rgb Led Pixel Light 16x16 Dot Matrix Led Display for Nightclub Decor thumbnail-1
Waterproof Rgb Led Pixel Light 16x16 Dot Matrix Led Display for Nightclub Decor photo-1
US$ 50 - 200 MOQ: 1 Square Meter
Key Specifications
Get Latest Price
LED Light Source:
RGB
Type:
LED Bar Lights, 16x16 dot matrix led display
Input Voltage(V):
12V
Contact Supplier Request Quote Chat Now
Shenzhen Reidz Tech Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source RGB
Input Voltage(V) 12V
Lamp Power 80W
Lamp Luminous Flux(lm) 18-20lm/led
Color Temperature(CCT) 5000-8000
Working Temperature(℃) -10, 50
Working Lifetime(Hour) 80000
Lamp Body Material ABS
Certification CE
Emitting Color RGB
Place of Origin Guangdong, China
Brand Name Reidz
Model Number RZ-DGY-P125

CE RoHS  Waterproof rgb led pixel light 16x16 dot matrix led display for nightclub decor

Company Information

 We are a professional manufacturer of led decorative products for nightclub,disco, bar, KTV,etc. stage background decoration in China for near 8 years.



Type of rgb led pixel light:

Outdoor&Indoor wall / ceiling Led Pixel Light /  led point light source for  nightclub, disco, KTV decoration .



Product Description

 Features and advantages of rgb led pixel light:





1): A new type of energy-saving and environmental protective lights.

2): Using imported ultra-high brightness chip as light soure

3): Builtin microcomputer chip, cansynchronize full-color gradual,transiting,scaning,runing wate.

4): It is a supplement for linear light soure and the floodlighting, the beautuful shape of which could meet the physical design requirements for point, line, and plane

5)Used in: outdoor led video wall light is Applicable for building, amusement parks, large billboard, walls, squares, streets, bars and so on.





Parameters of rgb led pixel light:



1. led point light
Pixel pitch P125
Pixel composition 6R,3G,3B
6R,3G,3B R 626-628,G 518-520,B 466-468
Outline dimention(mm) 50 * 50 * 50
Outline material pc
Weight 100g/pc
Protection grades IP65
Working temperature(ºC) -10~+50
Humidity(RH)  Up to 95
Stored temperature (ºC)  -30~+70
Power consumption (pcs) 1.2W
Pixel wall
Pixels Pitch(mm) 125
quantities in  1S.Q.M 8(L)* 8 (H)
2.Packaging
Packing Way 200pc/carton
Packing box material Carton
Packing box size (mm) 1000 * 500 * 300
Weight of 1carton with 200pcs 20kg
3.electricity parameter
Pixel density(dots/M2) 64
White Balance Brightness(cd/m2) Max 600 Average  ≥400
Color temperature(K)  5000—8000 (choice by user)
Brightness Adjusted 100 grade by software, or by Auto-optic induced.
View Angel Horizontal 160° Vertical160°
Best viewing distance(m)  30-1000
Communication distance(m) Communication distance(m)
LED driving method  Constant driving current
Gray Grades 256 levels for each color
Display Color 127777216
Refresh Frequency (Hz) ≥400
Picture display method Dots to dots display synchronized with CRT
Signal interface  DVI
Screen Lifetime(hours) ≥100,000
Maintance way Back-maintained, modules displaced
Switch power supply Switch power supply
Power Consumption (W/m2 )

Max 80, Average  ≥55

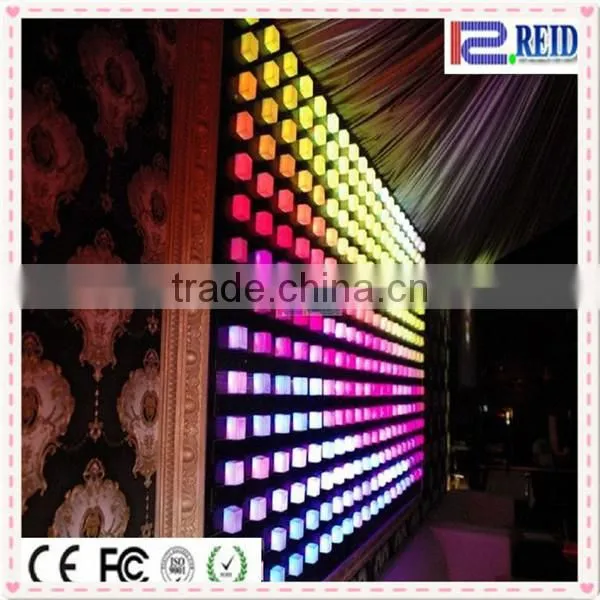

Picture of  rgb led pixel light:

Waterproof rgb led pixel light 16x16 dot matrix led display for nightclub decorWaterproof rgb led pixel light 16x16 dot matrix led display for nightclub decor

Waterproof rgb led pixel light 16x16 dot matrix led display for nightclub decorWaterproof rgb led pixel light 16x16 dot matrix led display for nightclub decor

Waterproof rgb led pixel light 16x16 dot matrix led display for nightclub decorWaterproof rgb led pixel light 16x16 dot matrix led display for nightclub decorWaterproof rgb led pixel light 16x16 dot matrix led display for nightclub decor







Packaging & Shipping

 Package of rgb led pixel light:





Waterproof rgb led pixel light 16x16 dot matrix led display for nightclub decor Waterproof rgb led pixel light 16x16 dot matrix led display for nightclub decor









Our Services

   CE RoHS certificate, 2 years warranty, Customized is ok for   rgb led pixel matrix .



Certificate:



Waterproof rgb led pixel light 16x16 dot matrix led display for nightclub decorWaterproof rgb led pixel light 16x16 dot matrix led display for nightclub decor



 Waterproof rgb led pixel light 16x16 dot matrix led display for nightclub decorWaterproof rgb led pixel light 16x16 dot matrix led display for nightclub decor









FAQ

 1.Is it used indoor or outdoor?

 -Indoor or outdoor is ok.



2.What is the warranty?

 -2 years warranty.
