Night Club Decoration DMX Control Led Pixel Point Light
US$ 1 - 5
MOQ: 10 Pieces
Key Specifications
Get Latest Price
LED Light Source:
LED Modules
Type:
LED Matrix Light
Input Voltage(V):
DC24V
Payment & Shipping
Payment Methods:
Port of Shipment:
ShenZhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Wholesale Grey Goose Vodka Brand Led Ice BucketUS$ 5 - 38MOQ: 100 Pieces -
DMX Control 3D Effect Disco Lighting LED Meteor LightsUS$ 10 - 26MOQ: 10 Pieces
-
Nightclub Lighting 3D Led Meteor Tube Led Disco LightUS$ 10 - 26MOQ: 10 Pieces
-
High Quality Dmx Disco/club Led 3d Tube Lights Waterproof Indoor DecorationUS$ 10 - 26MOQ: 10 Pieces
-
Night Club Dmx 3d Tube LightsUS$ 5 - 25MOQ: 10 Pieces
LED Light Source
LED Modules
Type
LED Matrix Light
Input Voltage(V)
DC24V
Lamp Power(W)
1.2
Lamp Luminous Flux(lm)
12cd
Lamp Luminous Efficiency(lm/w)
85
Color Temperature(CCT)
Other, Full color
Working Temperature(℃)
-30, 70
Working Lifetime(Hour)
100000
IP Rating
IP65
Certification
CE
Place of Origin
Guangdong, China
Brand Name
REIDZ
Model Number
RZ-DGY-P125mm
Emitting Color
RGB
P125mm Madrix led pixel light 1.2w IP65 DC24V
1---Product Name:
Outdoor&Indoor Led Video Pixel Light
2---Features of Led Pixel Light:
1): A new type of energy-saving and environmental protective lights.
2): Using imported ultra-high brightness chip as light soure
3): Builtin microcomputer chip, cansynchronize full-color gradual,transiting,scaning,runing wate.
4): It is a supplement for linear light soure and the floodlighting, the beautuful shape of which could meet the physical design requirements for point, line, and plane
3---Application of Led Pixel Light:
Outdoor led video wall light is Applicable for building, amusement parks, large billboard, walls, squares, streets, bars and so on.
4---Parameter of Led Pixel
| 1.LED pixel light | |
| Pixel led | P125 |
| Pixel composition | 6R,3G,3B |
| Wave length(nm) | R 626-628,G 518-520,B 466-468, |
| Outline dimention(mm) | 50 * 50 * 50 |
| Outline material | pc |
| Weight | 100g/pc |
| Protection grades | IP65 |
| Working temperature(ºC) | -10~+50 |
| Humidity(RH) | Up to 95 |
| Stored temperature (ºC) | -30~+70 |
| Power consumption (pcs) | 1.2W |
| Pixel wall | |
| Pixels Pitch(mm) | 125 |
| quantities in 1S.Q.M | 8(L)* 8 (H) |
| 2.Packaging | |
| Packing Way | 200pc/carton |
| Packing box material | Carton |
| Packing box size (mm) | 1000 * 500 * 300 |
| Weight of 1carton with 200pcs | 20kg |
| 3.electricity parameter | |
| Pixel density(dots/M2) | 64 |
| White Balance Brightness(cd/m2) | Max 600 Average ≥400 |
| Color temperature(K) | 5000—8000 (choice by user) |
| Brightness Adjusted | 100 grade by software, or by Auto-optic induced. |
| View Angel | Horizontal 160° Vertical160° |
| Best viewing distance(m) | 30-1000 |
| Communication distance(m) | Internet Wire 120 Fiber Cable 1000 |
| LED driving method | Constant driving current |
| Gray Grades | 256 levels for each color |
| Display Color | 127777216 |
| Refresh Frequency (Hz) | ≥400 |
| Picture display method | Dots to dots display synchronized with CRT |
| Signal interface | DVI |
| Screen Lifetime(hours) | ≥100,000 |
| Maintance way | Back-maintained, modules displaced |
| Switch power supply | Single Phase AC 110V/60Hz or 220V/50Hz |
| Power Consumption (W/m2 ) | Max 80, Average ≥55 |

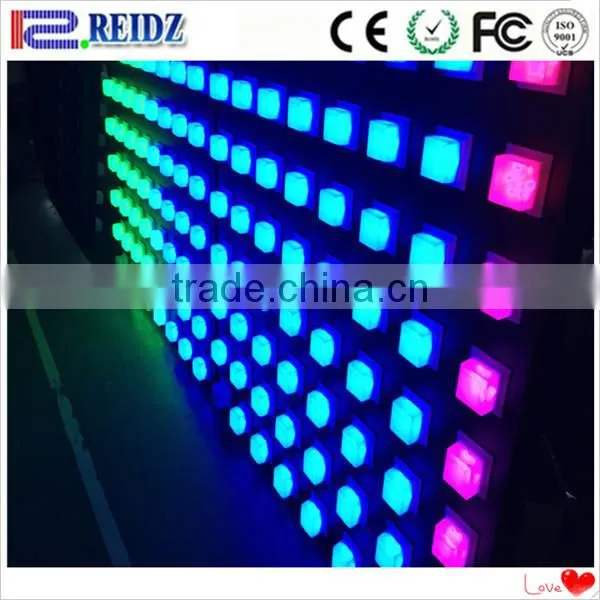

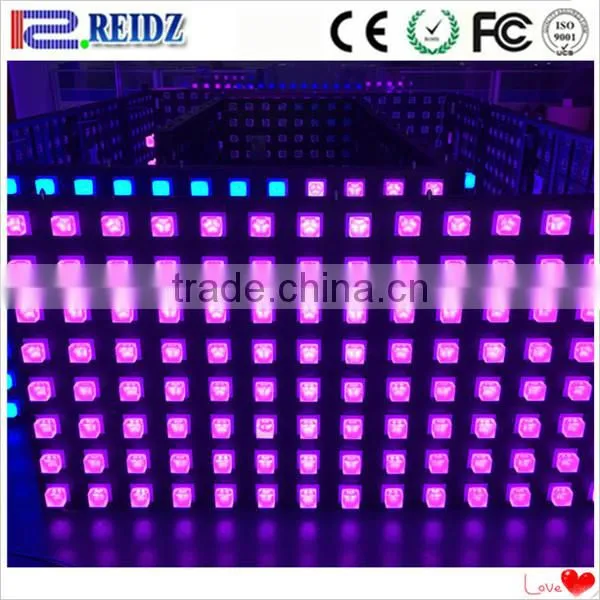

Real Segment Pic for the Outdoor Led Pixel Video:
Led Pixel Module:

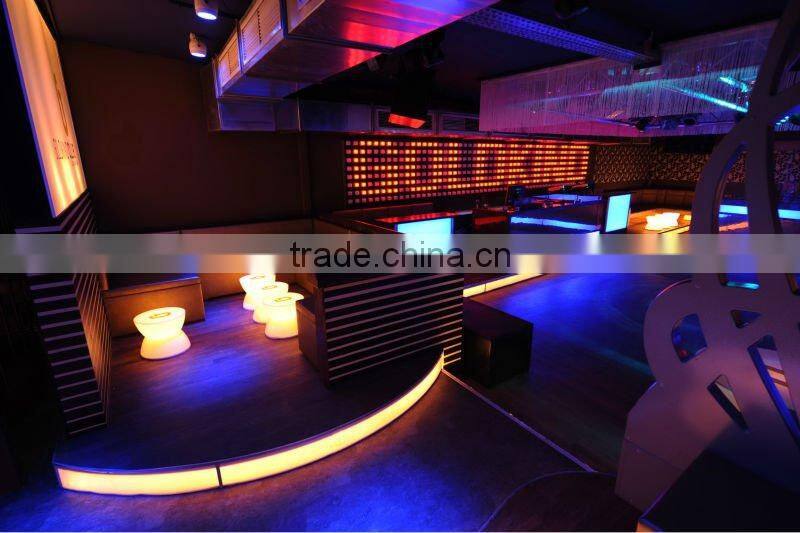

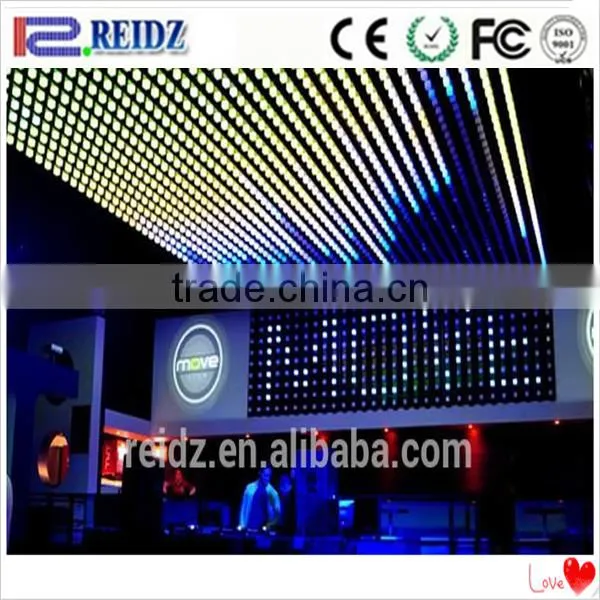

Led Pixel Vedio Applications:
