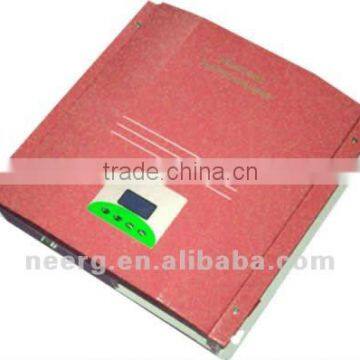

1kw Off-grid Hybrid Wind Solar Charge Controller With LCD Dispaly

1kw Hybrid Charge Wind Solar Controller

 Modular design, simple, powerful and stable
PWM charging with voltage and current regulation,users can set the brake speed precisely
High quality components to guarantee normal operation under -30°C
Multiple protections including TVS lightening protection, over-charge, over-discharge, short circuit
and anti-reverse protections
LCD displays for system operation status and parameters
Optional low-speed turbine charging function
Optional computer communication function: additional RS232, RS485 interfaces and monitoring software
Rated wind turbine power: 1000w
Rated solar power: 300w
System voltage: 24/48v
Max. wind turbine input current: 30A
Max. wind turbine input power: 1500w
Unload voltage/current: 28v/0-25A adjustable
Max. PV charge current: 10A
Work temp. and humidity:
-20-+55°C/35-85%RH(non-condensing)
Weight: 19.0kg
