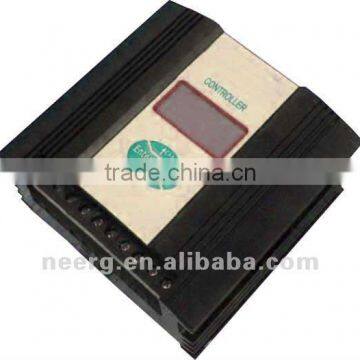

300w Hybrid Wind Solar Charge Controller with LCD Display

300w Hybrid Charge Controller

Modular design, simple, powerful and stable
PWM charging with voltage and current regulation,users can set the brake speed precisely
High quality components to guarantee normal operation under -30°C
Multiple protections including TVS lightening protection, over-charge, over-discharge, short circuit
and anti-reverse protections
LCD displays for system operation status and parameters
Optional low-speed turbine charging function
Optional computer communication function: additional
RS232, RS485 interfaces and monitoring software

Rated wind turbine power: 300w
Rated solar power: 150w
Max. wind turbine input current: 40A
Max. wind turbine input power: 500w
Unload voltage/current: 14v/0-25A adjustable
Max. PV charge current: 10A
Work temp. and humidity: -20-+55°C/35-85%RH(non-condensing)
Weight: 2.0kg
