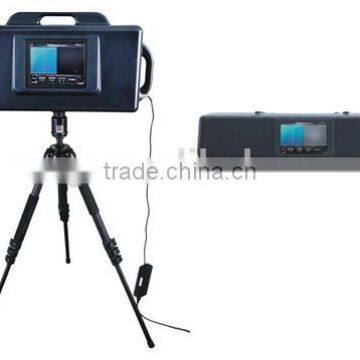

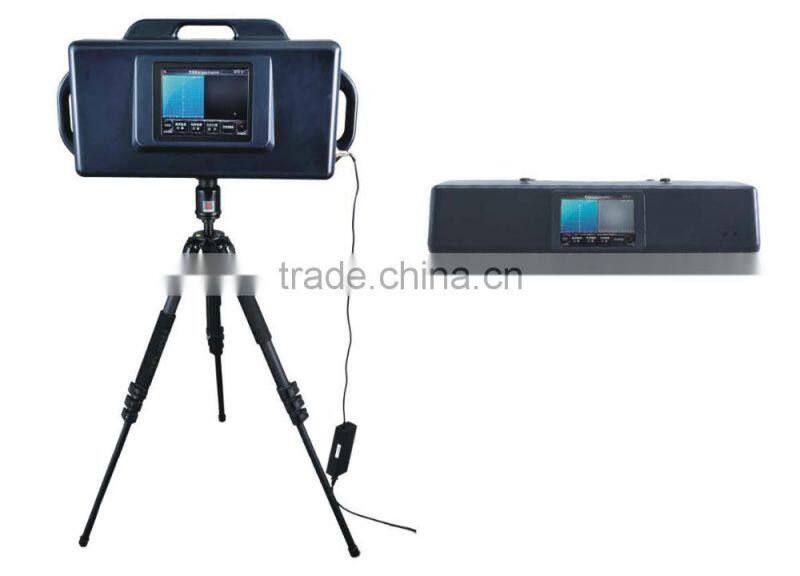

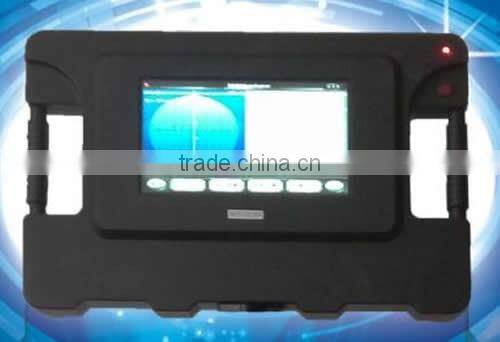

Portable Radar Explorer for room detection cross walls
The radar explorer is portable, durable and highly precise equipment specifically designed for public security, armed police, national security and other special forces. The ultra wide band signal can pass through most common walls like door, hollow brick and clay brick, to fully cover the space at the back of wall, quickly evaluate the indoor condition, and accurately locate the unknown people and other moving objects.
Applications:
1. Monitoring buildings: to detect the location of individuals; long-time monitoring to decide when to enter, figure out hidden living objects.
2. In unknown situation, rapidly detect the conditions after the wall and remove the risks.
3. Search and rescue for the locations of falling buildings, fire or strong smoke, and detect lives.
4. Customs inspection: search for hidden illegal immigrants inside wooden containers, and detect if there are living objects moving outside the wooden container.
Main Features:
1. Strong penetration, able to pass through most common walls.
2. Use advanced signal processing system, can accurately capture humans and moving objects at various states in complex situation.
3. Multi-target detection capability, accurately positioning and tracking.
4. Target trajectory video playback, data storage.

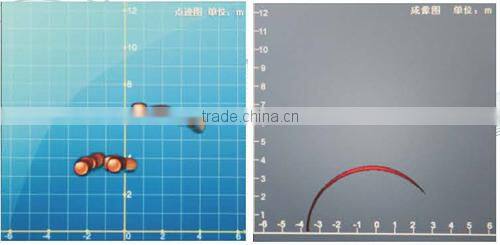

5. 3D side-view and flat-view, color display.
6. Wireless network connection, background monitoring.
7. Built-in lithium battery, can work for 3 hours
8. Simple and intuitive user interface, easy operation.
9. Easy to install and operate
10. System can be customized to meet special requirements.
Technical Specifications:
Technical Specifications:
Detection distance | 15 m (penetrate 24 cm clay brick wall) |
Detection angle | Horizontal>+/-60 degrees, vertical > 45 degrees |
Range resolution | 0.3m |
Positioning accuracy | CQLD-1 0.8 m (6 m) |
Display | integrated display 2D, 3D color display, 1366 x 768 resolution |
Operation mode | touch screen |
Detection objects | Active state of human body (limb jiggle and swing, move), up to 3 - 4 human bodies |
Power supply | high capacity of lithium battery (220VAC charging) |
Work time | Over 3 hours continuous |
Size | 51x32x7.5cm |
Weight | About 3kg |
Penetration wall | solid clay brick, hollow brick, wall, wood, gypsum board, reinforced concrete (subject to reinforcement spacing) |
Work environment | Can work over rough surfaces, at -20 to +55oC, IP53 |
