Type S78-8
Machine Anti-Vibration Mounts
FOOT:
1040 Steel, Painted Yellow
SCREW:
1040 Steel, Galvanized
BASE PAD:
Vulcanized NBR Rubber
SCREW FLANGE:
1040 Steel, Black Oxide
FOR LOADS UP TO:
35000 N (7868 lbf)
OPERATING TEMPERATURE:
-25°C to +110°C (-13°F to +230°F)
FEATURES:
- 75 Shore NBR Rubber Base
- Fixed Screw
- Corrosion Resistant
- Chemical Resistant
Application :
Metalcutting machine ,Numerical control machines ,Metalforming machines ,Rubber and plastic machines ,Spinning machines and Food process machines.
Feature of product:
Machines are stationary on floor without anchors. Therefore the cost and time of installation can be greatly saved.
The layout of machines can be changed freely according to the modification of manufacturing process. So it is easy to design the flexible production line.
It is convenient and quick to adjust the level of machine.
Vibration and noise can be reduced and isolated by using this product.
It can resist oil and corrosion greatly.
Note:
1. Every mounts should have loads when adjust the level of machine .
2. Flat steel plate should be added between the lowest mount and base of machine when the level difference of floor is great and adjusting height of is not enough. Then level of machine can be adjusted .
3. The level of machine should be readjusted after two weeks in use when it is used firstly .
4. The mounts should be removed before the machine is lifted when the position of machine is changed .

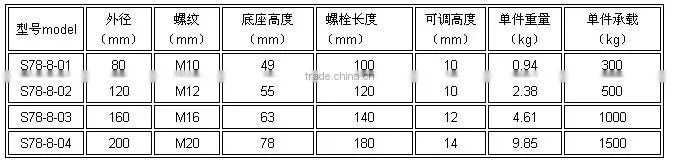

Specification and chart for choice:
