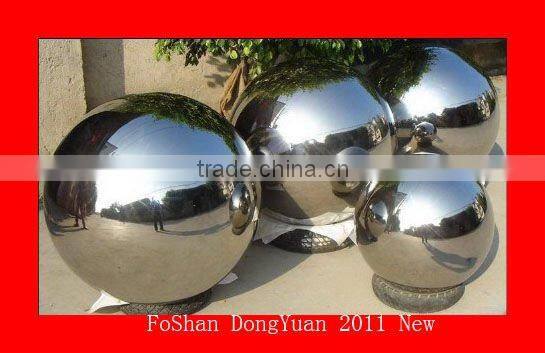

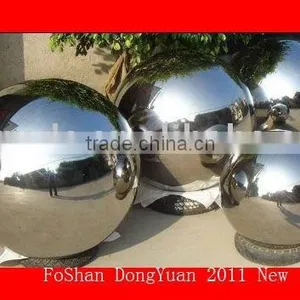

big size stainless steel ball

Specifications

1.material:carbon /chrome /bearing /valve ball
2.201/304/420/316L stainless steel ball
3.diameter customized





AISI 1010/1015 Carbon Steel Balls

• Applied Area 1010/1015 carbon steel ball is an ordinary steel ball,it has low price,high precision and wide use. It is used in bicycle,bearings,chain wheel, craftwork, shelf, versatile ball,bags,small hardware,it can also be used for rubbing other medium.
• Speciality It is magnetic, it must be plated when it is out of surface,it can be plated with zinc,glod,nickle,chrome and so on.The frictional resistance is strong,the HRC is 50-55.

Comparison The frictional resistance and hardness is worse than bearing steel ball(the HRC of GCR15 steel ball is 60-66):so the life is shorter.



Chymic component of 1010 carbon steel balls (C10)
C	0.08%--0.10%
Si	-------
Mn	0.30%--0.6%
P	0.040% max.
S	0.050% max.



304 Stainless Steel Balls Applied Area 304 stainless steel ball is the most widely used in the market, it can be used in iatrical instrument,chemical industry, avigation. Plastic hardware: scent bottle, sprayer, valve, nail polish, switch, washing machine, fridge, air condition, medicinal materials,automotive fittings,bearing, nursing bottle and so on. Speciality A representative of Austenitic stainless steel.it is nonmagnetic,but magnetic after rolling, and the magnetism can be taken out, HRC≤26.It has good antirust and anticorrosive capability. Comparison 304HC stainless steel ball is softer and can be pocessed more easily than 304 stainless steel ball, while 304L stainless steel ball has stronger antirust and anticorrosive capability than the above two, It can be jointed easily.
Chymic component of 304 stainless steel balls
C	0.08% max.
Si	1.00% max.
Mn	2.00% max.
P	0.045% max.
S	0.030% max.
Cr	17.00 to 19.00%
Molybdenum	-----
Ni	8.00 -- 10.00%



316 Stainless Steel Balls

• Applied Are 316 stainless steel ball is used in many special industry as iatrical instrument,chemical industry, avigation, scent bottle, sprayer, valve, nail polish,mobile phone fittings.
• Speciality Austenitic stainless steels,It is the best steel ball in the steel ball area,HRC≤26,its Capability is better than 304 stainless steel ball.
• Comparison 316L stainless steel ball is more soft and shining than 316 stainless steel ball and can be used in persons’ decoration.

Chymic component of 316 stainless steel balls
C	0.08% max.
Mn	2.00% max.
P	0.045% max.
S	0.030% max.
Si	1.00% max.
Cr	16.00--18.00%
Ni	10.00 --14.00%
N	0.10% max.
Mo	2.00--3.00%



420 Stainless Steel Balls

• Applied Area 420 stainless steel ball is used in the industry of high precision and antirust: motorcycle fittings, chain wheel,stainless steel bearings, plastic bearings, craftwork, valve, petroleum and so on.
• Speciality It is also called stainless iron,it is magnetic and has good antirust capability.The HRC is 50-55

Chymic component of 420 stainless steel balls
C	0.26-0.35%
Cr	12.0-14.0%
Si	1.00%
Mn	1.0% Max.
P	0.035%
S	0.030%
Mo	--------
