Self Adhesive Roofing Basement Waterproof Membrane
- shenzhen
You May Like
Product Details
| Place of Origin | Guangxi, China | Brand Name | Qinglong | |
| Model Number | PCM |
Product Description
Self adhesive Roofing Basement Waterproof Membrane
Description
PCM bitumen roof wateproof membrane is a modified bitumen base sheet consisting of polymer modified asphalt added viscosifier inside covering with different upper separated materials and underside with silicone antisticking layer. According to different upper surface, it includes three types: PE film surfacing, sand surfacing and antisticking surfacing . There have two kinds of thickness: 3.0 mm and 4.0 mm.
Where to use
Roofs or undergrounds;
Swimming pools, fire pools and reservoirs;
Subways or tunnels;
Open fires-forbidden construction areas;
Cold construction areas.
Advantages
Self adhesive, safe and environment-friendly;
Goodtensilestrength and elongation;
Strong adaptability for substrate shrinkage, deformation and cracks;
It will be a high-strength membrane to resist water;
Penetration-resisting and corrosion-resisting;
Excellent flexibility in low temperature;
Strong self healing ability for penetration and cracks.
Standard
23441-2009
Typical properties
Item | Requirement | ||||
Soluble matter content, g/m2 ≥ | 3 mm | 2100 | |||
4 mm | 2900 | ||||
Tensile property | Tensile strength, N/50mm ≥ | 3 mm | 600 | ||
4 mm | 800 | ||||
Elongation at the maximum tensile force, % ≥ | 40 | ||||
Resistance to heat℃ | 70, No sliding, flowing, dripping | ||||
Flexibility at low temperature, ℃ | -30 | ||||
No cracking | |||||
Water tightness | Pass at 0.3 MPa, 120 min | ||||
Sheering properties N/50mm | Between membranes ≥ | 1.0 | |||
Between membrane and aluminum plate ≥ | 1.5 | ||||
Shank watertight | Pass | ||||
Immersed in oil, pieces ≤ | 2 | ||||
Holding Power/ min ≥ | 15 | ||||
Thermal ageing | Elongation at the maximum tensile force, % | 40 | |||
Flexibility at low temperature, ℃ | -28 | ||||
No cracking | |||||
Sheering properties between membrane and aluminum plate, N/mm | 1.5 | ||||
Dimension stability, % ≤ | 1.0 | ||||
Self-adhesive bitumen re-peel strength, N/mm ≥ | 1.5 | ||||

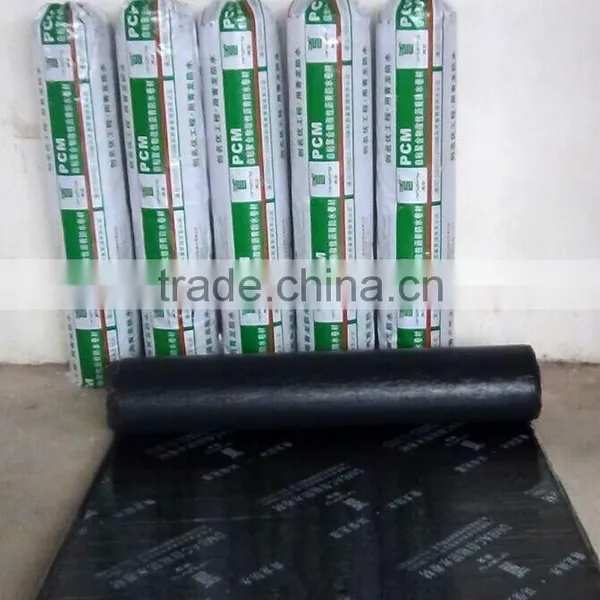

Packaging
PCM material is packed in rolls with plastic bags or cartons
Thickness | Roll Size | Rolls / Pallet | Pallets / 20’ Container |
3.0 mm | 10 m2 | 25 | 20 |
4.0 mm | 10 m2 | 23 | 20 |
Storage
PCM should be stored in well-ventilated place and avoid being exposed to the sun or rain. The temperature in stored places can not be higher than 45° C. It should be put vertically not more than in two levels.
Transportation
In order to prevent inclination or lateral drift, PCM can not be put vertically in double-level.

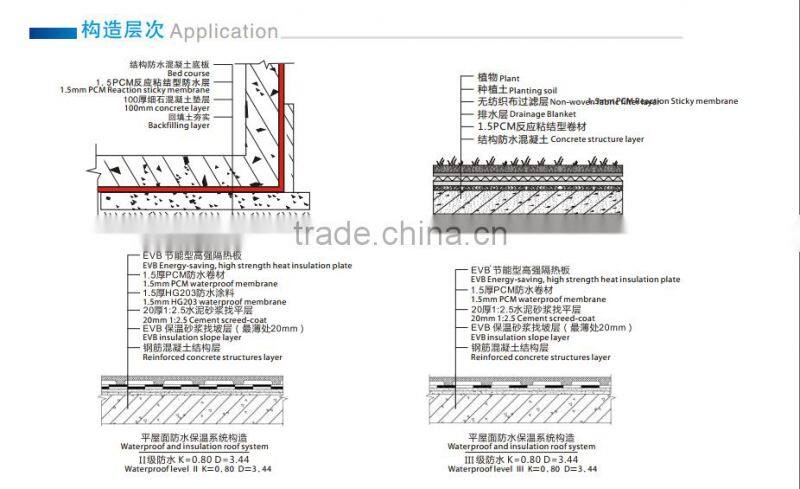

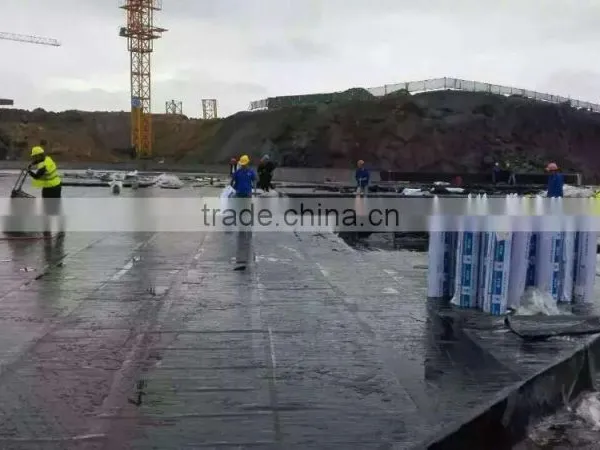

Application System
PCM adhesive waterproof system includes substrate, primer, membrane waterproof underlayment, protection layer.
PCM also provide a complete line of compatible accessories and components, including primers, pipe clamps, terminal battens and screws.
Surface Preparation
Surfaces should be dry, clean, smooth and free from any dusts, oil or loose particles. Cracks and uneven places need to be filled by polymer mortar.
Priming
Before membrane laying, substrate treating agent need to be brushed evenly and completely cover all laying places.

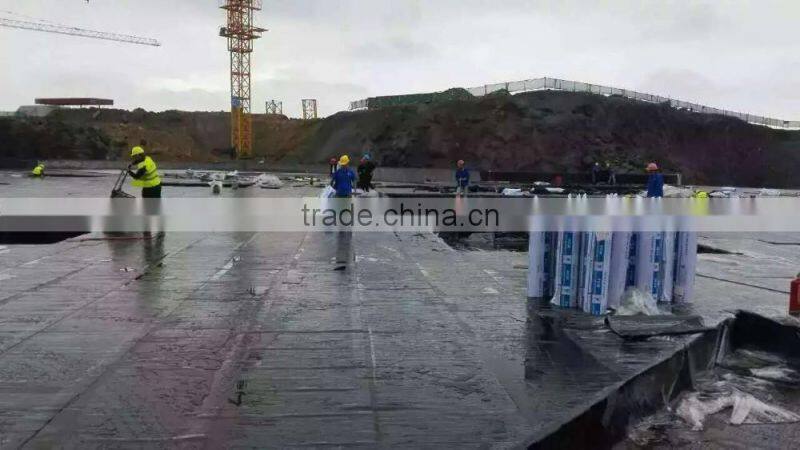

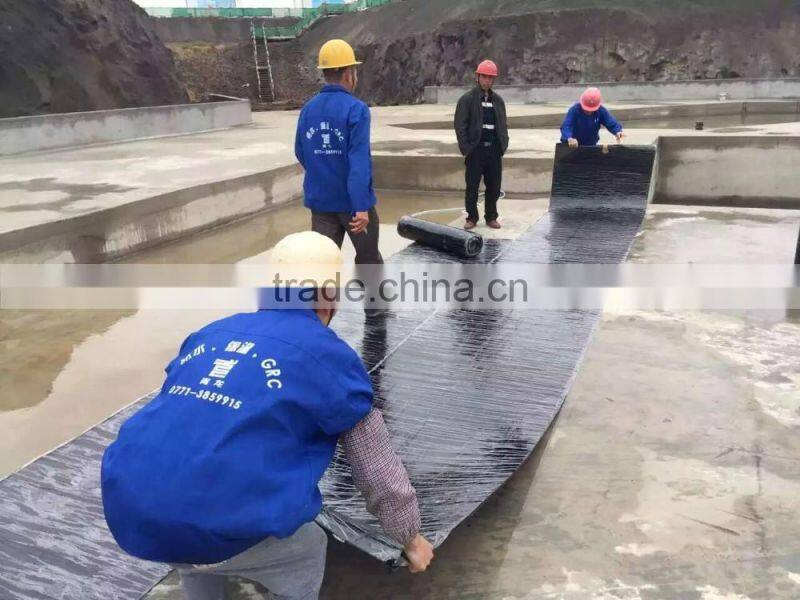

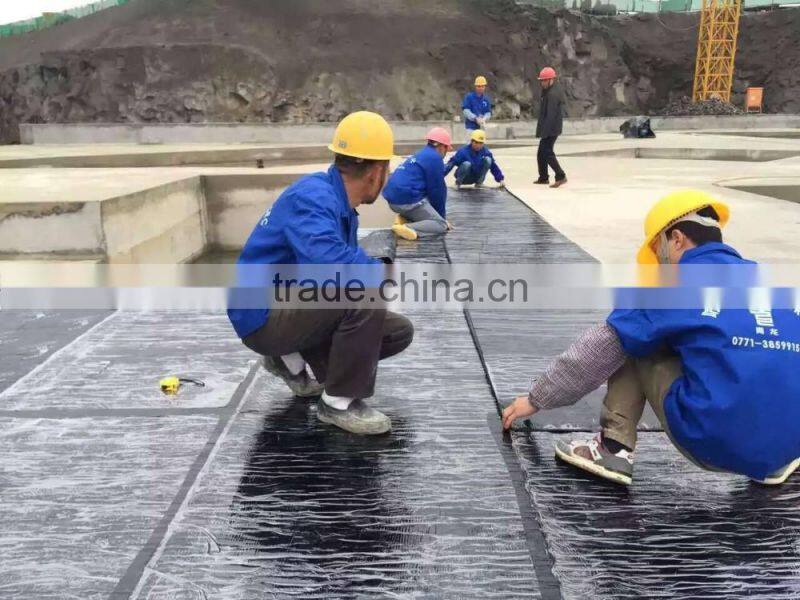

Membrane laying
After substrate treating agent drying, lay PCM material according to application designs.

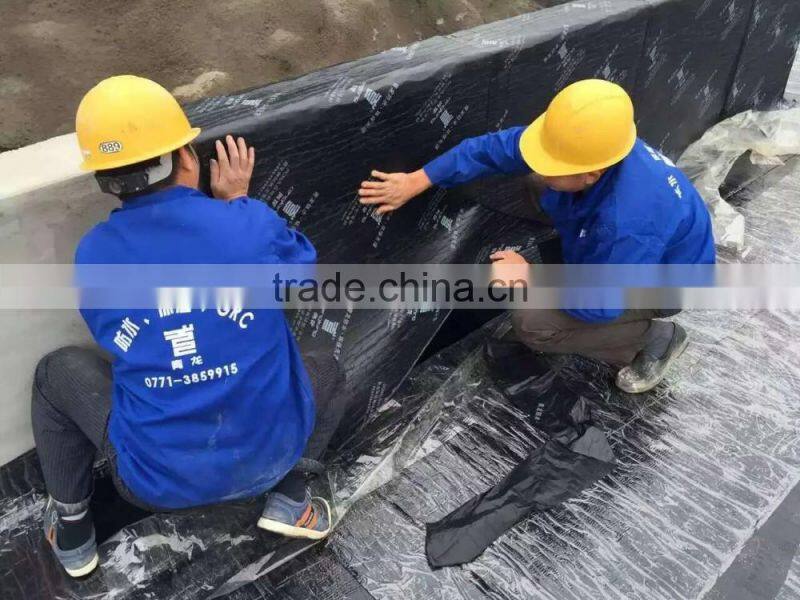

Sealing, fixing and constraining on vertical surfaces
On vertical surfaces, fix with metal battens and seal with sealants for membranes.
Application on protection layer
After membrane laying, apply on protection layer according to waterproof layer design.

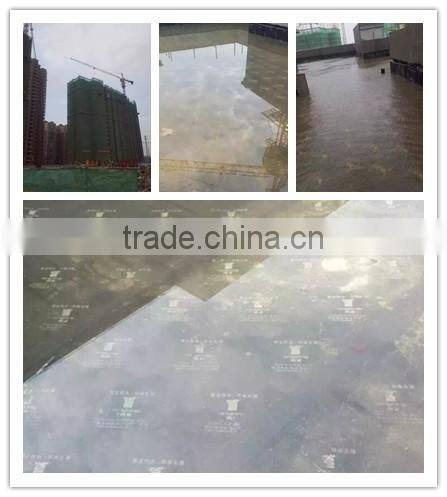

Ponding Test
Packing details
