UIC2023 High quality infrared wireless people counter
Product Brief Description:

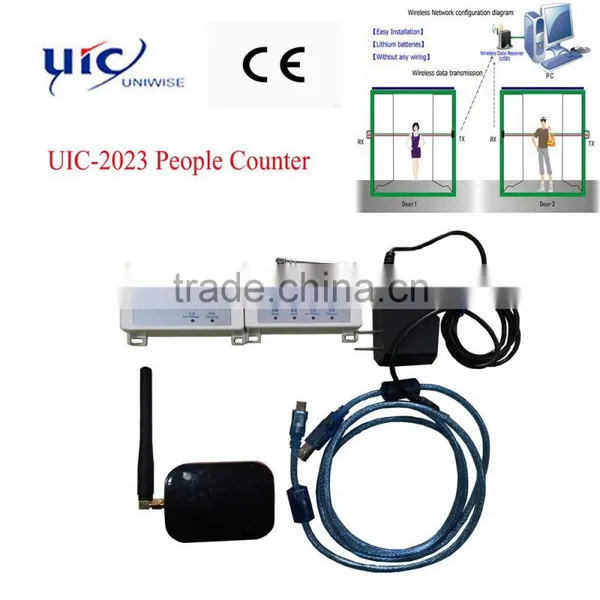

UIC-2023 wireless people counter composed of the TX transmitter and RX receiver.
Due to use battery power supply and wireless transmission, it is not necessary to consider the installation and wiring engineering.It will not damage your store decoration style, because our wireless people counter is very small and it even can not be found by customers. You can change the statistical position easy at any time.
Support by client program, it can carry out bidirectional data exchange through internet and remote server.
Low cost and easy installation are the biggest advantage. Suit for single store with one point or multi point, and as well as chain business model.
Technical Specification:
Flow direction recognition ability: bidirectional recognition (in and out)
Power supply: lithium battery
Battery capacity: more than 8 months
The data transmission modes: active emission
Radio frequency range: 315M
The wireless transmitting power: 10mW
The maximum transmission distance: 60m
The maximum flow rate: 2.5m/S
Detection methods: 880um active infrared
Detection range: 8M (MAX)
Environment temperature: -15 °C - 60 °C
Humidity: < 95%
RX weight: 80g
RX size: 80mm*46mm*25mm
TX weight: 50 g
TX size: 80mm*46mm*25mm
System function
RX wireless people counter and TX transmitter are installed on both sides of the entrance in stores, up to 16 sets counters can work at the same time in one store.
Each UIC-2023 wireless people counter can set a separate ID number corresponding to the installation location. When a customer passes,RX wireless people counter can automatically identify the direction of the customer and send radio wave coding by wireless transmission, the client software on the store PC machine can receive the wave coding from each wireless people counter through wireless receiving terminal and convert into text information displaying on the interface, while setting up the local database records.
To get people flow data analysis statements,WEB statements can be supplied and clients need to build remote server.
After stores establish network connection with the remote server, people flow data in stores will be sent to the remote server continuously, any computer can check people flow data on the server through WEB browser after getting the authorization.
6.Client Program

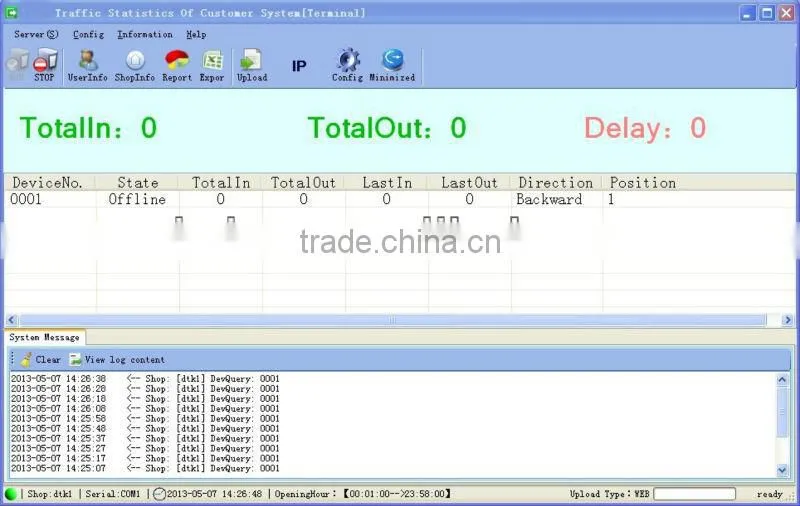

UIC2023 Data center client program reads the people flow data from wireless receiving terminals and produces information and writes into the local database, and at the same time establishes a network connection with the remote server to upload the local database records.
UIC2023 data center client support breakpoint continuingly functions,the people flow data from wireless receving terminal only are stored in the local database when the network connection with a remote server is in a failed state. When the connection with the remote server is normal, client program will continue the data transfer process.
UIC2023 data center client program operation parameters configuration are unified management by the remote server.the client program can run automatically after reinstalling, you only need to download remote server operating parameter again, no need to set parameters by local staff, greatly reduce the system maintenance costs
Working Graph
