UIC2022 High Quality Infrared Passenger Flow Counter
Product brief introduction

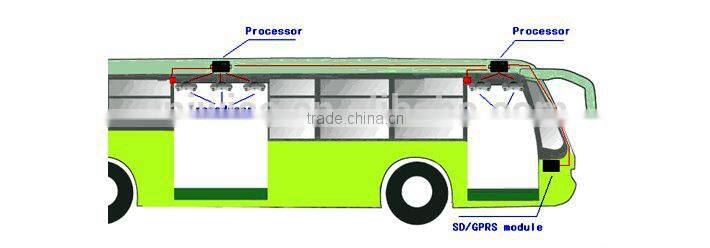

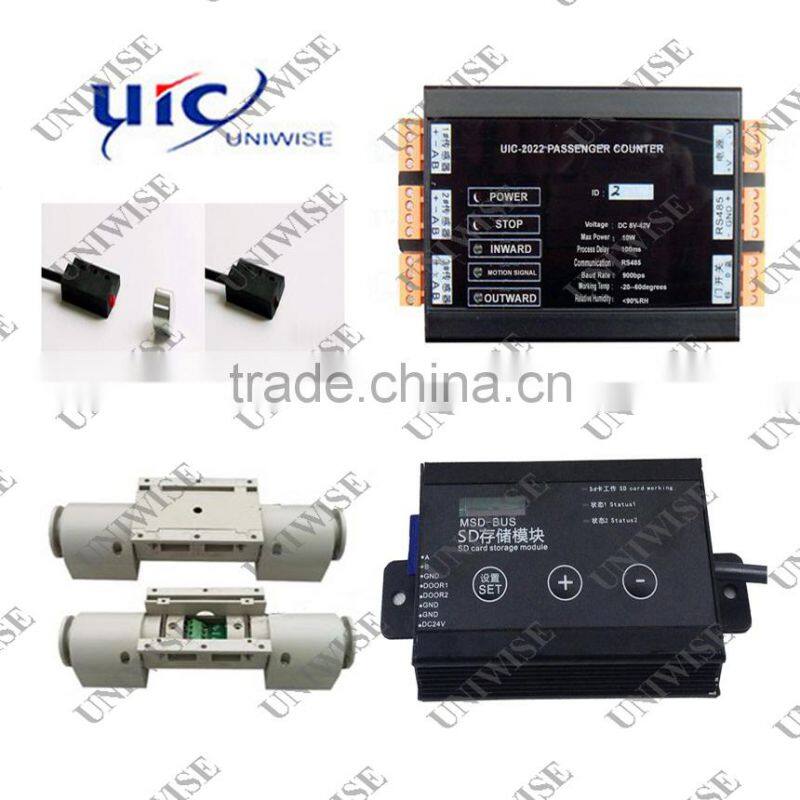

UIC-2022 BUS Passenger Counting System includes tranducers,door switch and counters. Equipments need to be installed according to the size of bus door,in general,there are one counter,one door switch,3 tranducers in front doors, one counter,one door switch,2 tranducers in rear door.
Tranducers are responsible for catching information of passenger passing and sending to counters. Door switch is for inspecting the state of bus doors,door switch is mounted on the door frame to check the state of door,start or close detecting function of counters.when the magnetic departs from door switch,door opens,the indicator goes off,at this time,counter starts counting function.otherwise,the indicator flashes. Precessors are for receiving information from tranducers and counting. The SD memory module could record the pedestrian flow at the front and rear bus doors during every times opening and closing as well as accordingly time wasted on closing the door. The file is named with date and stored in SD memory card. Data of the SD card can be transferred into computer by using SD readers and used in statistic with management software of pedestrian flow.
Tranducers instruction
1.Confirm Bus Door Size
At first,you need to confirm the bus door height and width,so we can choose suitable configuration:
available passing area | numbers of transducer |
Within 70cm | 1 |
75cm-90cm | 2 |
Over 95cm | 3 |
In order to get a no blind zone for monitoring, it is important to select suitable numbers of transducers to mount according to the available passing areas of the bus door.
2.Confirm Mounting Height of Transducer

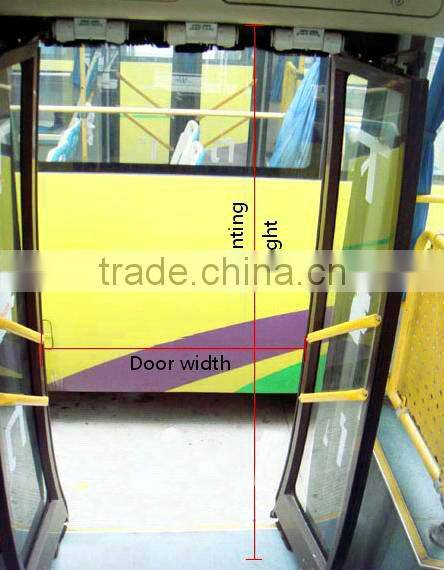

As default settings of mounting height was made before leaving factory, the operator shall know that it can be mounted properly for the height of the bus door(Normally, the height of bus door is 2.0m). The allowed variation for the mounting height is 10cm beyond which it may lead to unusual problems for the operation of the transducer. Please specify upon ordering if a special mounting height is used.
The mounting height herein refers to the vertical distance between the mounting location of transducer and the lowest floor by the bus door and would changes as the mounting location changes. Therefore, prior to purchasing a transducer, please verify the best mounting location and calculate the according mounting height so as to avoid any unusual operative problems.
In case that users find out the practical mounting location is varied from the settled mounting location over 15 cm, please contact us immediately.we will adjust the height.
3.Confirming Mounting Location of Transducer

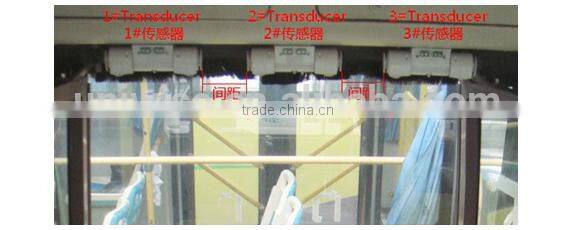

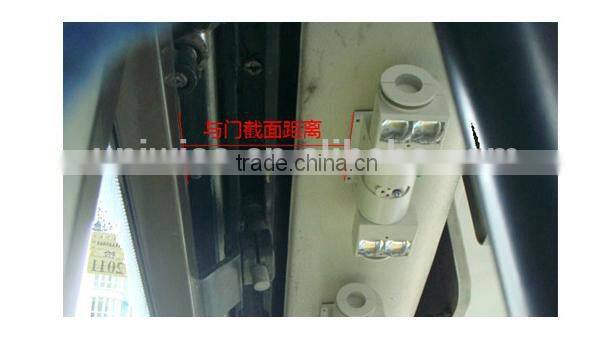

The transducer shall be mounted at the location as shown in the pic below. Notes: Being at the right location the transducer would have no physical contact with any parts on the top of the bus door.otherwise it is wrong mounting location.
When totally three transducers have to be mounted, the middle one shall be located right on the cut line between the two door, keeping 17cm from either if the other two transducers.From left to right, they are transducer 1#, transducer 2#, transducer 3#. All three transducers must be in the same section.

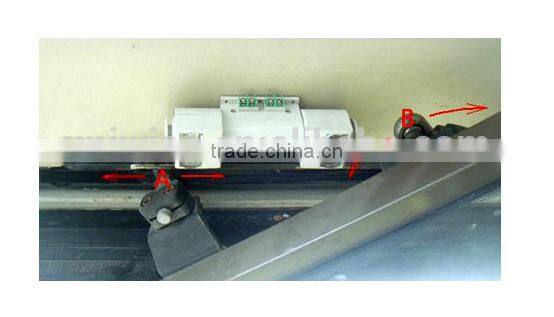

By ensuring the transducers would not have any physical contacts with any mechanical parts on the bus door, the best distance between the transducer and the door section is 15-20cm. This distance shall be as large as possible if the best distance can not be achieved.
Door Switch instruction

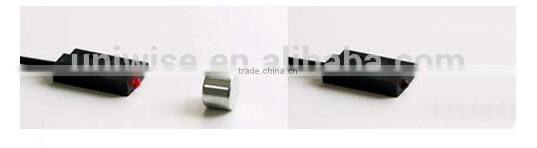

Gate Controlled Switch must be applied with magnetic patchby which the magneti switch is on with magnetic field around it. If there're no magnetic field around the switch or the intensity of magnetic field is less than the required level, the switch is off.
Gate Controlled Switch shall be installed near the rotating posts of the bus door or above the door leaf, so the intensity of the magnetic field would fluctuate according to the distance variation, producing signal 0 or signal 1. Thus, the switch can detect if the bus door is open or not. After power on the passenger flow calculation system, if the door closed, the indicator on the gate controlled switch is on as the magnetic patch moves closer from the switch,if the door opened, the indicator on the gate controlled switch is off as the magnetic mass moves closer to the switch.
|
Passenger flow counter instruction

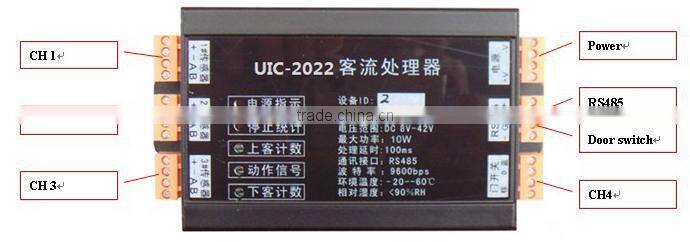

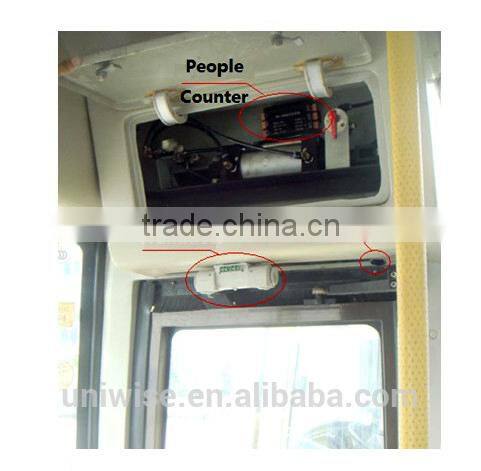

The passenger counter is connected with the transducer mounted above the bus door and applied to process the detective signals of the transducer and calculate the passenger flow at certain bus door. Five indicators on the counter panel show the current status.
Main Specification and Technical Parameter
Communication baud rate | 9600 bps |
Anti-vibration ability | amplitude 0.35mm 60-200Hz Acc 50m/s |
Working power | DC 9-36V ±15% |
Detectable max speed | 6m/s |
Working temperature | -20~+65°c |
Indution type | Infrared |

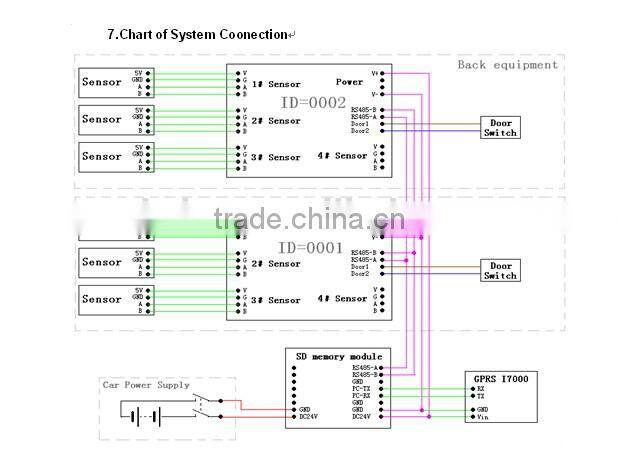

System connection instruction
FAQ:
1.how many transducers do i need for one door?
available passing area | numbers of transducer |
Within 70cm | 1 |
75cm-90cm | 2 |
Over 95cm | 3 |
2.Which interface can I use?
We have RS485, RS232.
If you have other requirement, plz contract us.
