Phenolic Moulding Compound Raw Material of Toilet Seat Cover Hangzhou Uniwise Import and Export
Specifications
1) bakelite powder2) type:Granule+Powder
2) compression or injection
4) application: switches, handles, tablewares

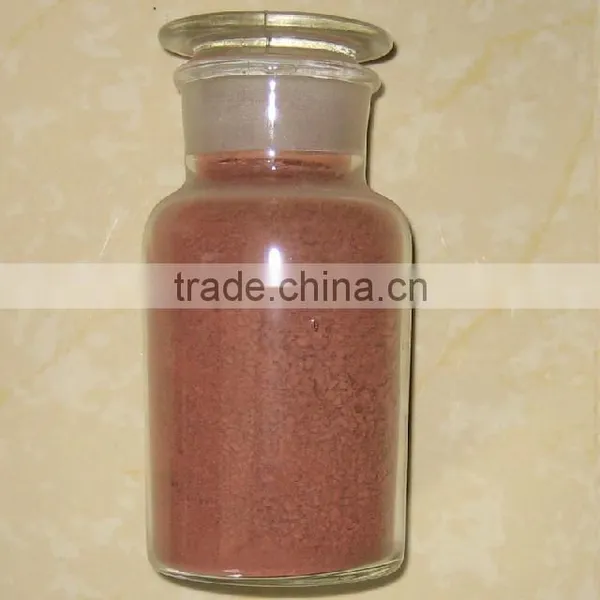

UNIWISE Top Grade Bakelite Powder
Selection of Modeling and Manufacturing Conditions
To accommodate different requirements of the modeling industry, we have successfully developed compression modeled and plastic injection modeled UNIWISE top-grade compound UFC grain materials according to requirements of different customers. The formation and manufacturing process must be carried out with suitable control parameters according to the shape, size, thickness and size of the forming machine and injecting machine to produce high quality finished products. The following are the parameters recommended for normal cases:
ITEM | UNIT | TOP GRADE COMPOUND | |
COMPRESSION | INJECTION | ||
TEMPERATURE | DEGREE C | 145-155 | 140-135 |
PRESSURE | MN/M2 | 25-40 | 50-120 |
Features and Advantages & Application
Type | Classification | Grade | Features and Applications |
| Compression Type | Household (R) | PF2A1-131 | Suitable for making handles or spare parts of daily household articles. |
| Electric Appliance (D) | PF2A2-131 | Enhanced electric leakage resistance, can be used to make insulating structures for low voltage electric appliances. | |
| PF2A2-141 | With better electric leakage resistance than PF2A2-131, can be used to make insulating structures for low voltage electrical appliances. | ||
| PF2A2-151 | With better electric leakage resistance than PF2A2-141, can be used to make insulating structures for low voltage electrical appliances. | ||
| PF2A4-161 | With better electric leakage resistance than PF2A2-151, can be used to make insulating structures for low voltage electrical appliances. | ||
| Injection Type | PF2A2-141J | For injection machine use only, technical properties and application is similar to PF2A2-141. | |
| PF2A2-151J | For injection machine use only, technical properties and application is similar to PF2A2-151 | ||
| PF2A4-161J | For injection machine use only, technical properties and application is similar to PF2A4-161 |
