3 Wheel Motorcycle(150cc/175cc)

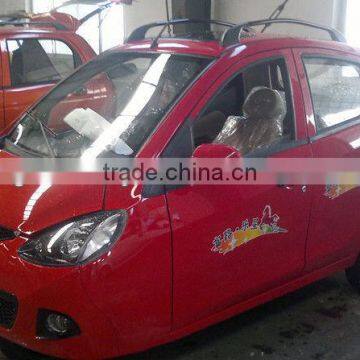

3 Wheel Motorcycle(150cc/175cc) thumbnail-1
3 Wheel Motorcycle(150cc/175cc) photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Use For:
Passenger
Driving Type:
Motorized
Displacement:
111 - 150cc, 150CC
Contact Supplier Request Quote Chat Now
Dezhou Greatway Import And Export Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Use For Passenger
Driving Type Motorized
Body Type Closed
Certification Other, EPA ,CE
Brand Name GW
Model Number GFLL17

Specifications

3 wheel motorcycle
1.CNC die,2.Auto gearbox3.engine of 150CC



 3 wheel motorcycle(150cc/175cc)3 wheel motorcycle(150cc/175cc)



3 wheel motorcycle(150cc/175cc) 3 wheel motorcycle(150cc/175cc)



3 wheel motorcycle(150cc/175cc) 3 wheel motorcycle(150cc/175cc)

3 wheel motorcycle(150cc/175cc) 3 wheel motorcycle(150cc/175cc)3 wheel motorcycle(150cc/175cc)



3 wheel motorcycle(150cc/175cc)



3 wheel motorcycle(150cc/175cc)





3-wheel motorcycle

Max speed: ≤50km/h
Economic speed: 40km/h
Fuel consumption: ≤2.8L/100km
Grand ability: ≥20(º)
Turning circle diameter: min 3.25m
Brake distance (30km/h): ≥5m/s
Track: 1,140mm
Wheelbase: 1,880mm
Ground clearance: min 160mm
Rated passenger number: 3 persons (including driver)/225kg
Front wheel specification/tire pressure: 145/70R12/250kPa
Rear wheel specification/tire pressure: 145/70R12/250kPa
Front wheel turning angle (L/R): max 18º/18º
Dimensions: 2,710 x 1,300 x 1,505mm
Engine type: single cylinder, 4-stroke, water forced cooling
Bore x stroke:  62 x 49.5mm
Maximum power: 9.5kW/8,500rpm
Rated power: 8.5kW/8,500rpm
Maximum torque: 10.5N.m/6,500rpm
Idle speed: 1,500±150rpm

Swept volume: 149mL or 175mL
Compression ratio: 9:1
Fuel brand: ≥RQ-93
Starter: electric start
Lubrication: forced splash lubricating
Ignition: CDI
Spark plug: D8RTC
Oil brand: 15W/40-SE 10W/30-SE
Carburetor: PZ27
Clutch: wet, multiple plate
Transmission: 5 gears, constant mesh gear
Fuel tank volume: 8L
Battery volume free maintenance: 17Ah
8 units in one 40’HQ container

Optional colour:red,yellow,green,white,blue,silver,golden
