electric sweeper

Specifications

electric sweeper:Vacuum Sweeper is an outdoor light device. Pure electric energy, environmental
protection, low-noise operatio

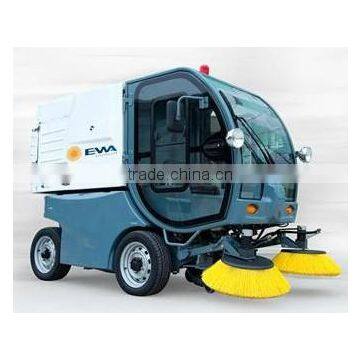

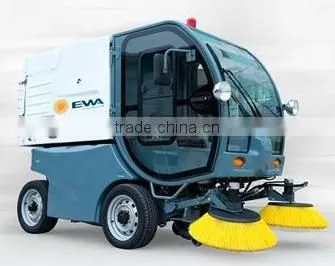

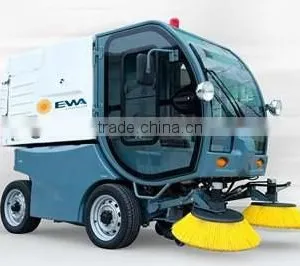

Electric Sweeper
Vacuum Sweeper is an outdoor light device. Pure electric energy, environmental
protection, low-noise operation , zero emission standards, comprehensive care
of the urban environment.
Compact design, flexible manipulation:
The car is front-wheel driving , rear-wheel steering, small size , flexible
operation ; strong cleaning ability and climbing ability , able to climb 15 cm
stairs, climbing ability is 20%.
Applications: Widely used in communities , urban roads, college campuses,
parks, scenic spots,etc.
Powerful and high efficient : The diameter of two side brush is 720 mm. They
are directly driven by DC motor and can provide sufficient power and steady
speed.Equipped with high-power vacuum device and the four dust suppression
system,It can ensure good the cleaning effect.
Large capacity, intelligent and environment : Trash maximum capacity is 450
liters , water tank is 250 liters, it have quick-change battery unit. So it can
ensure the continuity of cleaning work . Meanwhile the trash can lift 1.3 m ,
dump the trash directly to transfer box, effectively prevent secondary
pollution from dumping.
The glass steel craft, comfortable for driving : With transparent glass steel
on three sides of the cab,it can ensure maximum visibility for the operator.
The driver can see the working process of sucker mouth clearly through the
transparent window on the middle of the floor .

Electric power , safe and reliable : It have the most advanced electric power
for steering and braking, adjustable seats and steering wheel , air
conditioning for cockpit.So it is more comfortable for operation, more effort ,
more secure, and more reliable.
Flexible configuration: With a extended suction device and high-pressured water
cannons,it is fit for working on greenways and other complex regional
environment, achieve high-efficiency cleaning one time.
Intelligent control : With the most advanced intelligent control systems and
intelligent fault alarm system, it makes operation and maintenance more easier
and convenient.
Dimension(mm) , :2920*1220*2200
Max Running Speed:20Km/h
Working Speed:10Km/h
Sweeping Width:1600mm
(With brushes on the two sides)
Min. Turning Radius:2450mm
Climbing Ability(loaded):20%
Capacity of Rubish Box:450Litre
Effective Capacity of Rubish Box:250Litre
Capacity of Water Box:250Litre
Height of Pouring out Rubish:1.3m
Max Lifting Weight:400Kg
Max Pressure of Cleaning System:9MPa
Net Weight:1600Kg
