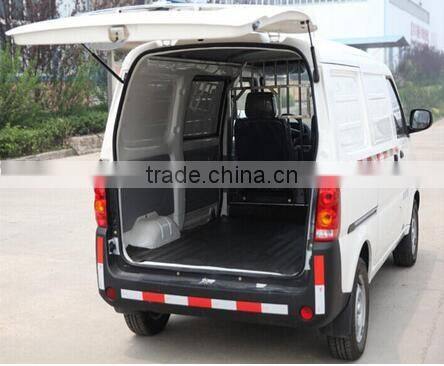

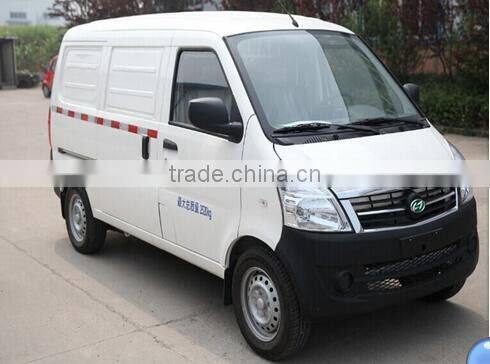

electric van

Basic Parameter

Body

metal,integral

Dimension(LxWxH) (mm)

4592x1510x1870

Cargo box (LxWxH) (mm)

2706x1506x340

Wheelbase (mm)

2760

Track Width (f/r) (mm)

1300/1310

Drive type

Rear wheel drive

Braking system(F/R)

Disc/drum,Hydraulic,Double Circuit,Vacuum Assistance

Ground clearance min.

180 mm(full loaded)

Curb weight

890kg

Total Weight

1820kg

Payload

800kg

Max speed

75 km/h

Max climbing capability

20%

Min.turning diameter

6m

Braking distance

<18.5m when fully loaded & speed under 50 Km/h

Range

120 kms(economical   speed)

Charging time

8-10 hours

Parking Brake

hand brake for rear wheel

Speed control

pedal control /1 shift automatic

Power Specification

Motor

7.5kw AC asynchronous

Electric system

72v

Charger

1500w,110v/220v input

Controller

72v

Battery

12v-200Ah/ unit×6 units

Battery type

lead-acid free maintenance gel battery

Weight of battery

420 kgs

Battery life

recharging for 800 times

Convertor

DC DC 12V

Chassis System

Suspension Systerm

Front:double swing arm torsion-bar spring independent suspension,dual hydraulic telescopic shock absorber.
Rear:longitudinal leaf spring,dual hydraulic telescopic shock absorber.

Steering system

power steering

Wheel type(front/rear)

155R13LT

wheel hub

13×5.0B
