350a 600v dc power connector
- 5000 Piece / Pieces per Month
- Credit Card PayPal
Product Details
Place of Origin: | Shandong, China | Brand Name: | GW | Model Number: | MPC50,75,175,350 |
Type: | Adapter | Application: | Power | Gender: | Other, female and male |
Product Description
Specifications

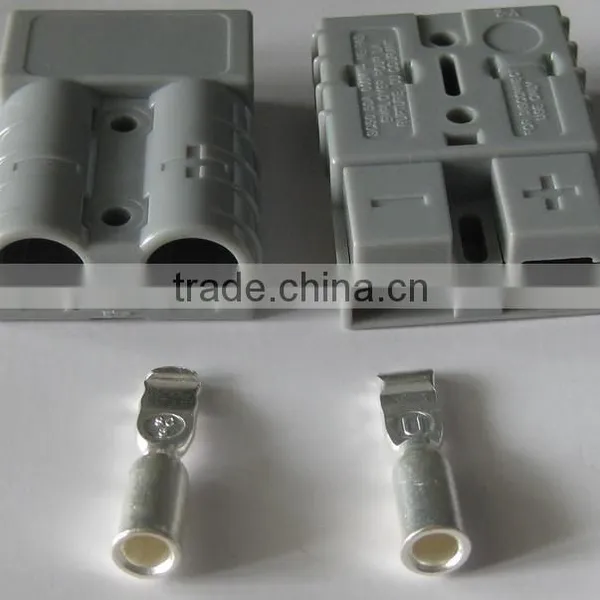

dc power connector:1.2 pin battery a connector 2.housing can be any color 3.various terminal contact 4.350A/600V
Plane-contact technology, strong current minimum contact resistance
Wiping action generated in the disconnection process can clean the surface of the contact member
Male and female housing, simplifying assembly requirements, which will help reduce inventory
Color shell, according to the color determine industry standards recommend the use of voltage
Foolproof design, different colors, different interfaces, to avoid two different voltage coded color plastic shell with plug to eliminate the possibility of power socket misinsertion
Superior anti-corrosion of hydrocarbons and solvents
Product Name: MPC50 50AMP (/MPC 75/MPC 175/MPC350 is available)
Product description:
Rated current: 120AMP
Rated voltage: 600V
Applicable wire: 6AWG - 16AWG
Contact resistance: 200 micro-ohms
Mating cycles (no load): 10,000
120V 60A current hot-swappable: 250 times
Operating Temperature: -20 ° to 105 °
Fire rating: UL94 V-0
Environmental standards: RoHS
connector | MPC50 | MPC175 | MPC350 |
UL Rating Voltage | 50amps/600vdc | 175amps/600vdc | 350amps/600vdc |
Rating Current | 50amps on 6awg wire produces 30°C rise | 175amps on 1/0awg wire produces 30°C rise | 350amps on 750mcm wire produces 35°C rise |
Maximum Wire Insulation Diameter | 0.44"/11mm | 0.75"/19mm | 1.10"/28mm |
average terminal holding force | About 50lbs | About 300lbs | About 500lbs |
average contact resistance | With 11/4" (32mm) of 6awg wire 200 micro-ohms | With 13/4" (45mm) of 1/0awg wire 100 micro-ohms | With 21/2" (64mm) of 300mcm wire 50 micro-ohms |
average insertion force | 15lbs (6.75kg) | 25lbs (11.25kg) | 30lbs (13. |
