MG Series Electronic Throttle

Specifications

                   1.  Hall electric Accelerator

               2.  MG electric  Accelerator

                               3.  New Electronic throttle

1.Electric Accelerator

2.pedal

3. Electronic throttle

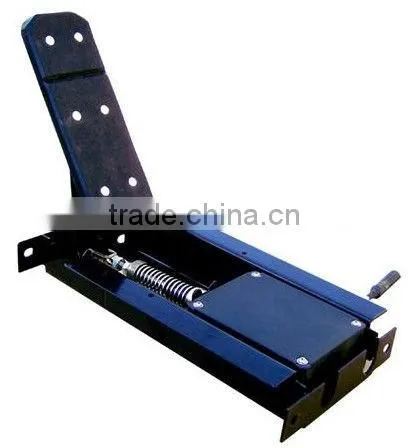

MG series pedals are applied mostly in electric hunting buggies, golf cars, electric antique vehicles and many other vehicles.

 FEATURES

 Water and Vibration proofed

 High stability, low draft with temperature.

 No rub design, long life span.

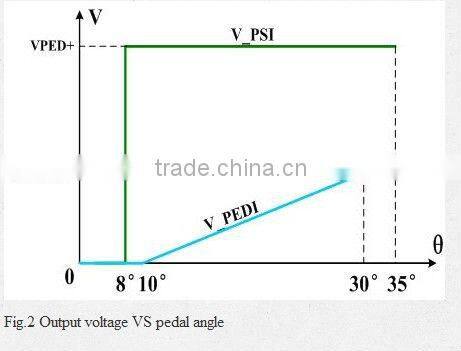

 Optimized output curve, makes driving comfortable.

 Specifications

Input Voltage range:         DC24V-80V or DC 60V- 44V

Output Voltage range:        DC 0V-5V

Environmental Enclosure:     IP68

Shock and Vibration:         SAEJ1378

Safety-North America:       UL2202/UL1564 2nd Edition

Emissions- North America:    FCC Part 15/ICES 003 Class A

Immunity-Europe:           EN61000-4-2/3/5/6/11

Operating Temperature:       -20°C-50°C

  Wires

Red:Power+                Black:Power–

Blue:Signal                 Yellow:Switch

Note:It will be bad when disconnect the Signal as Power+.
