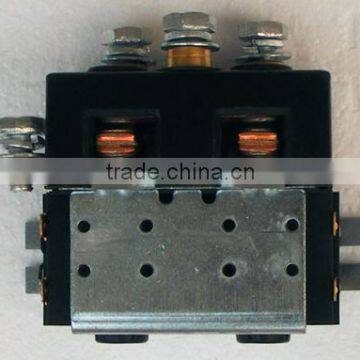

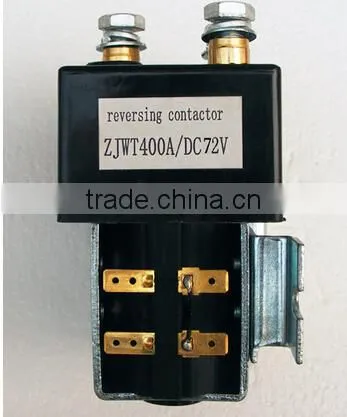

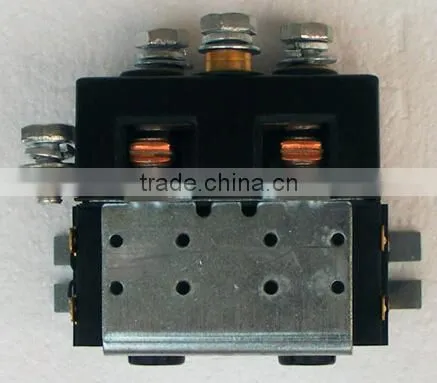

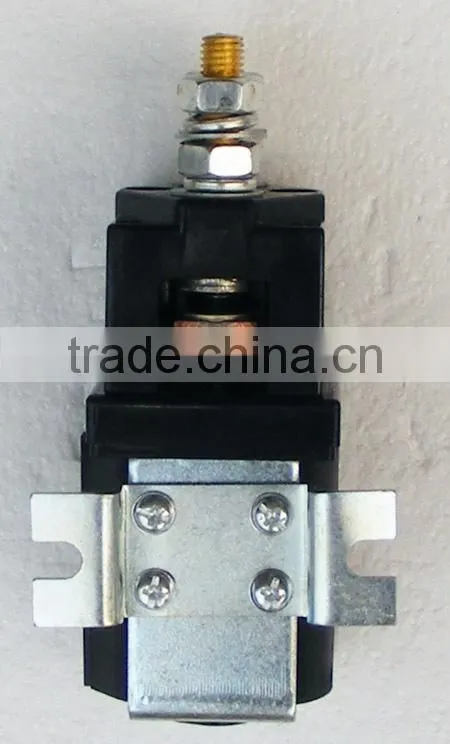

dc Electric Reversing ContactorNegotiableMOQ: 1 Piece -
Emergency Switch/Electrical Emergency Switch/Emergency Button SwitchNegotiableMOQ: 1 Piece
-
Emergency Switch/Electrical Emergency Switch/Emergency Push Utton SwitchNegotiableMOQ: 1 Piece
-
Emergency Switch/Emergency Stop Switch/Emergency Button SwitchNegotiableMOQ: 1 Piece
-
Emergency Switch/Emergency Stop Switch/Emergency Power Off SwitchNegotiableMOQ: 1 Piece
Contact Ratings
Contact Form 2Z
Contact circuit Voltage and loading current(resistant) 84VDC Max 400A
20+-5C cold state max motion voltage(VDC) Pick-up <=70% of rated voltage
Drop-out 5%-30% of rated voltage
Machanical life(Min.) 100,000 Ops
Electrical life(Min.) 50,000 Ops
Coil Ratings
Coil rated voltage 24V,36V,48V,72V,84 VDC
Max coil current under the rated voltage 0.1A
With 20+-5C cold state starting coil max current
Specification:
Insulation Resistance 100Mohm Min.
Dielectric strength Between Contacts 2000VAC.
Between coil and contacts 1500VAC.
Environment temperature and attitude -40C-+85C; 0-20000m
Max relative humidity 98%
The shocking of fixed point 1 Frequency(11Z) 10-200
Acceleration(g) <3.5
Shocking Speed(time/min.) 60-100
Acceleration(g) 4
Constant acceleration 8
Operation regulation Continue
Installation direction Random.
