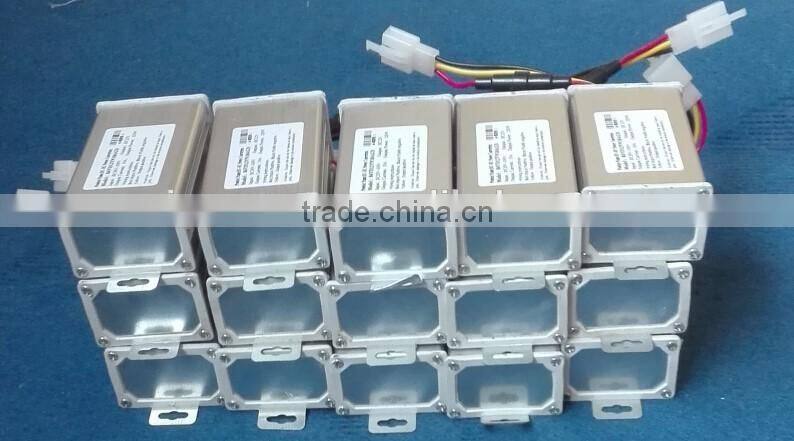

This converter uses UC3845 import integrated voltage regulator module, built in three inductors, external 5A fuse, the whole aluminum alloy waterproof shell, for vehicle accessory products. Suitable for electric vehicle mounted subwoofer, anti-theft siren horn, audio, chassis lights, super white headlight etc..
Product introduction:
Input voltage: 30V-64V
Output voltage: 12V
Maximum output current: 10A
Overall efficiency: more than 93%
Working temperature: -40 - +85
Size: W:54.5 mm H:32 mm L:90mm
Performance features:
1 low voltage protection function: when the battery voltage is lower than the specified value, close the output, a good protection of the battery, effectively prevent the battery over discharge.
2 short circuit protection function: when the output is short circuit, the converter automatically shut down the output, after the short circuit point is automatically restored.
3 over voltage protection function: when the output voltage exceeds the specified nominal voltage, the converter is closed and the output is guaranteed, and the back end appliance is not burned.
Connection setup:
Red - positive input, positive electrode for electric vehicle battery
Black -- Ground input, output, the electric vehicle battery anode, load wire (i.e. motorcycle audio black)
Blue - 12V output, the positive electrode of the 12V load
It is forbidden to take the wrong connection, otherwise the damage is not guaranteed.
our company specialized in the manufacture and export of electric system products , including,pure sine wave power inverter, motor controller,charger,DC-DC converter,electronic throttle,battery discharge indicator ,air conditioning system,electric system solution .etc
