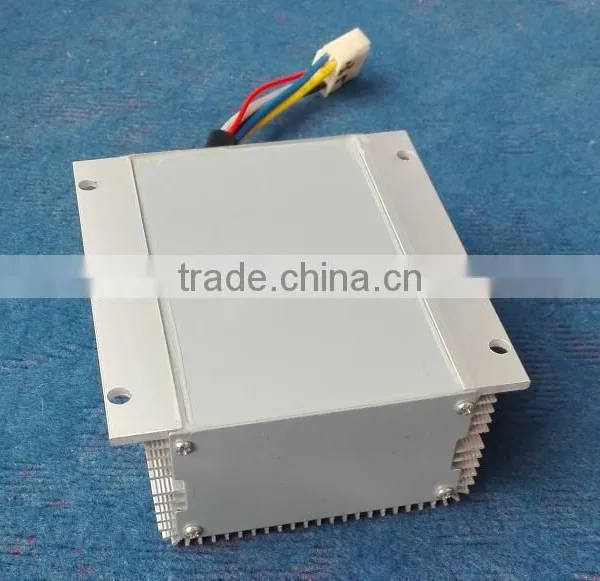

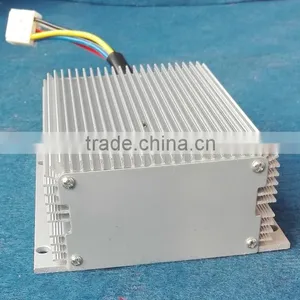

Help Center400w 48v to 12v,35A Isolated Dc-dc Converter
Related Products
-
300w 48v to 12v,25A Isolated dc to dc ConverterNegotiableMOQ: 1 Piece -
300w 72v to 12v,25A Isolated Dc-dc ConverterNegotiableMOQ: 1 Piece
-
300w Isolated Dc-dc Converter 60V to 12v,25ANegotiableMOQ: 1 Piece
-
300w Isolated Dc-dc Converter 48v/60v/72V to 12v,25ANegotiableMOQ: 1 Piece
-
48V to 5v 15A 75W Waterproof DC-DC Power ConverterNegotiableMOQ: 1 Piece
PXG series isolated DC/DC converter applies advanced technology and is configured specifically for electric vehicles. It is very suitable to supply power to the lamp and audio system as it is very stable and clean. The advantages of high efficiency, stability and compact size, are achieved by adopting the advanced high frequency technology
Technical parameters
1: Input voltage range: 48V 60v 72V 84v 96v 108v 120v 144v
Output voltage: 12.8V / 13.5v / 13.8V (The default value is 13.5V)
Output Current: 35A
Output power :400W
2: load factor: 82%
3: Working environment temperature: -20- +50
4: Insulation resistance: ≥100 megohms
5: Test leakage current: < 0.75mA
6: input-output type: full Isolated
7: primary, secondary, between the chassis dielectric strength: ≥1500V AC
8: Functions: over-current limit, the output short circuit, output reverse, overheating protection
9: Size: 160X140X63 (length has also 155mm,178mm,198 mm)
10: Weight: 1.40Kg
.Type Table
Model No. |
Input volt |
Output volt
|
Output current
|
PXG400W-4812 |
48V |
12V |
35A |
PXG400W-6012 |
60V |
12V |
35A |
PXG400W-7212 |
72V |
12V |
35A |
PXG400W-9612 |
96V |
12V |
35A |
PXG400W-12012 |
120V |
12V |
35A |
PXG400W-14412 |
144V |
12V |
35A |

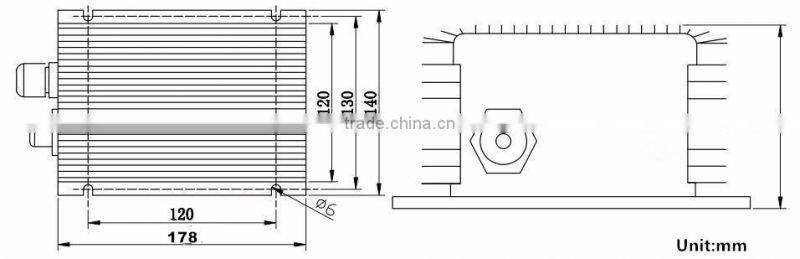

Dimension
Wiring instruction
Red wrie (with wax tube): input+ Black wire: output -
Orange wire: electric locks
Yellow wire: output+ Blue wire: output-
The converter are with built-in insurance
