3kw Boost DC-DC Power Converter 110v To230v/300v/560 With CAN Communication

Dezhou Greatway Import And Export Co., Ltd.
3kw Boost DC-DC Power Converter 110v To230v/300v/560 With CAN Communication thumbnail-1
3kw Boost DC-DC Power Converter 110v To230v/300v/560 With CAN Communication photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
GW
Model Number:
DCIN
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name GW
Model Number DCIN
Output Power Other, 3000W
Output Type Single
Size 400*203*178mm
Weight 13kg
Input Voltage DC 110V

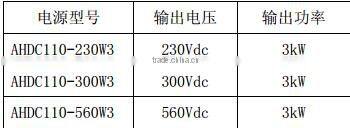

Output Voltage DC 230V,DC300V,DC560V
Type DC/DC Converters
Output Frequency 70KHz
Output Current 15A





3kw boost DC-DC power converter 110v to230v/300v/560 with CAN communication







3kw boost DC-DC power converter 110v to230v/300v/560 with CAN communication



 3kw boost DC-DC power converter 110v to230v/300v/560 with CAN communication





Technical Specifications:
  1, the input voltage: 77 ~ 160dc
  2, input frequency: 70KHz
  3, inrush current: <10A
  4, regulation accuracy: ≤1%
  5, full load efficiency: ≥0.87
  6, means of communication: CAN 2.0B
  7, protection class: IP65
  8, Altitude: ≤3000m
9, the working temperature: -30 ℃ ~ 75 ℃
10, overtemperature protection: protection shutdown above 75 ℃, 65 ℃ lower than the self-healing
11, short-circuit protection: output short circuit, output is zero, after the lifting of fault recovery
12, reverse polarity protection: After the output of the reverse, the charger does not start, after the lifting of fault recovery
13, overvoltage protection: Yes
14. Cooling: Air Cooled
15 Working noise: <60dB
16, Weight: 13kg
17, Dimensions: 400 × 203 × 178mm







3kw boost DC-DC power converter 110v to230v/300v/560 with CAN communication
