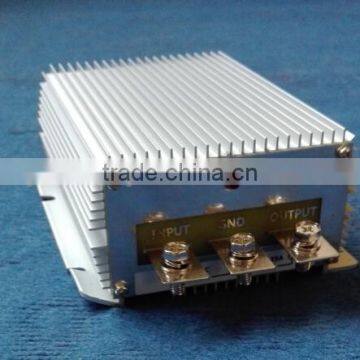

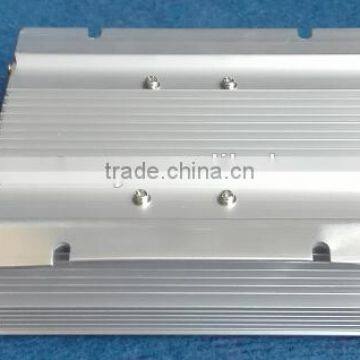

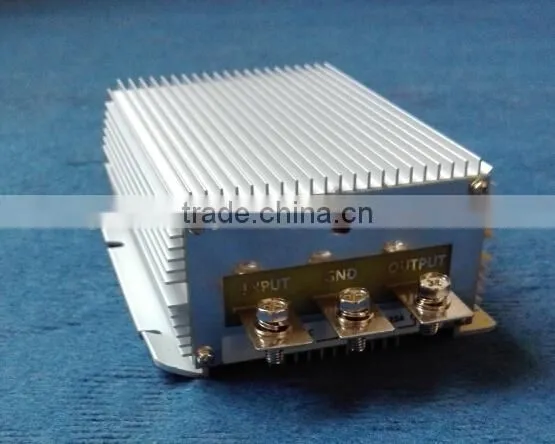

Help Center1440W 24v to 48v 30a Waterproof Boost /step up Dc-dc Power Converters
Related Products
-
24 v to 48v 20a 960w Waterproof DC to DC Step up Power ConverterNegotiableMOQ: 1 Piece -
24v to 48v 40a 2000w Boost /step up Dc-dc Power Converter / Voltage RegulatorNegotiableMOQ: 1
-
24v to 48v 30a 1500w Boost /step up Dc-dc Power Converter / Voltage RegulatorNegotiableMOQ: 1
-
720W 12v to 24v 30a Waterproof Boost /step up Dc-dc Power Converter / Voltage RegulatorNegotiableMOQ: 1 Piece
-
12v to 24v 25a 600w Waterproof Boost /step up Dc-dc Power ConverterNegotiableMOQ: 1 Piece
Our products are widely used in automotive, posts and telecommunications, communications, electricity, coal, aerospace, defense, surveillance systems, railway signals, medical equipment, instruments and meters, LED displays, cable TV and other fields.
Features:
1. 100% full power & stable current output
2. 100% Imported components
3. Wide input voltage from 20-35Vdc
4. Industry grade DC24V to DC48V step-up converter, high efficiency up to 96%
5. 100% waterproof & anti-shock protection, Ultra compact size, light weight
6. According: CE/RoHS, IP68 design
7. Die-cast aluminum shell, epoxy potting, Cooling by free air convection
8. Protections: Over-current, Over-voltage, Over-temperature, Over-load and Short-circiut. Auto-recovery when device is back to normal operating
9. Non-Isolated Module,
10. 1 year warranty, lifetime up to 100,000 hours.
Specifications:
Model |
GW-24S4830 |
Input rated voltage |
24V DC |
Input voltage range |
20V-35V DC |
Efficiency |
>96% |
Output voltage |
48V DC |
Output current |
30Amps |
Output rated power |
1440Watts |
Output peak power |
130% |
Voltage regulation |
< 1% |
Load regulation |
< 2% |
Ripple (Full load test) |
< 100mV |
No-load current |
< 30mA |
Working temperature |
-30℃~ +80℃ |
Waterproof rating |
IP68 |
Over-voltage protection |
YES |
Over-current protection |
YES |
Over-temperature protection |
YES |
Short-circuit protection |
YES |
Machine size |
180*127*63mm |
Package size |
220*151*80mm |
N. Weight |
1.6Kg |
G. Weight |
1.7g |
Heat dissipation method |
Die-cast aluminum housing,Free air convection |
|
