Product Details
Place of Origin: | Shandong, China | Brand Name: | GWIP | Model Number: | ipMC |
Motor Type: | DC Motor |
Product Description
Specifications
DC motor controller1.smooth, quiet, efficient, and cost-effective operation.2.the adjustable parameters take convenience
Programmer
Description
MCSer series programmable controllers adopt MOSFET power technology, combine with a sophisticated microprocessor provides very high efficiency, quiet operation and reduces motor and battery losses.

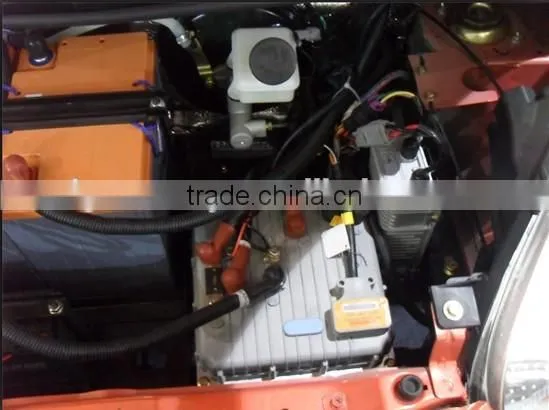

ipMCSep series controllers are designed for widely application in golf cars, sightseeing vehicles, hunting buggies, electric vehicles, heavy-duty trucks, electric yachts and other kinds of utility vehicles.
Feature Overview
ü Power MOSFET technology provides smooth, quiet, efficient, and cost-effective operation.
ü Easy to install and maintain. The pre-charge resistor and diode for contactor are built in.
ü Direction contactor is switched without arc, which decreases the error rate of contactor.
ü Quiet control is achieved through the direction contactors that are controlled by MCU.
ü Special technology is adopted in the control of contactors, which not only reduces the power dissipation, but also decreases the error rate of contactor.
ü Fully programmable. Adjustable parameters enable custom optimization of speed, torque, and braking control, etc.
ü Extensive fault detection and diagnostic reports are fulfilled by a programmer or buzzer in controller.
Extensive system monitors capabilities are well performed by
Optional electromagnetic brake output.
ü Sealed package standard: IP66.
Type Table
Type | Battery Voltage | Current | Type |
ipMCSer-4840 | 48V | 400A | I |
ipMCSer-4865 | 48V | 650A | II |
ipMCSer-6040 | 60V | 400A | I |
ipMCSer-6050 | 60V | 500A | II |
ipMCSer-7230 | 72V | 300A | I |
ipMCSer-7240 | 72V | 400A | II |
ipMCSer-7265 | 72V | 650A | II |
ipMCSer-9630 | 96V | 300A | I |
ipMCSer-9640 | 96V | 400A | II |
