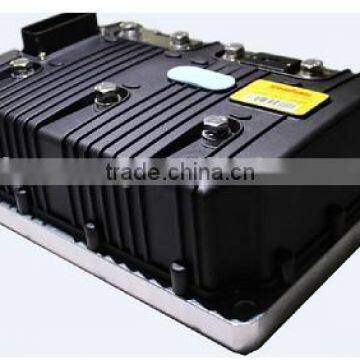

MCAC series AC Motor Controllers is developed for electric vehicles, it adopts advanced DSP processor and high performance vector control algorithm that can provides efficient, fluent operation and regenerative braking ,.Comprehensive protection functions ensure safety of controllers and electrical systems of vehicles .Fully programmable function enables custom optimization to change driving parameters flexibly.
Product Features:
All-digital control by Digital-signal-processor (DSP)
Advanced vector control algorithm
Accurate torque control in wide speed range and efficient,
fluent operation
Protection of OC (Over current), LU(Low Voltage), OU(Over Voltage), OT(Over Temperature) etc.
Customizable communication of RS232 and CAN bus
Fully programmable function for controllers to customize control parameters
Regenerative braking and energy feedback
Sealed Package standard:IP65
Product Specification:
Type | 72V | 96V | |
Input Voltage(DC/V) | 65~85 | 82~115 | |
Max Output Current(AC/A) | 450 | 450 | |
Rated Current(AC/A) | 200 | 200 | |
Starting Voltage(DC/V) | 48 | 64 | |
Max Output Power(KW) | 32 | 43 | |
Operation Temperature | -30°C------- 55°C | ||
IP Grade | IP65 | ||
Insulating Property | Input to or Output to Shell: Leakage Current 0.05mA and Insulation Resistance 20MΩ @DC 1000V | ||
Storage Temperature | -40°C------70°C | ||
Max Efficiency | 98% | ||
Type of Cooling | Self-cooling | ||
Shock & Vibration | GB/T2423 | ||
Control Method | Vector control with velocity sensor | ||
Communication | RS232 and CAN bus | ||
Weight | 8.5kg | ||

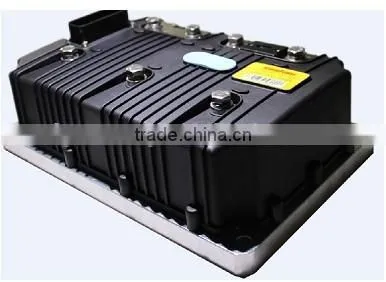

Size | Attached photo | ||
Type Spec.
Type | Battery | Amerate | Shape |
IpMCAC7225 | 72V | 250A | I |
IpMCAC9625 | 96V | 250A | I |
IpMCAC12025 | 120V | 250A | I |
IpMCAC14425 | 144V | 250A | I |
IpMCAC19225 | 192V | 250A | I |
IpMCAC19225 | 192V | 500A | II |
IpMCAC30025 | 300v | 500A | II |
IpMCAC60025 | 600V | 500A | II |
