AC Induction Motor Speed Controller KIM7260E,18V-90V,480a

Dezhou Greatway Import And Export Co., Ltd.

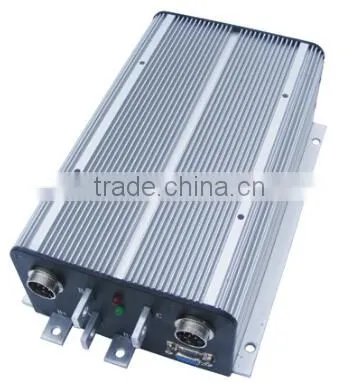

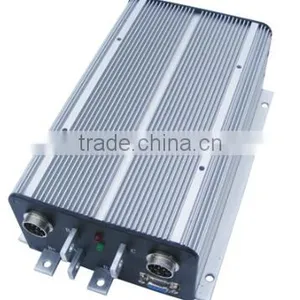

AC Induction Motor Speed Controller KIM7260E,18V-90V,480a photo-1

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

Model Number:

KIM7260

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

China port

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name GW

Model Number KIM7260

Motor Type AC Motor

programmable controllers designed for AC induction motors provide efficient, smooth and quite motor speed control, are suitable for small and midsize electric vehicles.

It is suitable for fans, water pumps, air conditioner compressors, fridge compressor applications and etc. It uses high power MOSFET's, and PWM to achieve efficiency 99% in most cases. Powerful microprocessor brings in comprehensive and precise control to the controllers. It also allows users to set parameters, conduct tests, and obtain diagnostic information quickly and easily.

Features:
• Intelligence with powerful microprocessor.
• Synchronous rectification, ultra low drop and fast PWM to achieve very high efficiency.
• Electronic reversing.
• Voltage monitoring on 3 motor phases, bus, and power supply.
• Voltage monitoring on voltage source 12V and 5V.
• Current sense on all 3 motor phases.
• Current control loop.
• Hardware over current protection.
• Hardware over voltage protection.
• Configurable limit for motor current and battery current.
• Low EMC.
• LED fault code.
• Battery protection: current cutback, warning and shutdown at configurable high and low battery voltage.
• Rugged aluminum housing for maximum heat dissipation and harsh environment.
• Rugged high current terminals, and rugged aviation connectors for small signal.
• Thermal protection: current cut back, warning and shutdown on high temperature.
• Decelerating speed according to the brake rate when brake switch is active.
• Decelerating speed according to the brake rate at reverse. Configurable reversing accelerating function.
• Support three braking modes: release throttle braking, brake switch braking or reversing braking, analog signal variable braking. Configurable Decelerating Slip Frequency in configuration program.
• Support three-level speed: free (the controller will stop output), forward, and backward.
• Configurable high pedal protection: the controller will not work if high throttle is detected at power on.
• Current multiplication: Take less current from battery, output more current to motor.
• Easy installation: 3 wire potentiometer can work.
• Remove fault code LED driver.
• Current meter output.
• Standard PC/Laptop computer to do programming. No special tools needed.
• User program provided. Easy to use. No cost to customers.

General Specifications:

General Specifications:
•Controller supply voltage range, PWR, 18V-90V
•Frequency of Operation: 16.6kHz.
•Standby Battery Current: < 0.5mA.
•5V Sensor Supply Current: 40mA.
•Configurable battery voltage range, B+,18V-90V.
•Max output frequency can reach up to 255Hz.
•Standard Throttle Input: 0-5 Volts (3-wire resistive pot), 1-4 Volts (hall active throttle).
•Analog Brake and Throttle Input: 0-5 Volts. Producing 0-5V signal with 3-wire pot.
•Full Power Operating Temperature Range: 0℃ to 50 ℃ (controller case temperature).
•Operating Temperature Range:-30℃ to 90 ℃, 100℃ shutdown (controller case temperature).
Boost Current, 10 seconds: 520A.
•Motor Current Limit, 30 seconds: 480A.
•Motor Current Limit, continuous: 192A.
•Max Motor Current : Configurable.
