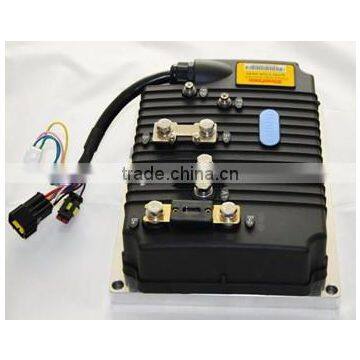

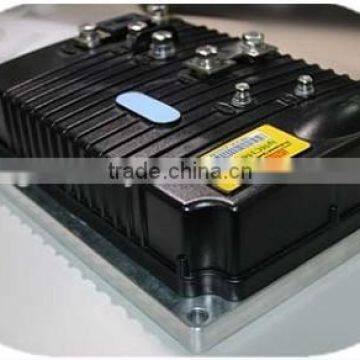

Help Center72V 400A Separately Excited Electronic Motor Speed Car Controller MC1568-7240
Related Products
-
60v 350A Low Voltage AC Asynchronous Motor ControllerNegotiableMOQ: 1 Piece -
24V-60V,240A, AC Induction Motor Speed ControllerNegotiableMOQ: 1 Piece
-
24V-72V, 50a, Programmable Mini Brushed ControllerNegotiableMOQ: 1 Piece
-
24v-48v,50a Programmable PM /Mini DC Brushed Motor ControllerNegotiableMOQ: 1 Piece
-
72v 400a ac Induction Motor Speed ControllerNegotiableMOQ: 1 Piece
MC1568 series Separately excited motor controller for motors provide smooth stepless speed control and reversing control, not only motor with series motors have comparable low speed high torque and high-speed performance, and can achieve the motor regenerative braking make brake energy efficient recovery, increasing driving range, improving vehicle Handling performance and safety performance.
It uses high-frequency electronic technology, controled by high-performance microprocessor , provides the motor with high efficiency, noiseless operation performance,reduce the loss of motor and batteries,through a handheld programmer or computer (USB interface),we can be intuitively and easily set various parameters in order to meet a variety of terrain on vehicle handling performance requirements
Application
MC1568 series controllers are widely used in electric tour buses, electric cars, truck electric trucks, electric boats and other vehicles
Feature Overview
1. high frequency power electronics technology can provide the motor with a smooth, noiseless and efficient sports performance
2 Adjustable parameters enable customers to optimize parameters and adjust the operation performance of vehicles
3.when the vehiclea are driving uphill, the unique anti-slip function improves the safety performance of vehicles
4.When the vehicle is traveling downhill, it has downhill speed limit function to prevent speeding vehicles and improve safety performance.
5.Brake energy efficient recovery.
6.optional Electromagnetic parking control
7. buzzer can prompt a variety of failures, to facilitate maintenance
8.comprehensive fault detection and protection capabilities
Ø Main contactor adhesion test drive overcurrent detection
Ø Accelerator fault detection
Ø Field coil open or short circuit detection and protection
Ø Armature coil open or short circuit detection and protection
Ø Overtemperature detection, and output power attenuation
Ø Armature driver circuit fault
9.Using the programmer can reduce the system's various operating parameters
Ø battery voltage
Ø accelerator input amplitude
Ø direction switch and the accelerator status
Ø excitation current and the armature current
Ø controller heatsink temperature values
10.Working temperature: -30’c--+50’c
9 Storage ambient temperature:-40’c---+80’c
10 protection class:IP66
11 Insulation class:1000V megger >20M
12. Weight: 3.7KG
