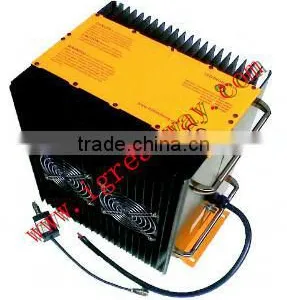

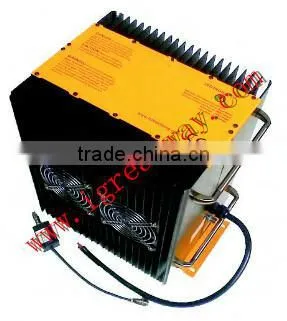

8kw HF/PFC l on-board ac dc charger for electric car
- 1000 Piece / Pieces per Month
- QINGDAO
- Credit Card PayPal
Product Details
Place of Origin: | Shandong, China | Brand Name: | GW | Model Number: | GWCH |
Warranty: | 1 Years |
Product Description
Specifications
ac dc charger ,1, CANbus 2.waterproof 3. HF PFC 4.input volt:AC85V-AC265V,5.on-board 6.LiFePO4,LiMn2O4LiNi2
700W HF PFC on-board battery charger
1.5KW HF PFC Lithium battery charger
2KW HF-PFC Lithium battery charger
3KW HF/PFC lithium battery charger
4kw HF.PFC Lithium battery charger
6KW HF/PFC Lithium battery charger
8KW HF/PFC Lithium battery charger
Feature Overview
The charger is applicable for various lithium batteries like LiFePO4, LiMn2O4 etc.,hemicolloid hemicolloid
It features light weight,small volume, stable performance, high efficiency and reliable security etc.,
The charger is widely used for battery-charging cycles in electric vehicles such as electric forklift, golf cars,
electric trucks, electric tour bus, electric yacht, cleaning machines, or Uninterruptible Power Supply (UPS),
solar energy, wind power dynamo and electric communication system on the railway etc.
Specifications
1. Thermal Self-Protection: When the internal temperature of the charger exceeds 75°C, the charging
current will reduce automatically. If it exceeds 85 °C , the charger will shutdown protectively. When the
internal emperature drops, it will resume charging automatically.
2. Short-circuit Protection: When the charger encounters unexpected short-circuit, it will automatically
stop to output. When fault removes, the charger will re-start in 10 seconds.
3. Reverse Connection Protection: When the battery is polarity reversed, the charger will cut off the
connection between the internal circuit and the battery, and refuses to start. It can avoid any destroy.
4. Input Low-voltage & Over-voltage Protection: When the AC input Voltage is lower than 85V or
higher than 265V, the charger will shutdown protectively and automatically resume working with the
voltage is normal again.
Type Table
Lead acid Battery charger | Lithium Battery charger | Output voltage Nominal | Output voltage Maximum | Output current Maximum |
GWCH-48-140 | GWCH-H66-140 | 48V | 66V | 140A |
GWCH-60-120 | GWCH-H82.6-120 | 60V | 82.6V | 120A |
GWCH-72-100 | GWCH-H96.2-100 | 72V | 96.2V | 100A |
GWCH-84-84 | GWCH-H112-84 | 84V | 112V | 84A |
GWCH-96-72 | GWCH-H130-72 | 96V | 130V | 72A |
GWCH-108-64 | GWCH-H144.7-64 | 108V | 144.7V | 64A |
GWCH-120-60 | GWCH-H168-60 | 120V | 168V | 60A |
GWCH-144-48 | GWCH-H192-48 | 144V | 192V | 48A |
GWCH-156-44 | GWCH-H208-44 | 156V | 208V | 44A |
GWCH-168-40 | GWCH-H233.3-40 | 168V | 233.3V | 40A |
GWCH-180-36 | GWCH-H243-36 | 180V | 243V | 36A |
GWCH-192-36 | GWCH-H258-36 | 192V | 258V | 36A |
GWCH-216-32 | GWCH-H289.5-32 | 216V | 289.5V | 32A |
GWCH-240-28.8 | GWCH-H337-28.8 | 240V | 337V | 28.8A |
GWCH-288-24 | GWCH-H389-24 | 288V | 389V | 24A |
GWCH-312-22 | GWCH-H417-22 | 312V | 417V | 22A |
