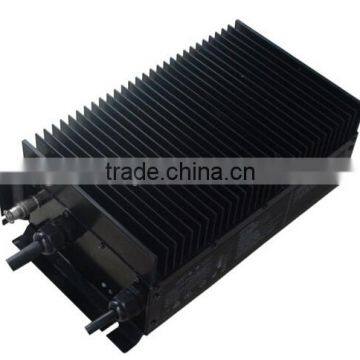

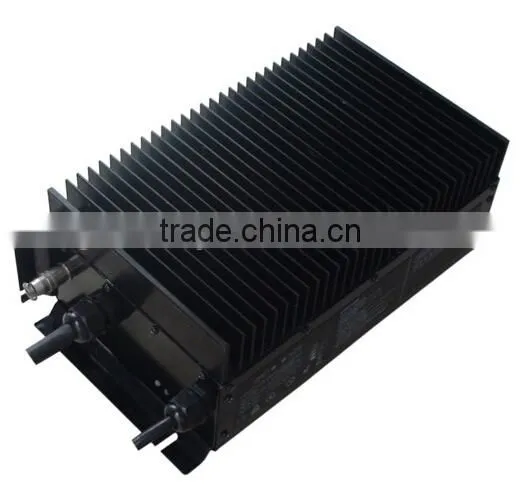

Help Center1.5kw/2kw/3kw/4kw/6kw/8kw HF/PFC On-board Charger for Electric Car
Related Products
-
1.5kw/2kw/3kw/4kw/6kw/8kw Lithium Cell On-board Battery Charger for Electric CarNegotiableMOQ: 1 Piece -
On-board Li Battery Charger With CAN BUS CommunicationNegotiableMOQ: 1 Piece
-
PFC Battery Charger With CAN BUS CommunicationNegotiableMOQ: 1 Piece
-
1.5kw/2kw/3kw/4kw/6kw/8kw LFP Battery Charger for Electric CarNegotiableMOQ: 1 Piece
-
6000w HF/PFC Full Closed Battery ChargerNegotiableMOQ: 1 Piece
Specifications
HF/PFC charger ,adopts advanced high frequency switching mode power supply technology2.light weight, compact
HWC5 series totally enclosed charger protects the function to be complete, efficiency high, reliable. Embedded CPU precise examination battery 's each condition, the advanced intelligent multistage type charge pattern maximum limit reduces the battery charging overheated dehydration phenomenon, and has the temperature compensation function and the balanced maintenance function. The temperature compensation had guaranteed the battery in each kind of ambient temperature, could cause the battery charging-up "to maintain quality and quantity"completes, avoids the battery "ufficiently excessively?" "owing sufficiently"the phenomenon which appeared because of ambient temperature's influence. The balanced maintenance may prevent, because the individual battery falls behind the entire battery service life reduction phenomenon which or the damage causes, lengthened battery's service life greatly. It used in fields of electric golf car, electric car,cleaning truck, etc.
Technical Parameter:
Input: AC 220V±15%
Output Voltage: type table
Output Current: type table
Effciency: 88%
Shock and Vibration: SAEJ1378
Operating Temp: -10 —+40
Storagting Temp: -40° —+55
Weight: 9.3kg
Power: 3000W
Support battery: lead-acid cell,Lithium Battery
Protection Indications:
Battery reversed connect protection
Automatically turn off when battery is full
Timed power off
Over temperature protection
Charge process shown LED
The charge process controlled by CPU
Temperature compensation and balanced maintenanc
| type | battery voltage | charge current |
| HWC5-4830 | 48V | 30A |
| HWC5-6025 | 60V | 25A |
| HWC5-6030 | 60V | 30A |
| HWC5-7225 | 72V | 25A |
HWC5-9615 |
96V | 15A |
