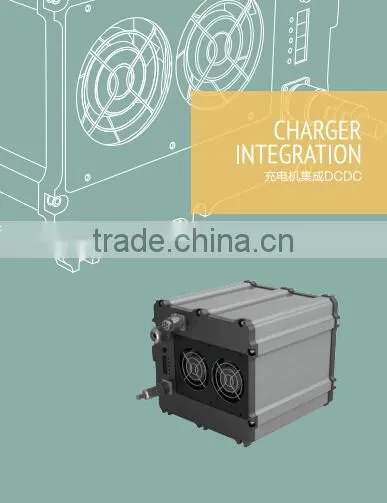

Help CenterOBC Integration DCDC
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
GW
Model Number:
GWCH
Use:
Other, all kinds of EV, PHEV
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGAO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
On-board Charger Integrated DC-DC ConverterNegotiableMOQ: 1 Piece -
6KW 417V 18A HF-PFC On-board Lithium Battery Charger CH417-18NegotiableMOQ: 1 Piece
-
380v ac Three-phase Input Frequency Intelligent Battery ChargerNegotiableMOQ: 1 Piece
-
700w/1.5kw/2kw/3kw/4kw/6kw/8kw/10kw HF/PFC On-board Lithium/lead Acid Battery Charger for Electric CarNegotiableMOQ: 1 Piece
-
Waterproof Intelligent PF/PFC on Board Lithium Battery Charger for Electric CarNegotiableMOQ: 1 Piece
Brand Name
GW
Model Number
GWCH
Use
Other, all kinds of EV, PHEV
Type
Electric
Place of Origin
Shandong, China
Applicable for all kinds of EV, PHEV, etc
Applicable for lithium ion battery & lithium manganese battery charge
Cooling system: air cool
Control mode: CAN bus
OBC-DCDC integrated application
Model |
GW-FEI018-C-33 |
||
Specification | |||
| 1 | DCDC | Power | 1.8KW |
| 2 | Input voltage range | DC 200V~420V | |
| 3 | Rated input current | 130A | |
| 4 | Rated input voltage | DC 13.7V±0.3V | |
| 5 | Voltage control accuracy | <1% | |
| 6 | Current control accuracy | <2% | |
| 7 | Overall efficiency | ≥96% | |
| 8 | Operation temperature range | -40℃~85℃ | |
| 9 | Storage temperature range | -40℃~65℃ | |
| 10 | Relative humidity | 5%~95% no condensation | |
| 1 | OBC | Input power | 3.3KW |
| 2 | Input Voltage | 220V±15% | |
| 3 | Input Frequency | 45-65HZ | |
| 4 | Max Currenct | 16A(220V) | |
| 5 | Output Voltage | 336V | |
| 6 | Output Voltage Range | 200V-420V | |
| 7 | Voltage Ripple Factor | ≤±5% | |
| 8 | Max Output Current | 9A | |
| 9 | Power Factor | ≥99% | |
| 10 | Overall Unit Peak Efficiency | 94.00% | |
| 11 | Starting Current Impact | <24A | |
