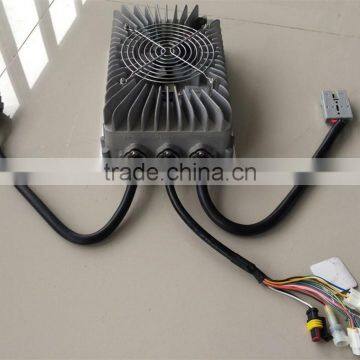

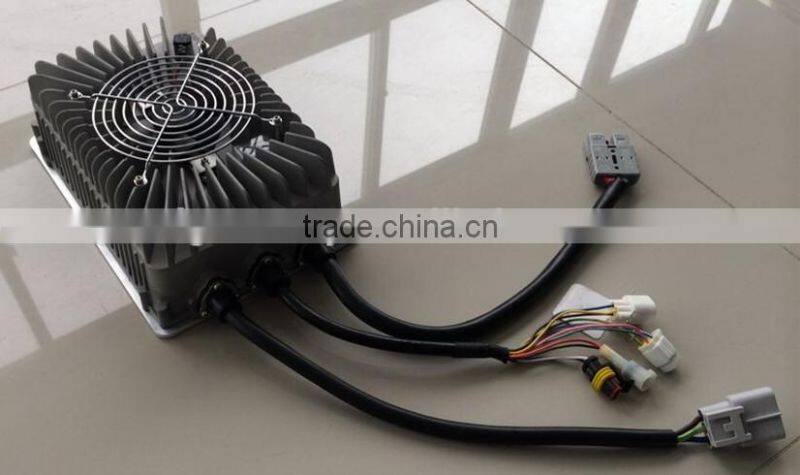

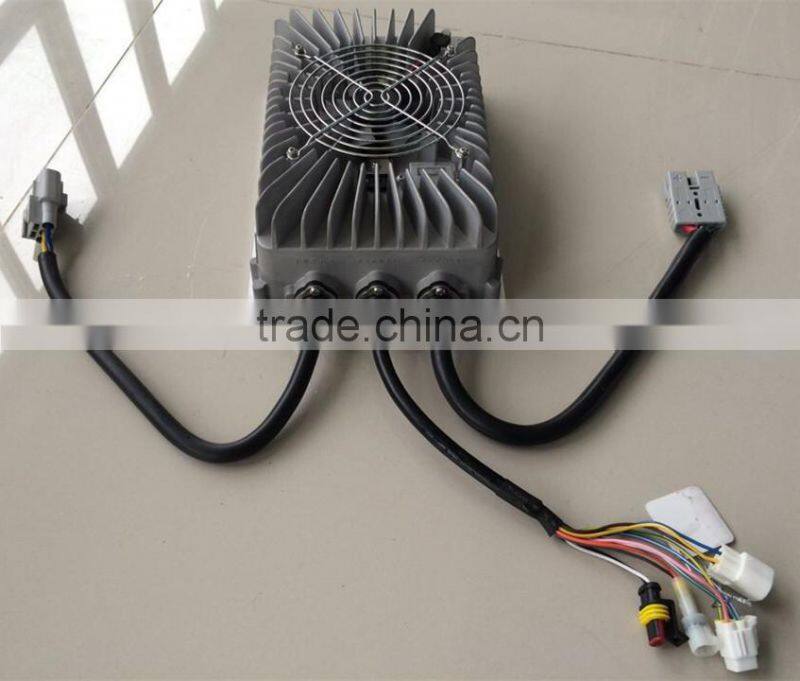

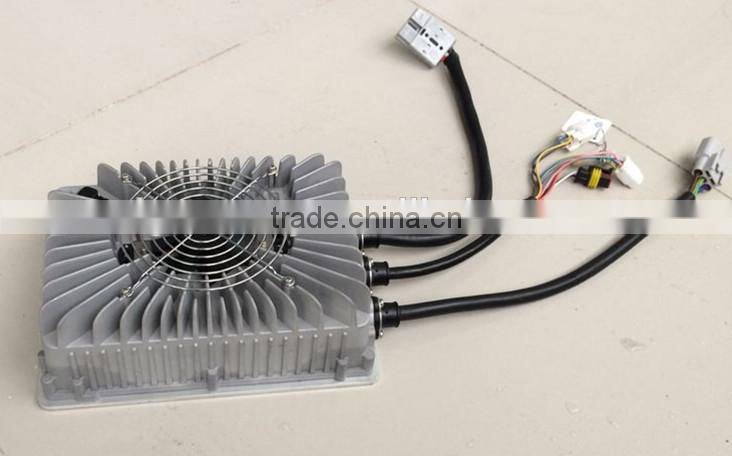

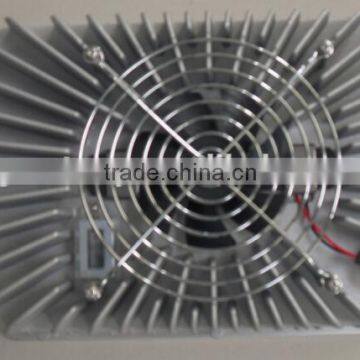

36v 30a on-board VRLA battery charger



    36v 30a on-board VRLA battery charger



36v 30a on-board VRLA battery charger



36v 30a on-board VRLA battery charger









 Product Overview



CH4200 series high efficiency intelligent charger is designed to charge power batteries of electric vehicles. This series of products adopt the most advanced technologies such as LLC resonant, active power factor correction, microcomputer measurement and control, digital adjusting, fully sealed waterproof technology and so on. Its features include: wide input voltage range adapted to global general voltage; High input power factor that significantly reduces the input current as well as heat generated by input cables, so the charger can be safely used in family; Low harmonic current that reduces interference to other electric equipment. Full range soft switching is realized to achieve high conversion efficiency and slight electromagnetic interference, the charger is more energy-saving and money-saving to use; the charger is designed according to IP66 protection grade and achieved high waterproof performance. Another feature includes small size, light weight, quiet operation, beautiful appearance, simple installation, operation and maintenance and so on.



The charger adopts microcomputer measurement and control technology, embedded CPU can accurately detect various states of battery. Advanced multi-stage charging mode can prevent the battery from be over-charged and over-discharged, minimize overheating and water loss phenomenon caused by over-charge, slow down polar plate vulcanization phenomenon caused by over-discharge, extend the service life of batteries. The charger will stop automatically after fully charged.

The charger has functions of temperature compens



2.Technical Specifications

3.

Input voltage range:         85~265Vac (Note: When the Input voltage is lower than 185Vac, the output power will be limited to 1.0KW)

Input Current:               ≤ 10A

Power Factor:               ≥ 0.99 @ 220Vac input, full power output;

Total Harmonic Current:       ≤ 5% @ 220Vac input, full power output;

Nominal output voltage (Un):   See Model Description

Maxim output voltage:         140%Un

Rated output current (Ir):       See Model Description

Voltage regulation accuracy:    ≤ 0.5%

Current regulation accuracy:    ≤ 2%

Conversion efficiency:         ≥ 95% @ 220Vac input, full power output

Protection class:              IP66

Audible Noise:               ≤ 40dB

Seismic rating:               Designed according to IEC60335-2-29-2004-Part.21

Working temperature:        -25~55℃

Storage temperature:          - 40~80℃

Recognition certificates:       CE SGS













4.Type Table

Model No.

Rated output volt

Rated output current



CH4200-7215

72V

15A

CH4200-6020

60V

20A

CH4200-4825

48V

25A

CH4200-3630

36V

30A

CH4200-2430

24V

30A

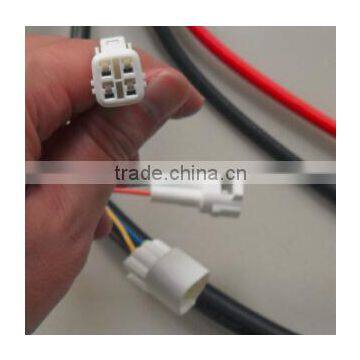

4.Input and output interface



Input Cables

Terminal Model

DJ7031-4.8-11



Direction of view: form the cables to terminal.

Terminal Model for matching

DJ7031-4.8-21



Needle No.

Wire Color

Wire core diameter

Description

1#

brown

2.5 mm2

L——Live wire

2#

blue

2.5 mm2

N——Neutral wire

3#

Yellow and green

2.5 mm2

PE——Protective grounding wire

Output Cables

Terminal Model

SB50



Needle No.

Wire Color

Wire core diameter

Description

+

red

6 mm2

Output positive pole

-

black

6 mm2

Output negative pole

Signal Cables

Needle No.

Wire Color

Wire core diameter

Description

Needle No.

1#

brown







2#

Blue

DJ7031Y-2.3-21

external LED indicator interface

DJ7031Y-2.3-11

3#

yellow







4#

purple

DJ7021-1.5-21

Battery Temperature sensor interface

DJ7021-1.5-11

5#

white

6#

pink

DJ7043-2-21

Serial communication

interface

DJ7043-2-11

7#

Yellow and  green

8#

Blue and white

9#

Green and white

10#

orange

DJ7021-2-11

Forbidden signal interface
(normal close)

DJ7021-2-21

11#

grey

Wire core diameter

0.5 mm2 for all Signal wires

Signal Cables Terminal Diagram
