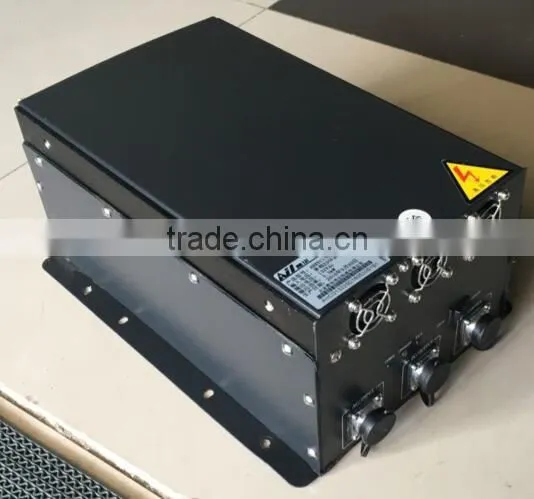

Help Center2.5 kw on Board Battery Charger With12v Auxiliary Output Power
Related Products
-
240W 12v/24v/36v/48v/ 60v/72V Portable Lead Acid/li Ion/lithium Polymer Battery ChargerNegotiableMOQ: 1 Piece -
1.8 kw Li-ion/LiFePO4/Li-poly/LiMnO4 Battery Charger for Electric Car 72v 20aNegotiableMOQ: 1 Piece
-
1.8 kw 99v 25a Lithium Battery Charger With CANBUS Communication or Enable ControlNegotiableMOQ: 1 Piece
-
1.8 kw Li-ion/LiFePO4/Li-poly/LiMnO4 Battery Charger With CANBUS Communication or Enable ControlNegotiableMOQ: 1 Piece
-
6.6KW HF PFC 192V 36A on Board Battery Charger With Auxiliary Output 12v 5aNegotiableMOQ: 1 Piece
AHEVC Series on-board charger absorb the advanced control technology is located, it is a practical, full-featured, high-reliability products. Light weight, volume
Small, charging stability, high efficiency, seismic capability features. Short circuit, reverse polarity, overheating, overload protection. Reasonable charge curve and control technology to control the charging process to ensure that
Sufficient battery power and extend battery life.
1, for battery type: lithium iron phosphate batteries, lithium manganese batteries, three batteries, nickel-metal hydride batteries
2, operating temperature: -30 ℃ ~ 80 ℃
3, the protection function: over-voltage, over current, reverse polarity, short circuit, over temperature
4, power factor: 0.99, harmonic distortion rate: 3%
5, means of communication: CAN 2.0B
6, reference standards: QCT 895-2011 "Electric Vehicle Conductive car charger"
Charging model |
The maximum output voltage |
The maximum output current |
AHEVC8440C |
84V |
40A |
AHEVC9635C |
96V |
35A |
AHEVC11030C |
110V |
30A |
AHEVC14423C |
144V |
23A |
AHEVC16820C |
168V |
20A |
AHEVC19217C |
192V |
17A |
AHEVC22015C |
220V |
15A |
AHEVC25813C |
258V |
13A |
AHEVC29211C |
292V |
11A |
AHEVC33610C |
336V |
10A |
AHEVC36509C |
365V |
9A |
AHEVC39008C |
390V |
8.5A |
AHEVC40008C |
400V |
8.3A |
Design reference standard
QCT 895-2011 Electric Vehicle Conductive Car Charger
QC / T Electric Vehicle Conductive Charge Car Technical conditions
SAE J1378 SAE J1939
3., technical indicators:
1) the input voltage: 85 ~ 265Vac
2) input frequency: 50 ~ 60Hz
3)starting inrush current: <10A
4) the input power factor: 0.99
5)harmonic distortion (THD): ≤5%
6) full load efficiency: ≥0.93
7)means of communication: CAN 2.0B
8)the auxiliary power supply: 12Vdc / 150W
9)protection class: IP65
10)Altitude: ≤3000m
11) operating temperature: -30 ℃ ~ 75 ℃
12) over-temperature protection: when the temperature is higher than 45 ℃ , the fan starts, the fan stops it is lower than 45 ℃, when it is higher than 75 ℃ ,the protection is shutdown, it can be Automatically restored when the temperature is less than 75 ℃
13)short-circuit protection: output short circuit, output is 0, after the fault is removed,it can be automatically restored
14)reverse polarity protection: if The output terminal is reversed, the charger does not start,
the fault is removed,it can be automatically restored
15)overvoltage protection: according to the highest value of the CAN settings, over-current protection: according to the highest value of the CAN settings, voltage protection: 50V

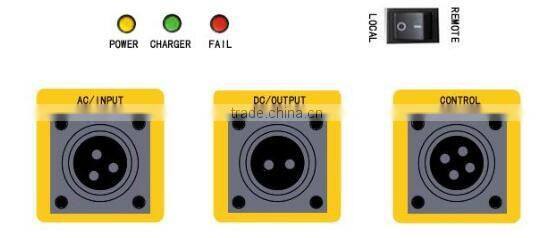

Panel schematic instructions
Status Indication Description
Function Name |
Description |
Functional specifications |
CHARGER |
Green indicator Light |
When the charger has output current, the lamp lights up, it indicates the charger is working |
POWER |
Yellow indicator light |
When the AC power is turned on correctly. The indicator Lights up, this indicates that the AC input is connected |
FAIL |
RED indicator light |
when the output appears reverse, overvoltage over-current, short circuit, over-temperature fault etc. The indicator lights up,it is fault indicator |
Remote/Local |
Remote control / Local control switch |
REMOTE control work,it need to connect the battery management system (BMS), the charger operating status is by the BMS control --------------------------------------------------- LOCAL: Indicates Local control work, when there is no battery management system (BMS), the charger will work in accordance with the internal set procedures
|
our company specialized in the manufacture and export of electric system products , including,pure sine wave power inverter, motor controller,charger,DC-DC converter,electronic throttle,battery discharge indicator,hour tachometer ,air conditioning system,electric system solution .etc
